Installation Procedure

  1. Slide the seat back frame down into the recliner and align the fasteners holes.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the four seat back frame fasteners.

    Tighten

    Tighten the seat back frame fasteners to 30 N.m (22 lb ft).

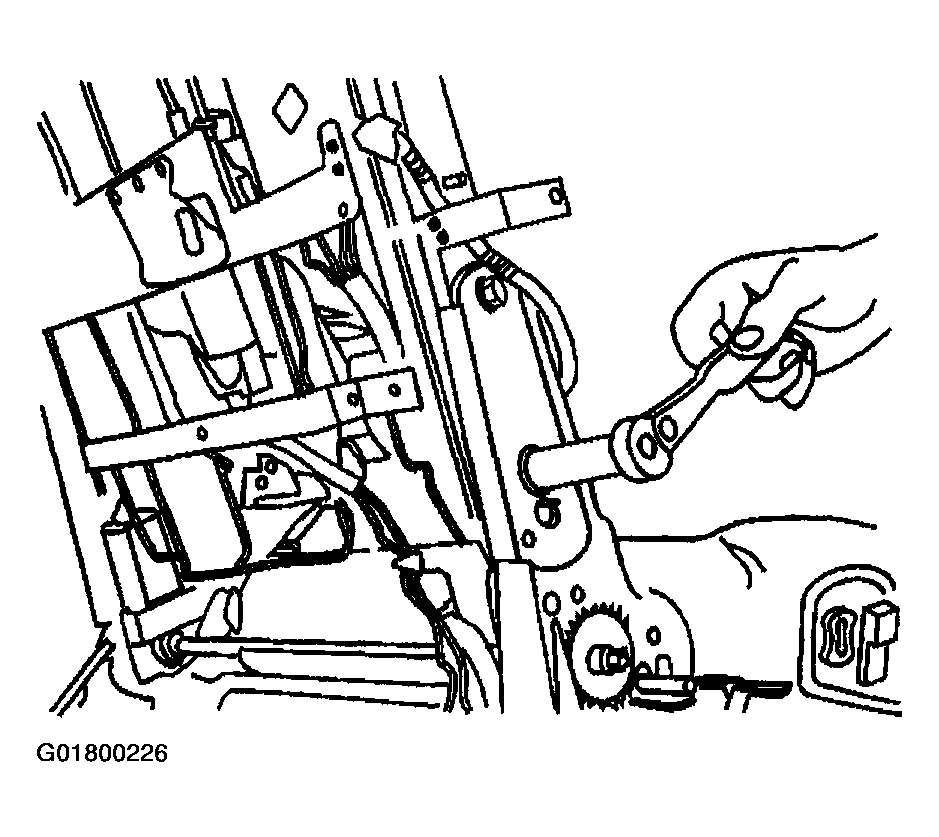

    Fig 1: Installing Seat Back Frame Fasteners
    G01800226Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  4. Route and connect the electrical connectors for the heated seats and the air lines for the lumbar, if equipped, to the seat back.
  5. Install the front seat. Refer to Seat Replacement - Bucket .

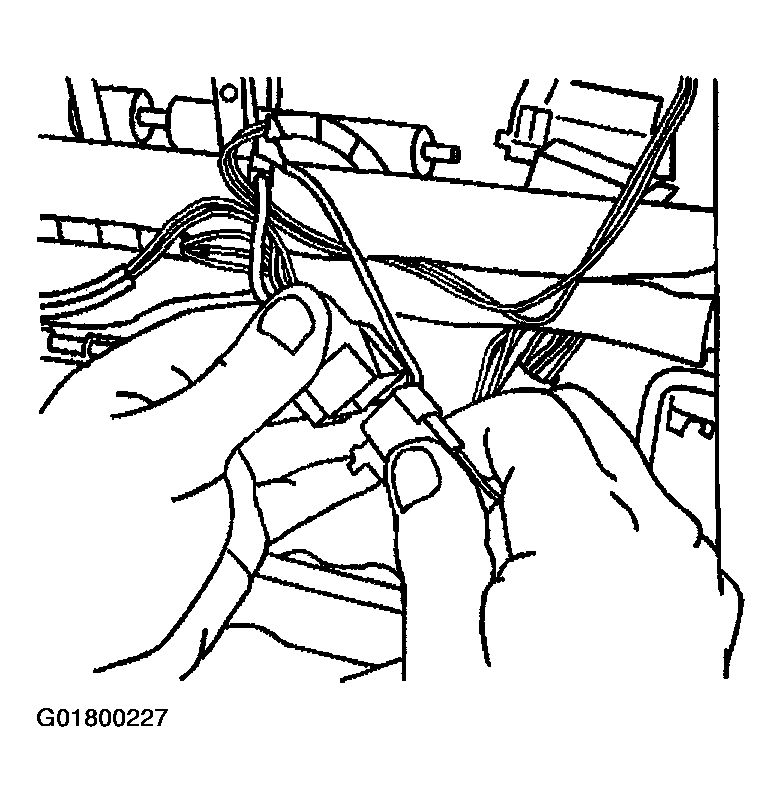

    Fig 2: Routing & Connecting Electrical Connectors
    G01800227Courtesy of GENERAL MOTORS CORP.
