Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Remove the front bucket seat. Refer to Seat Replacement - Bucket .
  2. Remove the seat back trim cover. Refer to Seat Back Trim Replacement - Front .
  3. Remove the push pin retainer (1) from the edge of the lower seat belt retractor trim cover (2).
  4. Release the rear of the lower seat belt retractor trim cover (2), and remove the trim cover (2).

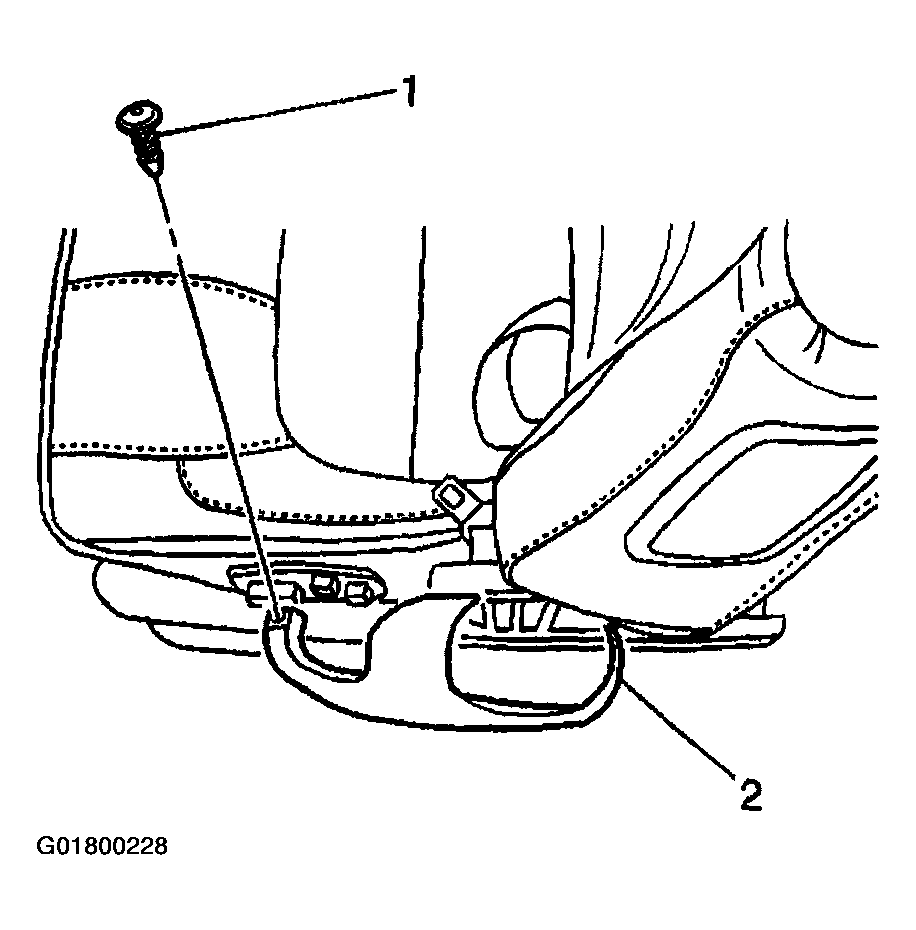

    Fig 1: Removing Push Pin Retainer & Lower Seat Belt Retractor Trim Cover
    G01800228Courtesy of GENERAL MOTORS CORP.
  5. Remove the retainer clip from the recliner motor end of the recliner shaft.

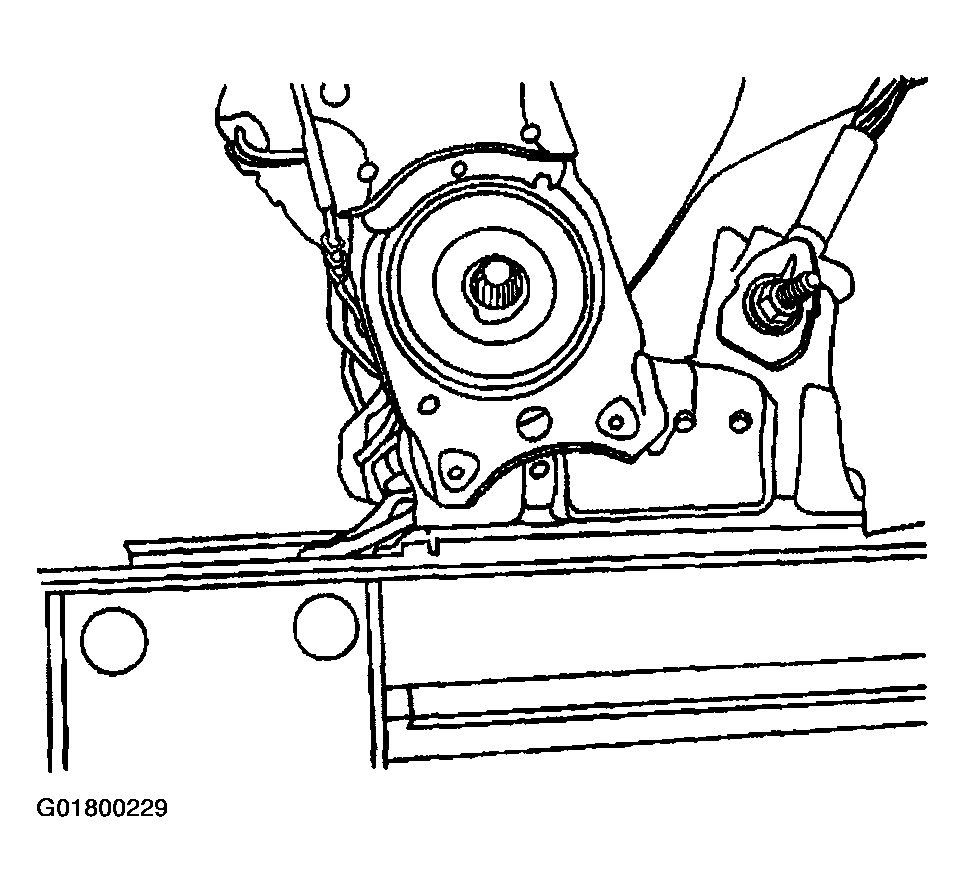

    Fig 2: Removing Retainer Clip From Recliner Motor End Of Shaft
    G01800229Courtesy of GENERAL MOTORS CORP.
  6. Slide the recliner shaft out of the recliner motor sensor (outboard side) far enough to clear the sensor.
  7. Disconnect the recliner sensor electrical connector from beneath the seat.
  8. Release the recliner sensor from the recliner motor.

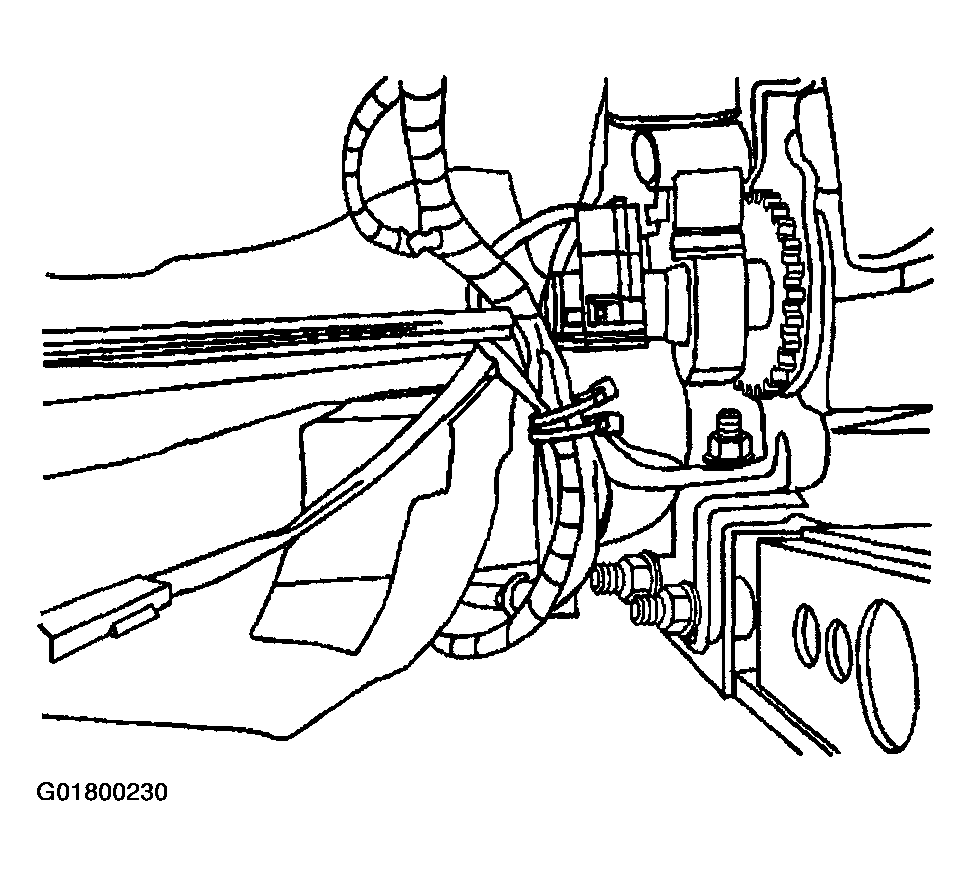

    Fig 3: Disconnecting Recliner Sensor
    G01800230Courtesy of GENERAL MOTORS CORP.
