Installation Procedure

  1. Install the lumbar switch into the switch mounting bracket.
  2. Connect the electrical connectors to the seat switches.

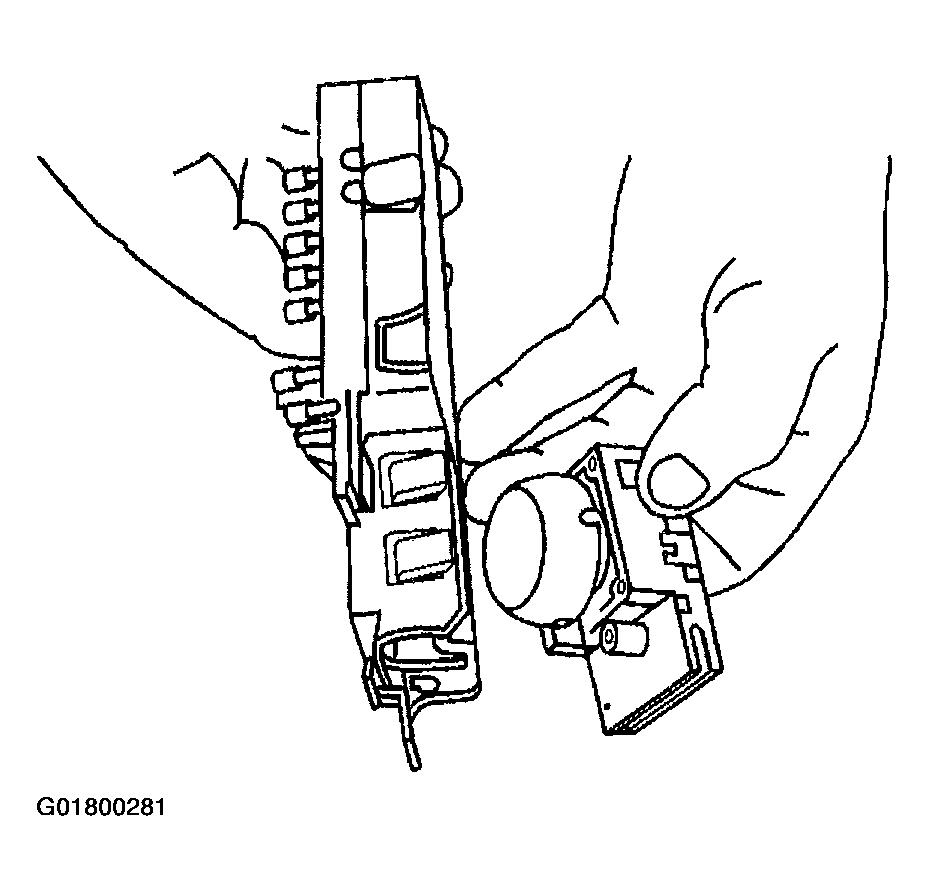

    Fig 1: Installing Lumbar Switch Into Switch Mounting Bracket
    G01800281Courtesy of GENERAL MOTORS CORP.
  3. Slide the seat switch and bracket assembly onto the seat bottom.
  4. Install the seat switch bracket retainers into the seat bottom.

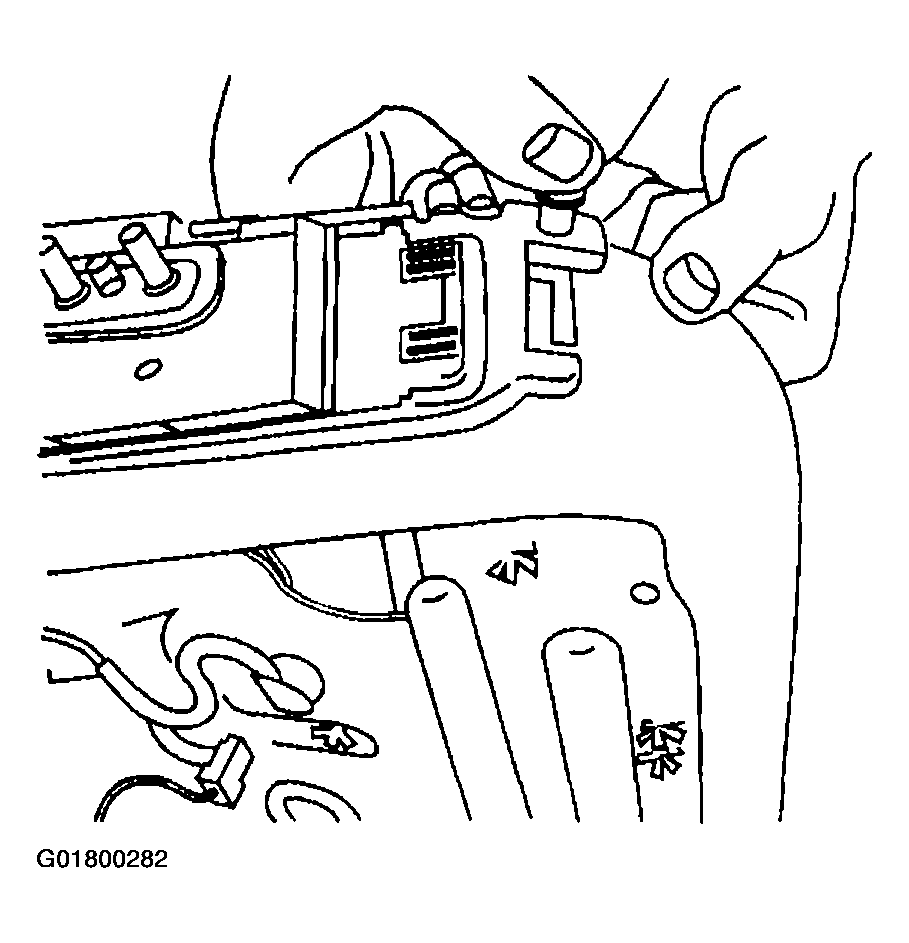

    Fig 2: Installing Seat Switch Bracket Retainers Into Seat Bottom
    G01800282Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat cover back down over the switch and align holes in the cover to the switch assembly.
  6. Install the seat cover J channels.
  7. Install the seat switch trim plate.

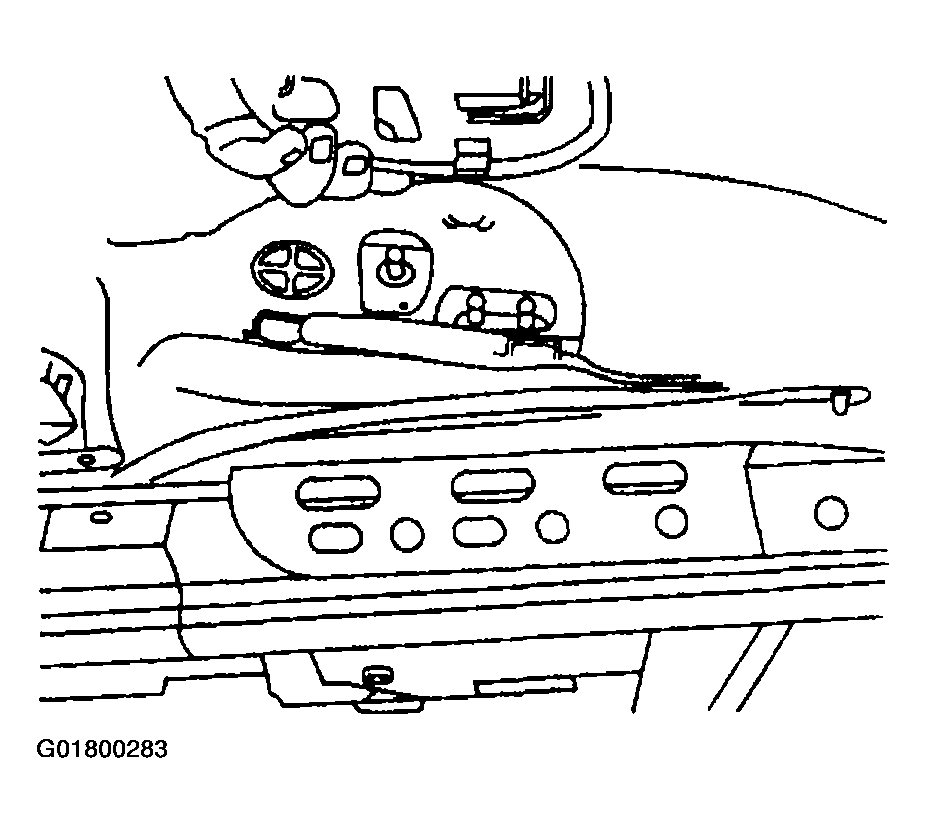

    Fig 3: Installing Seat Switch Trim Plate
    G01800283Courtesy of GENERAL MOTORS CORP.
  8. Install the knobs to the switches.

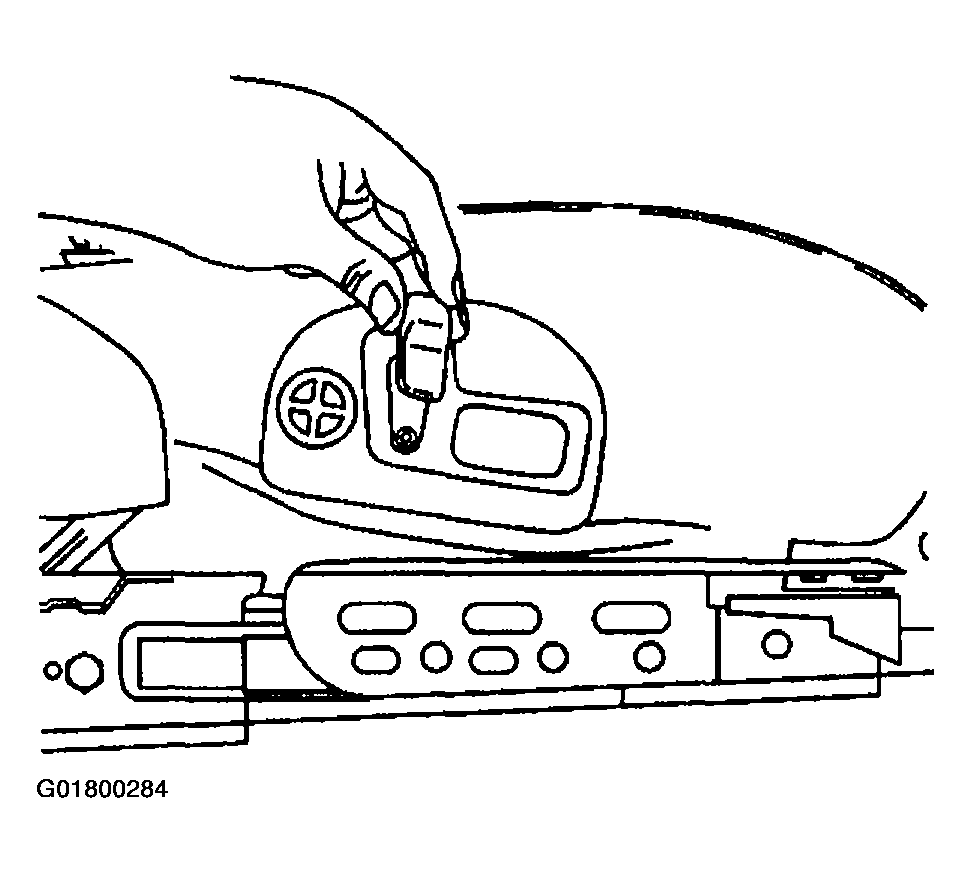

    Fig 4: Installing Knobs To Switches
    G01800284Courtesy of GENERAL MOTORS CORP.
  9. Align the front seat cushion and frame assembly with the seat adjuster.
  10. Connect the front heated seat cushion electrical connectors and the lumbar air lines, if equipped.
  11. Engage the rear of the seat cushion frame to the seat adjuster, push down on the front of the cushion in order to engage the studs in the seat adjuster.
    NOTE: Refer to FASTENER NOTICE .
  12. Install the seat cushion fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

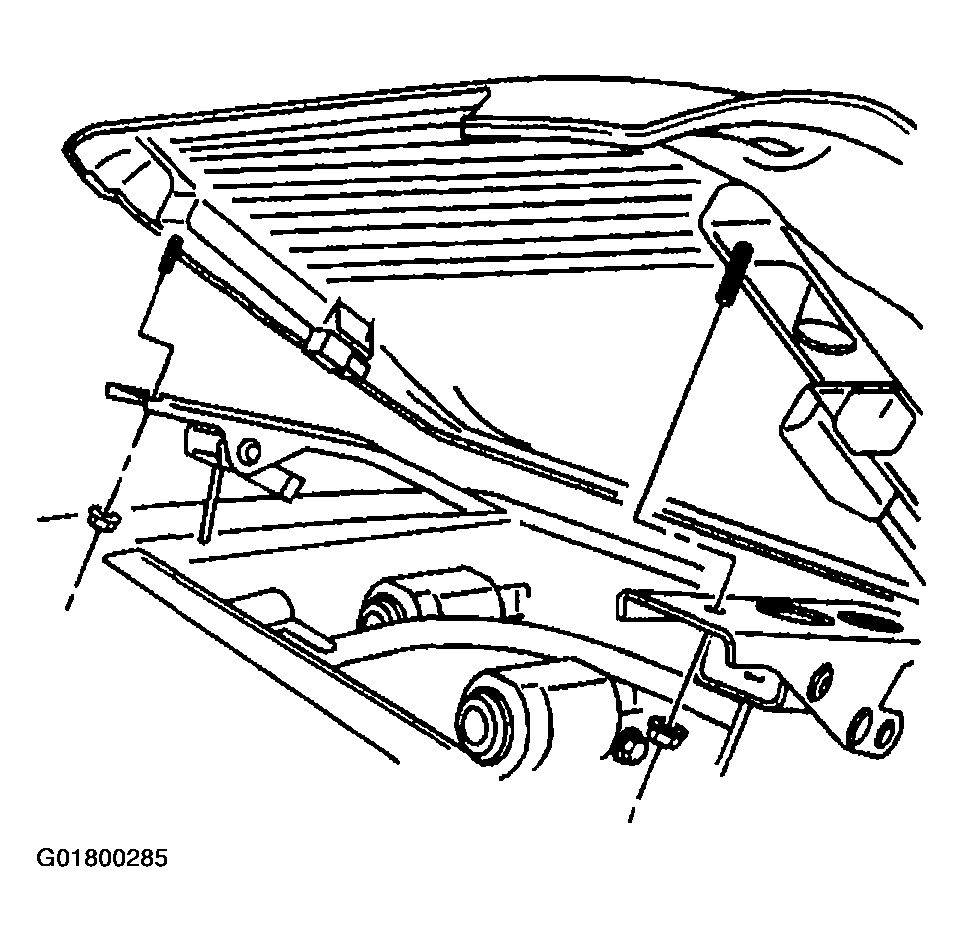

    Fig 5: Installing Seat Cushion Fasteners
    G01800285Courtesy of GENERAL MOTORS CORP.
