STOPLAMP Switch: Installation
- Connect the stoplamp/A/T shift interlock control switch electrical connectors to the stoplamp switch. Install the stoplamp switch into the retainer. Press the switch into the retainer until the switch plunger is fully depressed into the switch barrel.

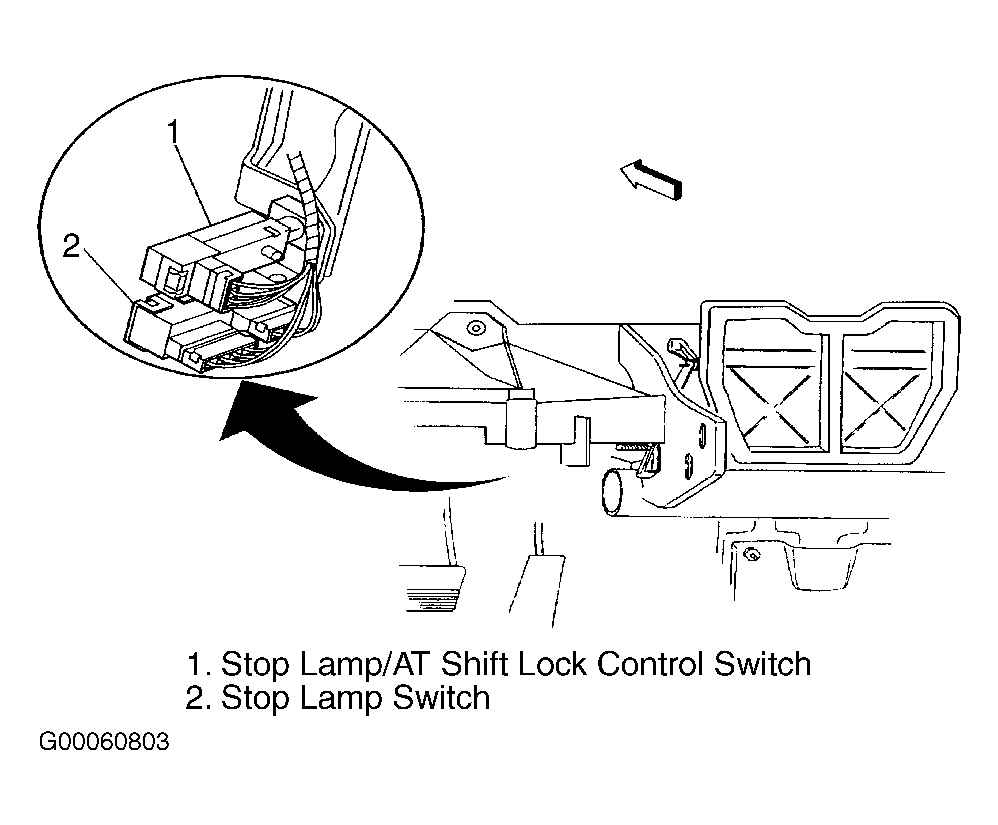

- Rotate the switch clockwise until travel has stopped and the switch locks fully into position. See Fig 1 . Install sound insulator.
