Removal Procedure

CAUTION: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs

Remove the strut from the vehicle. Refer to Strut Assembly Replacement (FE1, FE3) or Strut Assembly Replacement (FE7) .

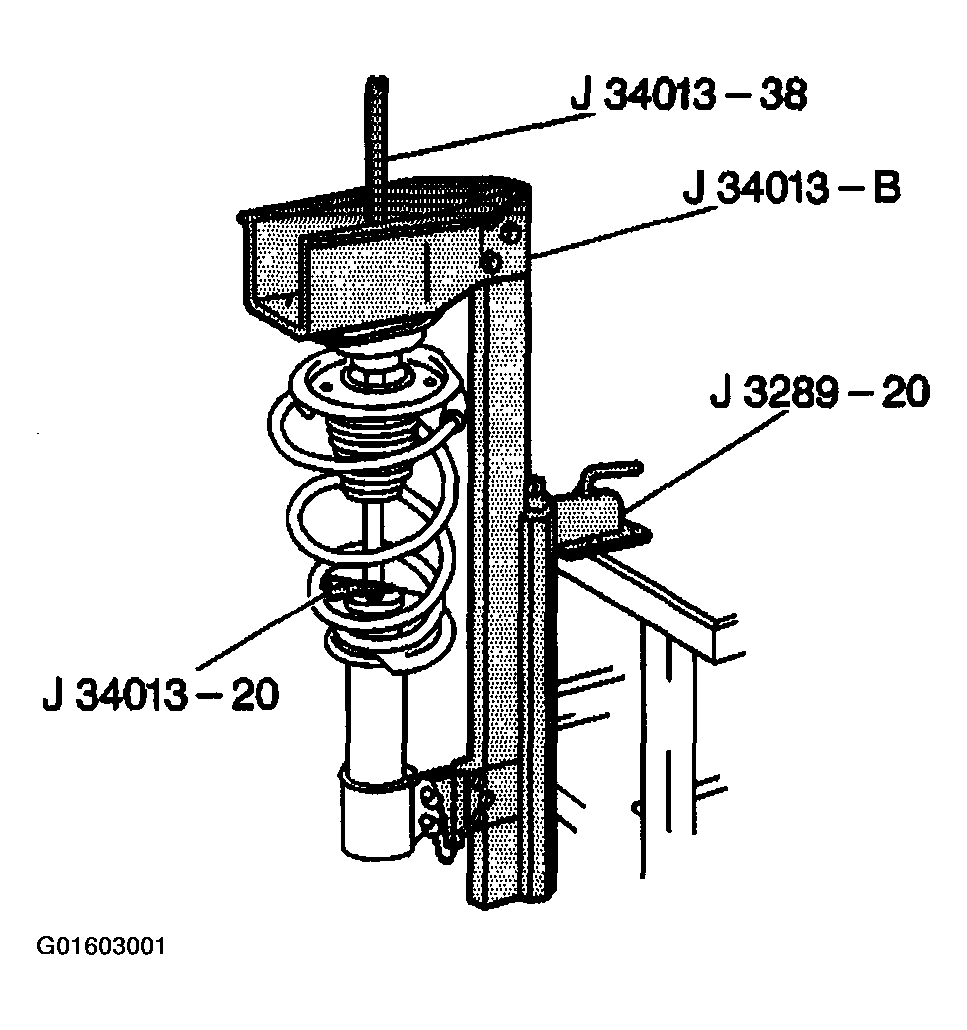

Install the strut assembly in the strut compressor.
Turn the spring compressor screw until the spring compresses slightly.

Fig 1: Installing Strut Assembly In Strut Compressor
Courtesy of GENERAL MOTORS CORP.

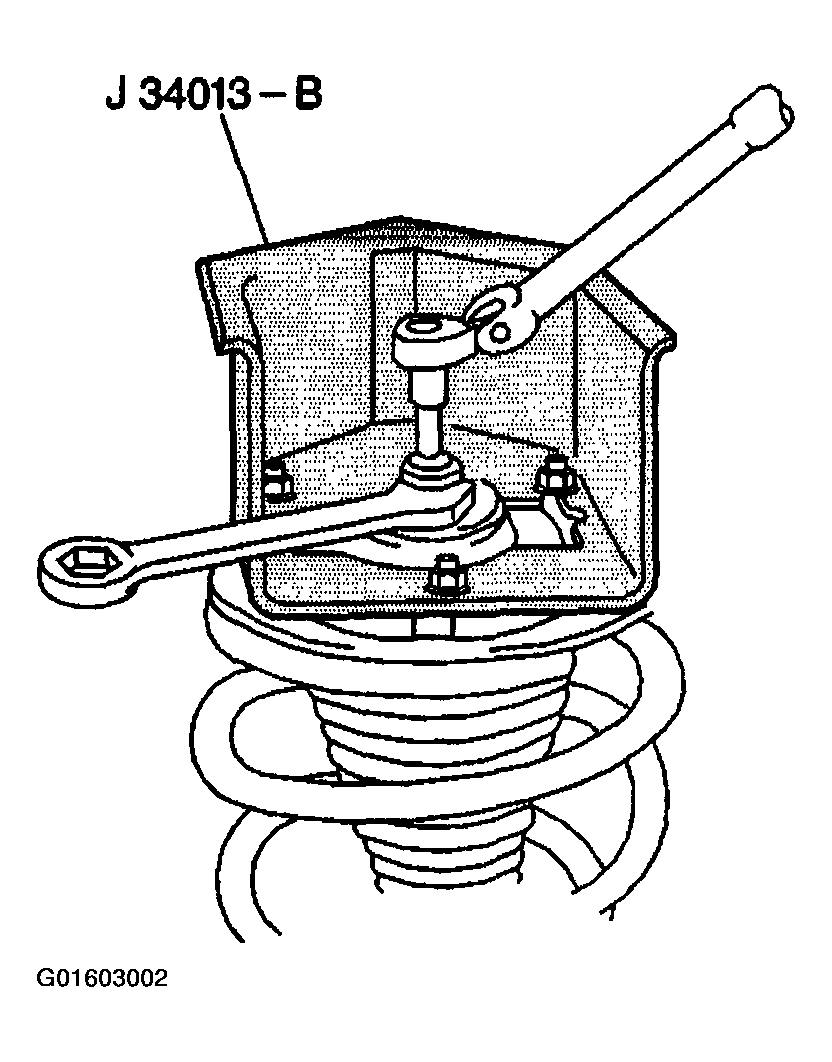

Hold the strut shaft and remove the strut shaft nut.

Fig 2: Holding Strut Shaft & Removing Strut Shaft Nut
Courtesy of GENERAL MOTORS CORP.

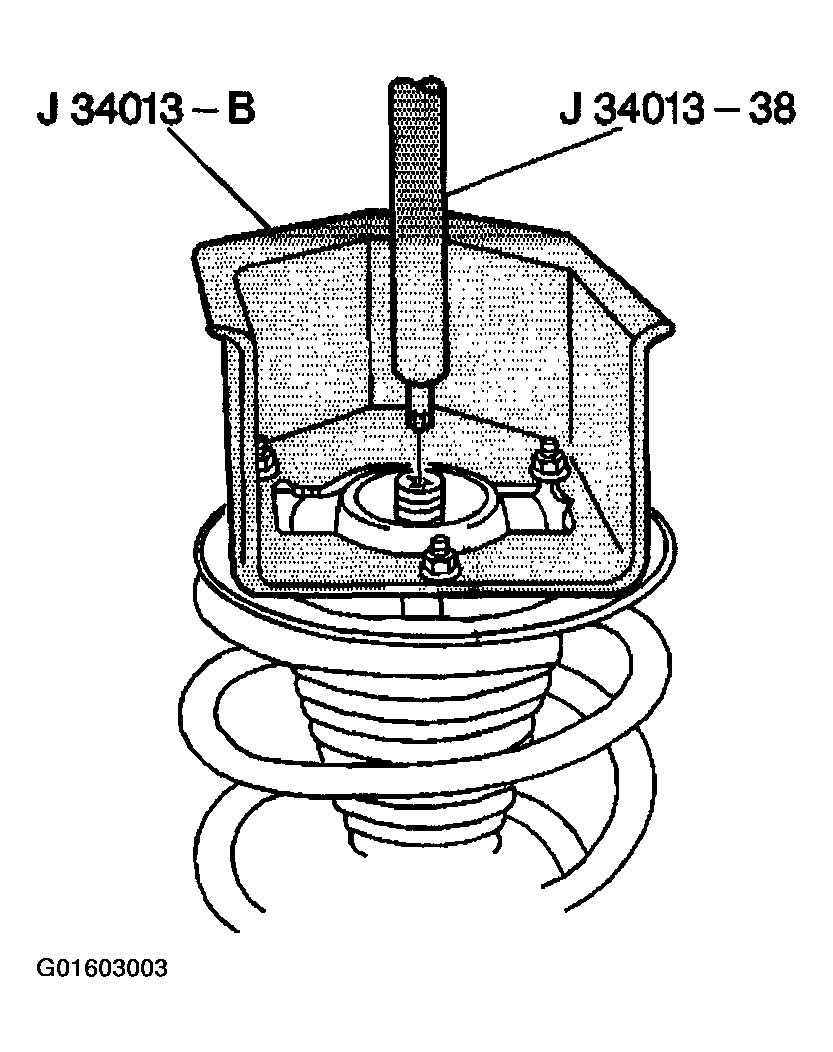

Install J 34013-38 to help guide the strut shaft out of the strut assembly.
Loosen the compressor screw while guiding the strut shaft out.
Continue to loosen the compressor screw until the strut and spring can be removed.

Fig 3: Removing Strut & Spring
Courtesy of GENERAL MOTORS CORP.
