Steering Controls Connector End Views

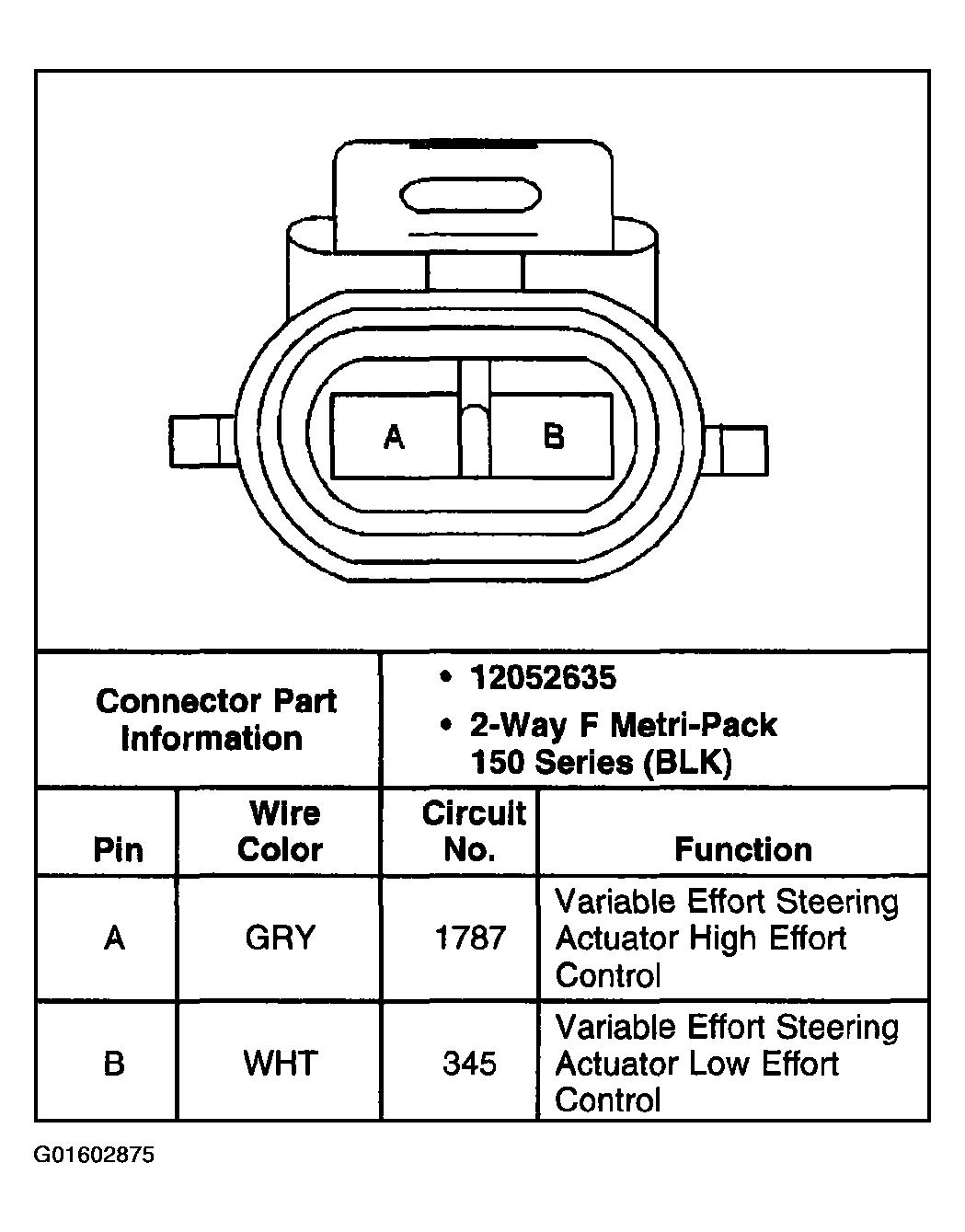

Fig 1: Variable Effort Steering Actuator Connector End View

G01602875

Courtesy of GENERAL MOTORS CORP.
