Seat Belt Connector End Views

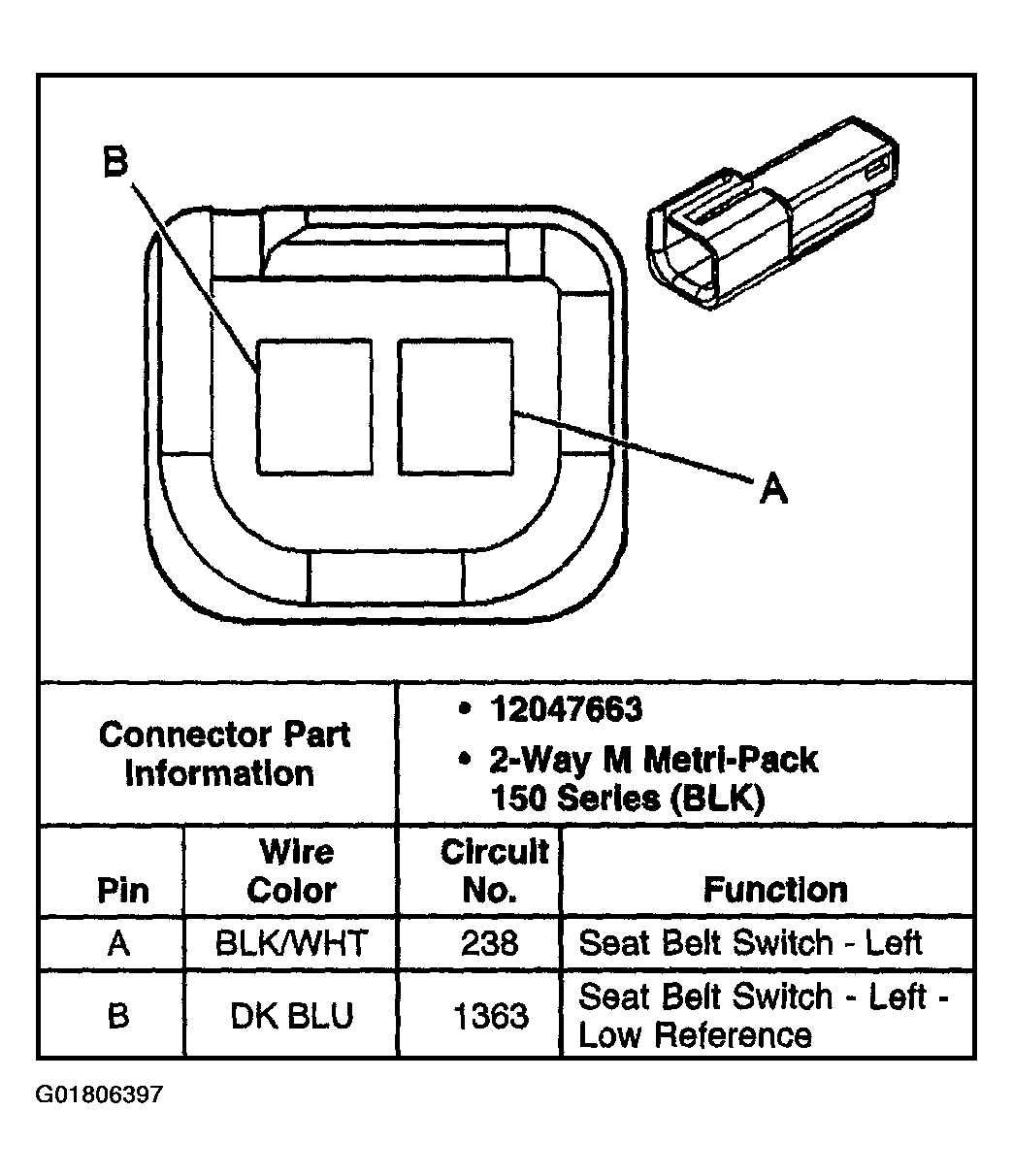

Fig 1: Seat Belt Switch- Driver
G01806397Courtesy of GENERAL MOTORS CORP.
Fig 2: Seat Belt Tower Motor- Driver
G01806398Courtesy of GENERAL MOTORS CORP.
Fig 3: Seat Belt Tower Motor - Front Passenger
G01806399Courtesy of GENERAL MOTORS CORP.

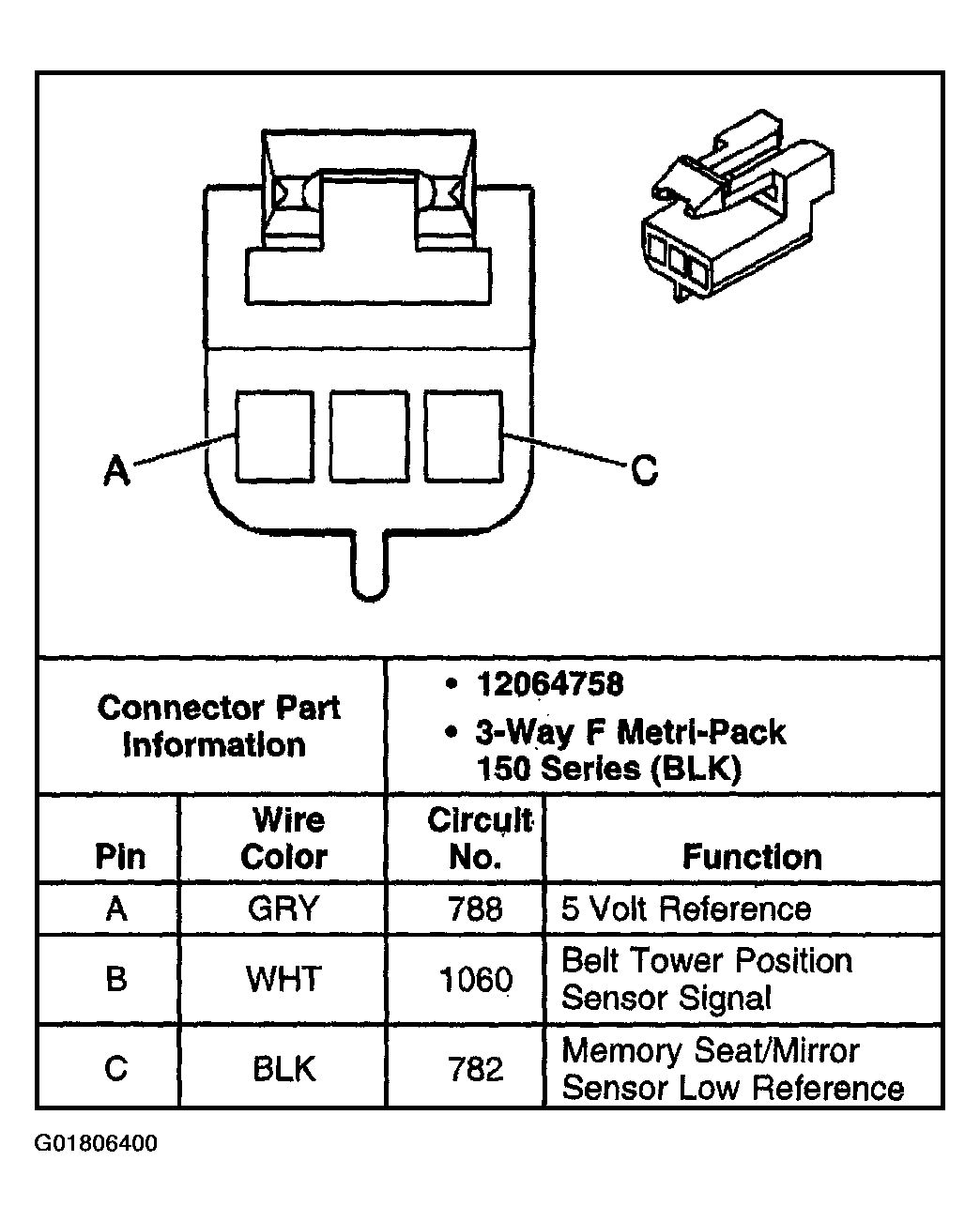

Fig 4: Seat Belt Tower Position Sensor- Driver
G01806400Courtesy of GENERAL MOTORS CORP.
