Seat Belt Component Views

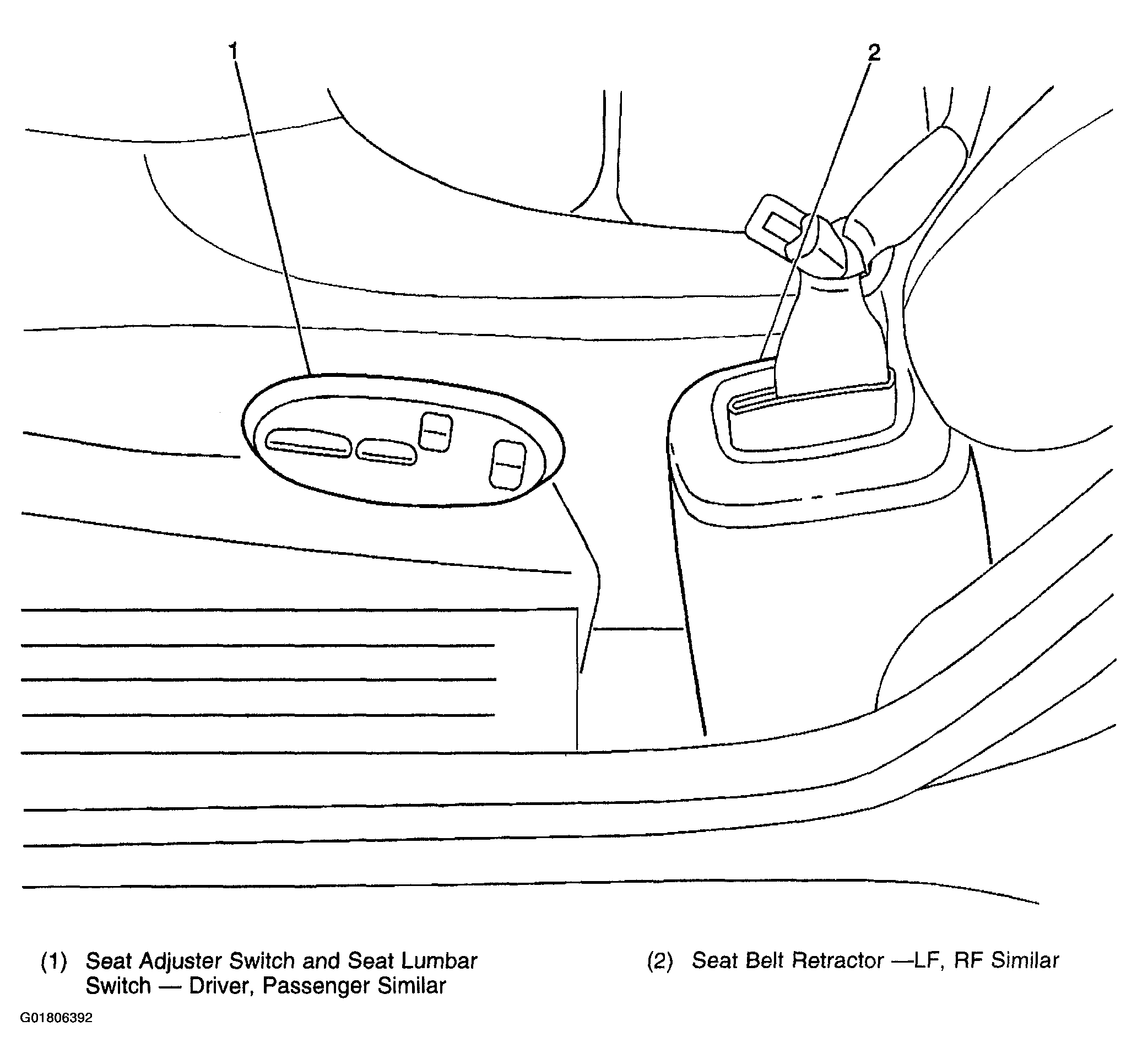

Fig 1: Left Front Seat, on the Left Side of the Seat Cushion
G01806392Courtesy of GENERAL MOTORS CORP.

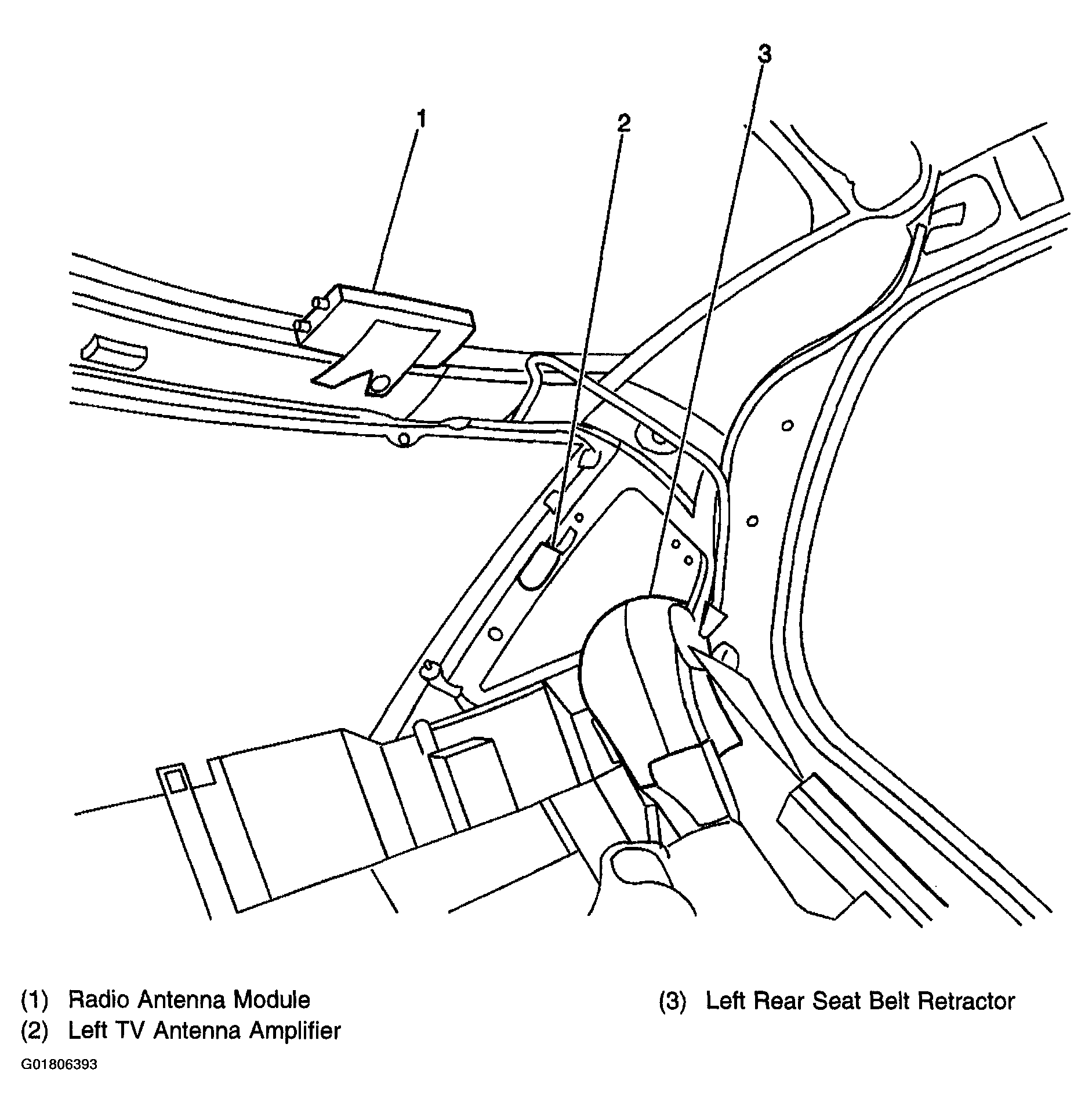

Fig 2: Left Rear Corner of the Passenger Compartment, Above the Rear Seat
G01806393Courtesy of GENERAL MOTORS CORP.

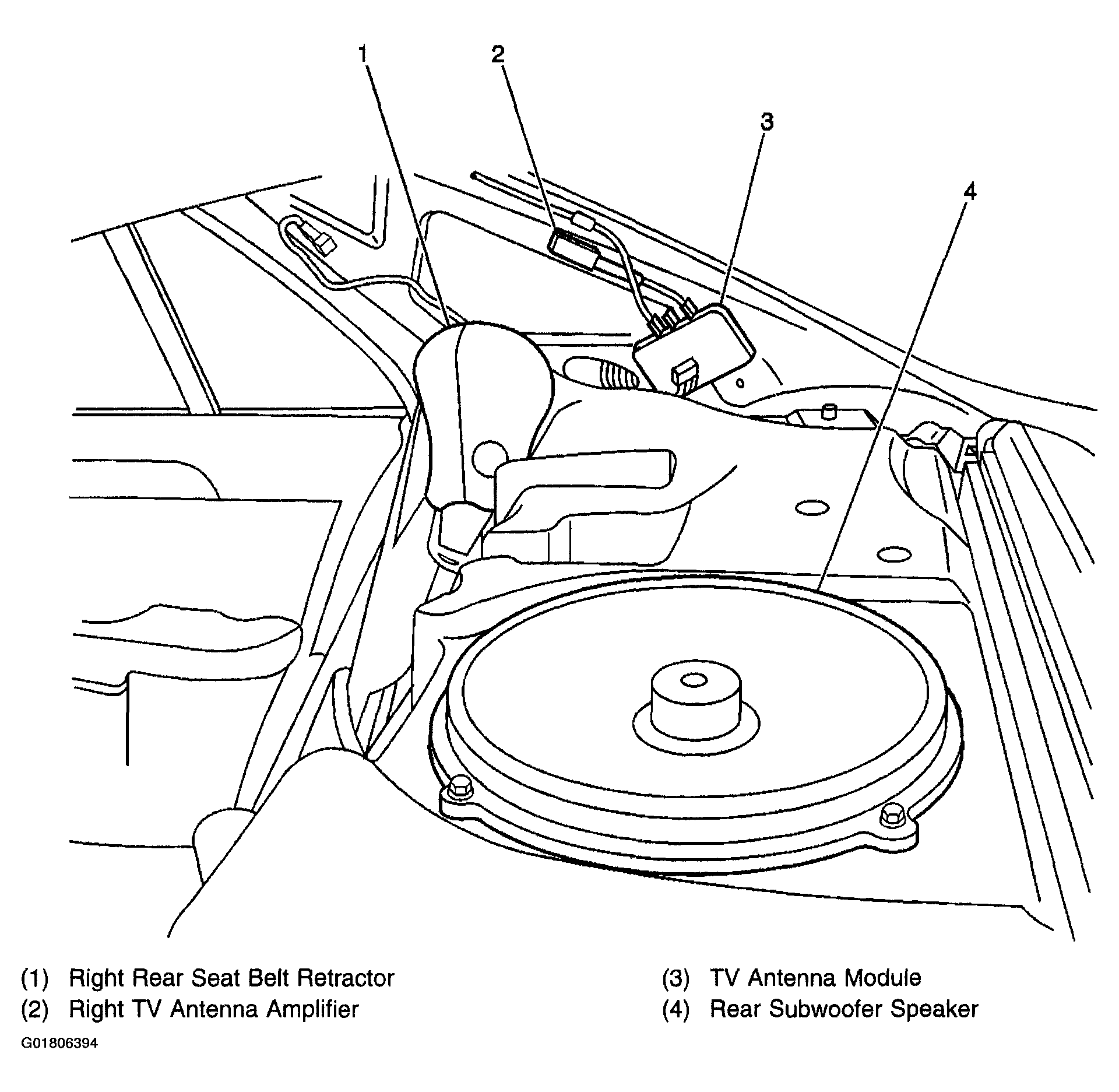

Fig 3: Right Corner of the Passenger Compartment, Above the Rear Seat
G01806394Courtesy of GENERAL MOTORS CORP.

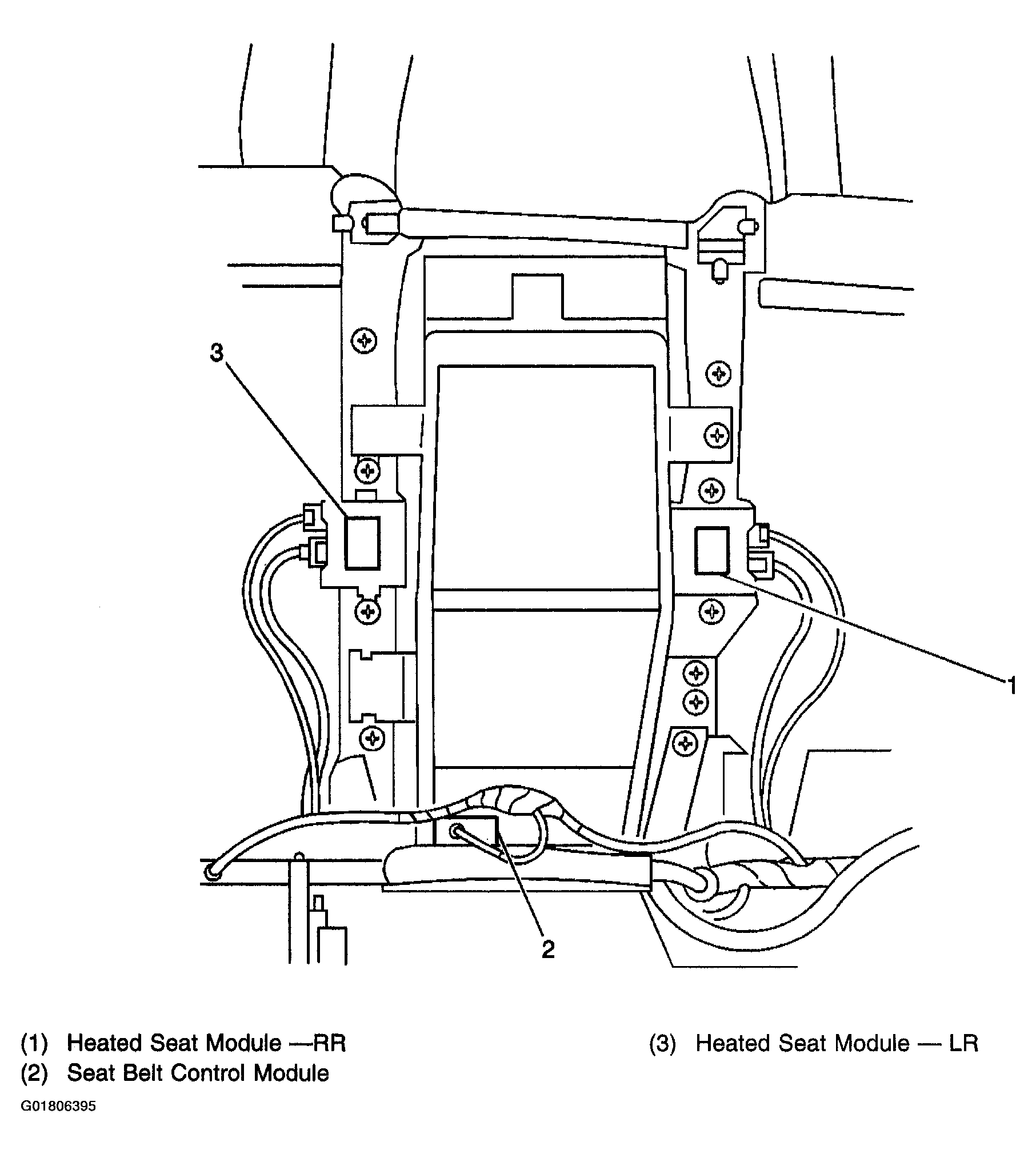

Fig 4: Center Rear of the Passenger Compartment, in the Rear Seat Back
G01806395Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Front of the Passenger Compartment, Under the Left Front Seat
G01806396Courtesy of GENERAL MOTORS CORP.
