Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Position the seat full forward and upward.
  3. Remove the outer finish panel front and rearward fasteners (1).
  4. Lift the outer finish panel upward in order to disengage the finish panel (3) from center retention clip (2).

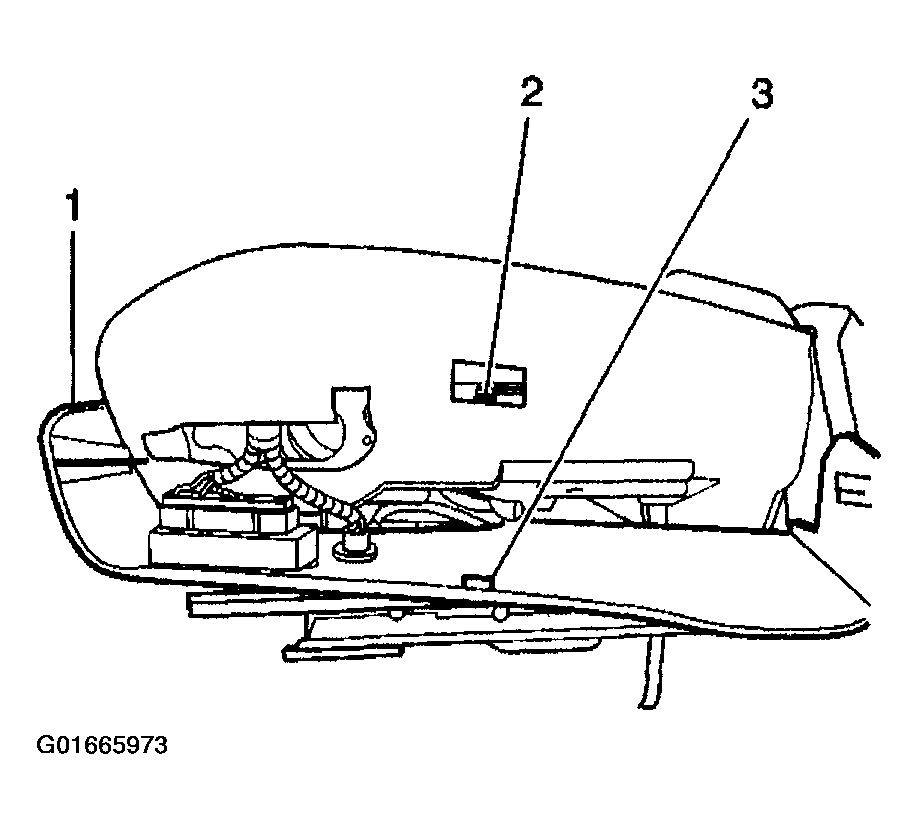

    Fig 1: Identifying Rearward Fasteners, Finish Panel & Center Retention Clip
    G01665973Courtesy of GENERAL MOTORS CORP.
  5. Lower the outer finish panel.
  6. Disconnect the electrical connector (1) to the lumbar switch.
  7. Squeeze the retainers in order to release the lumbar switch (2) from the outer finish panel.
  8. Remove the lumbar switch.

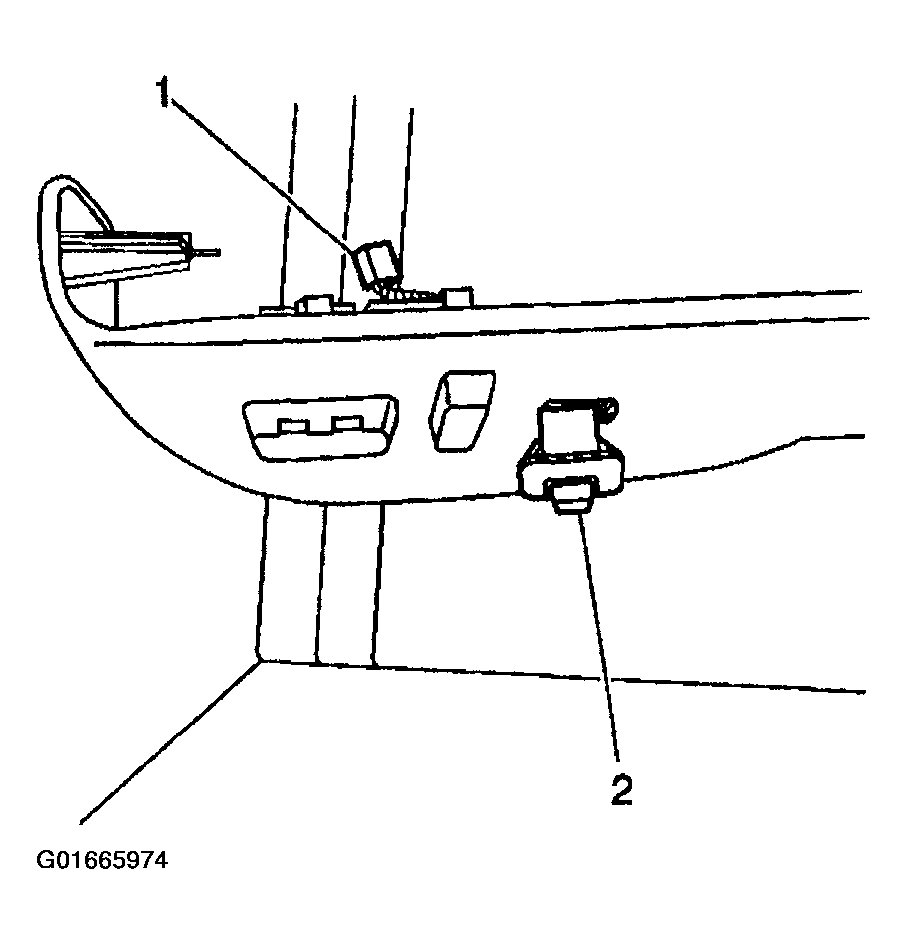

    Fig 2: Identifying Lumbar Switch & Electrical Connector
    G01665974Courtesy of GENERAL MOTORS CORP.
