Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the heated seat switch (2) into the top side of the console trim plate.
Push inward the heated seat switch in order to secure the retention clips (1).

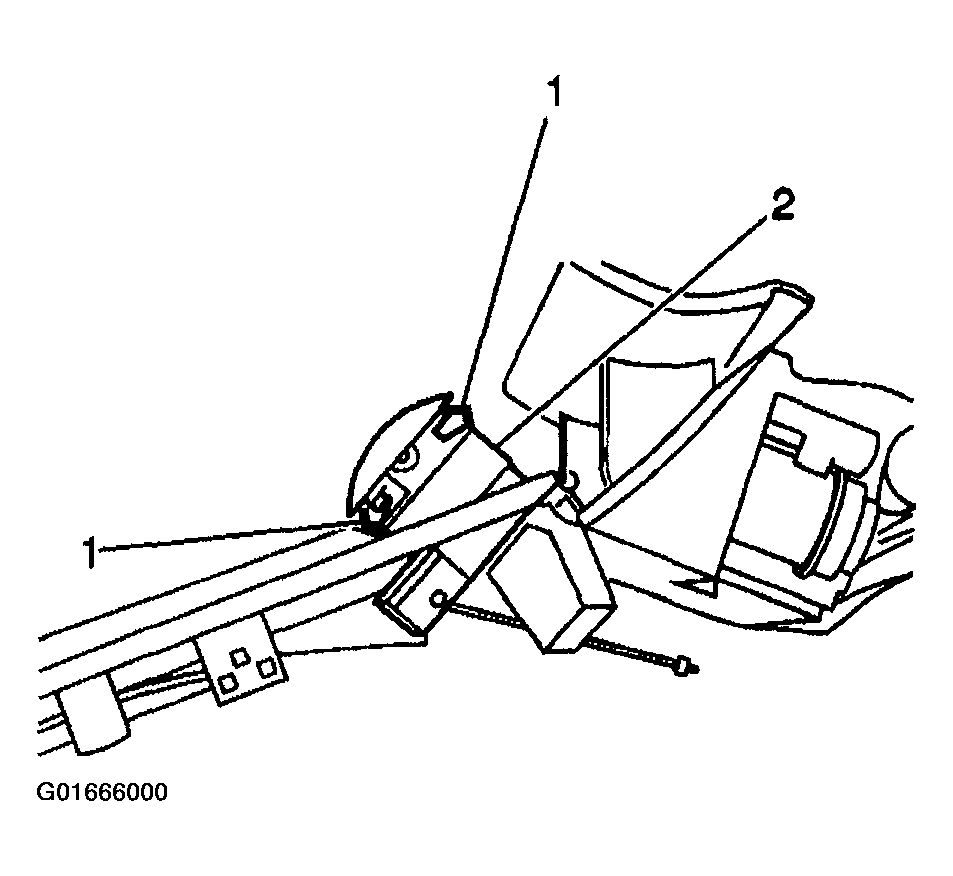

Fig 1: Identifying Retention Clips & Heated Seat Switch
Courtesy of GENERAL MOTORS CORP.
Install the center console trim plate (2). Refer to TRIM PLATE REPLACEMENT - CONSOLE FRONT .

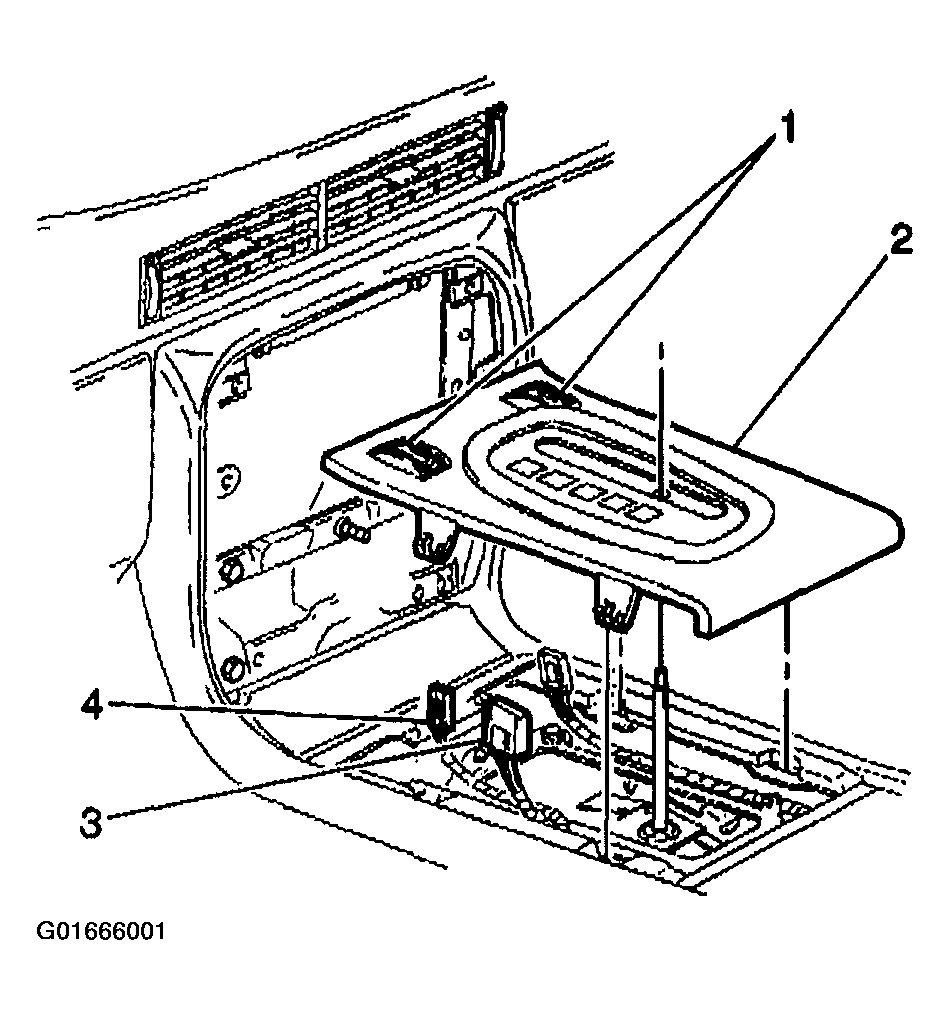

Fig 2: Identifying Center Console Trim Plate
Courtesy of GENERAL MOTORS CORP.
