Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the seat back frame down into the recliner and align the fasteners holes.
    NOTE: Refer to FASTENER NOTICE
  2. Install the four seat back frame fasteners.

    Tighten

    Tighten the seat back frame fasteners to 30 N.m (22 lb ft).

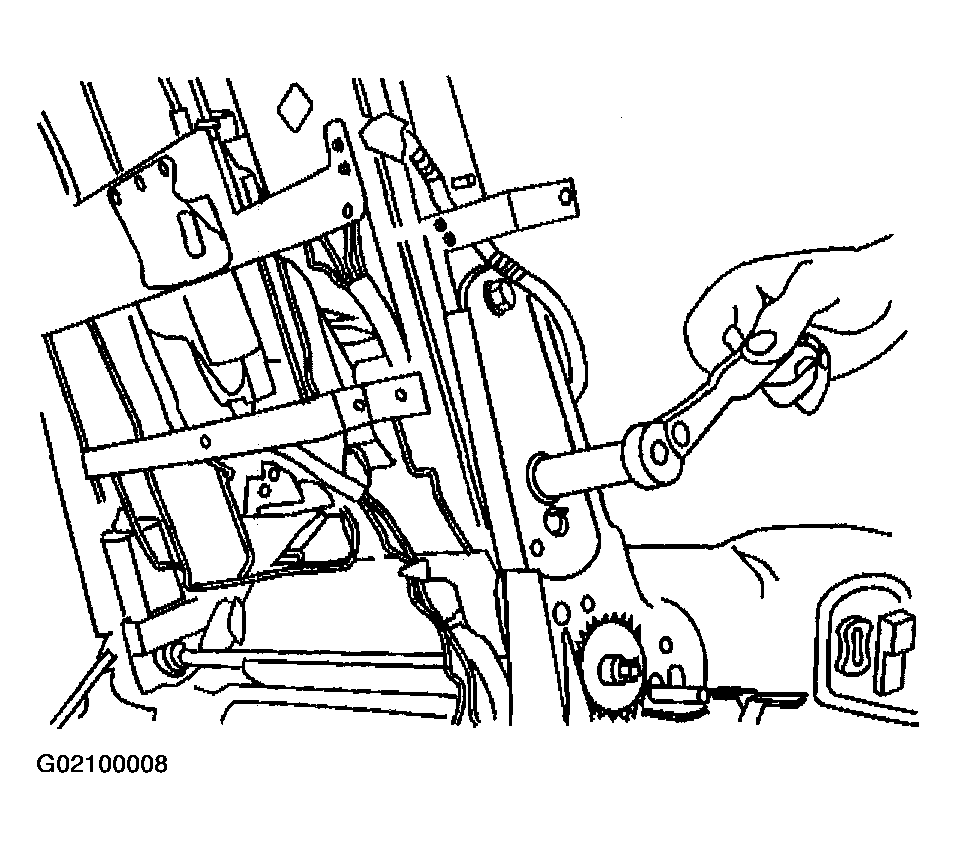

    Fig 1: Installing Four Seat Back Frame Fasteners
    G02100008Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Route and connect the electrical connectors for the heated seats and the and the air lines for the lumbar, if equipped, to the seat back.
  5. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET  .

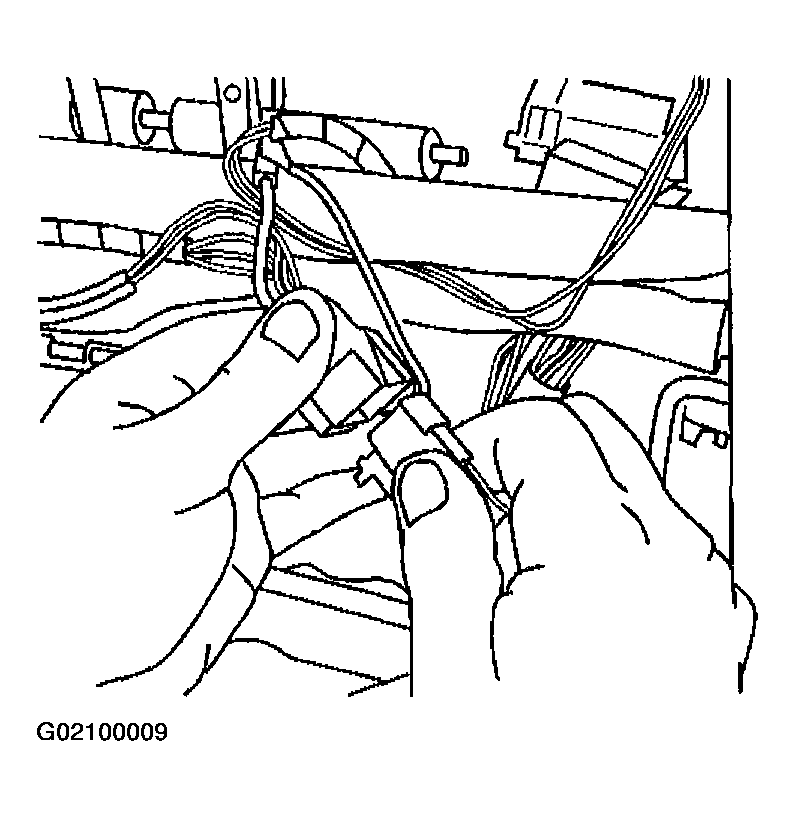

    Fig 2: Connecting Front Seat Back Frame Electrical Connectors
    G02100009Courtesy of GENERAL MOTORS CORP.
