Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the seat back trim cover. Refer to SEAT BACK TRIM REPLACEMENT - FRONT  .
  3. Remove the push pin retainer (1) from the edge of the lower seat belt retractor trim cover (2).
  4. Release the rear of the lower seat belt retractor trim cover (2), and remove the trim cover (2).

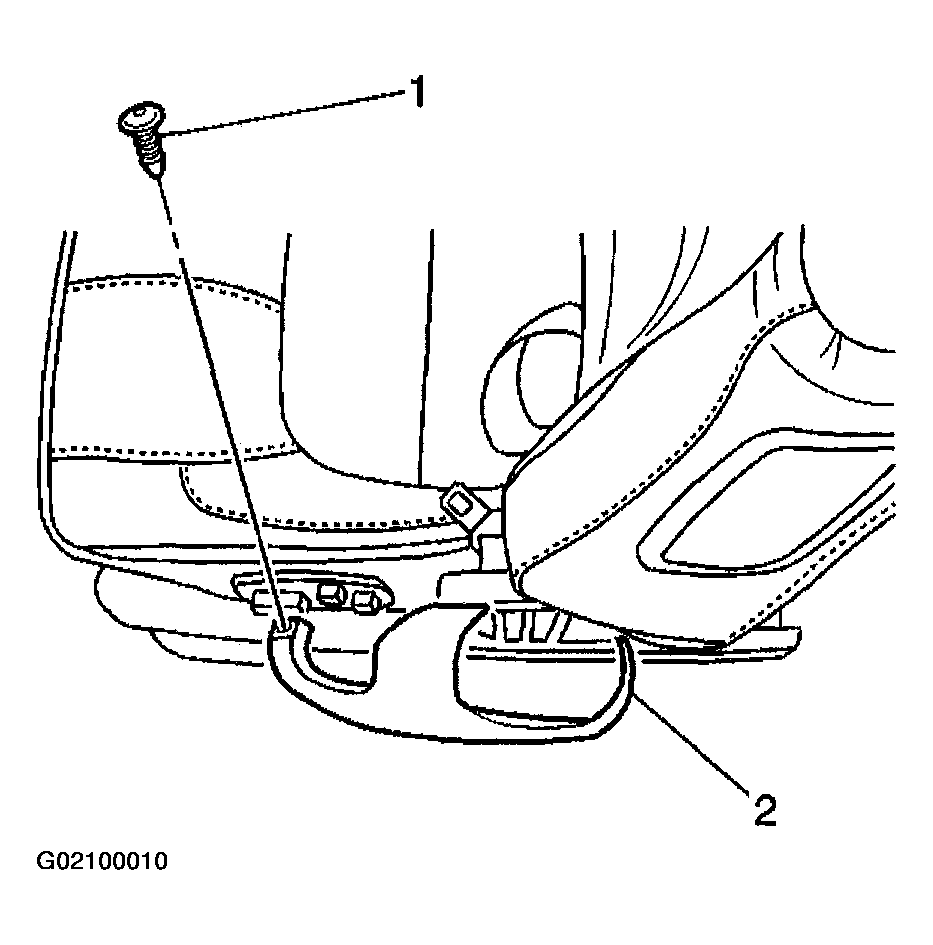

    Fig 1: Removing Push Pin Retainer And Retractor Trim Cover
    G02100010Courtesy of GENERAL MOTORS CORP.
  5. Remove the retainer clip from the recliner motor end of the recliner shaft.

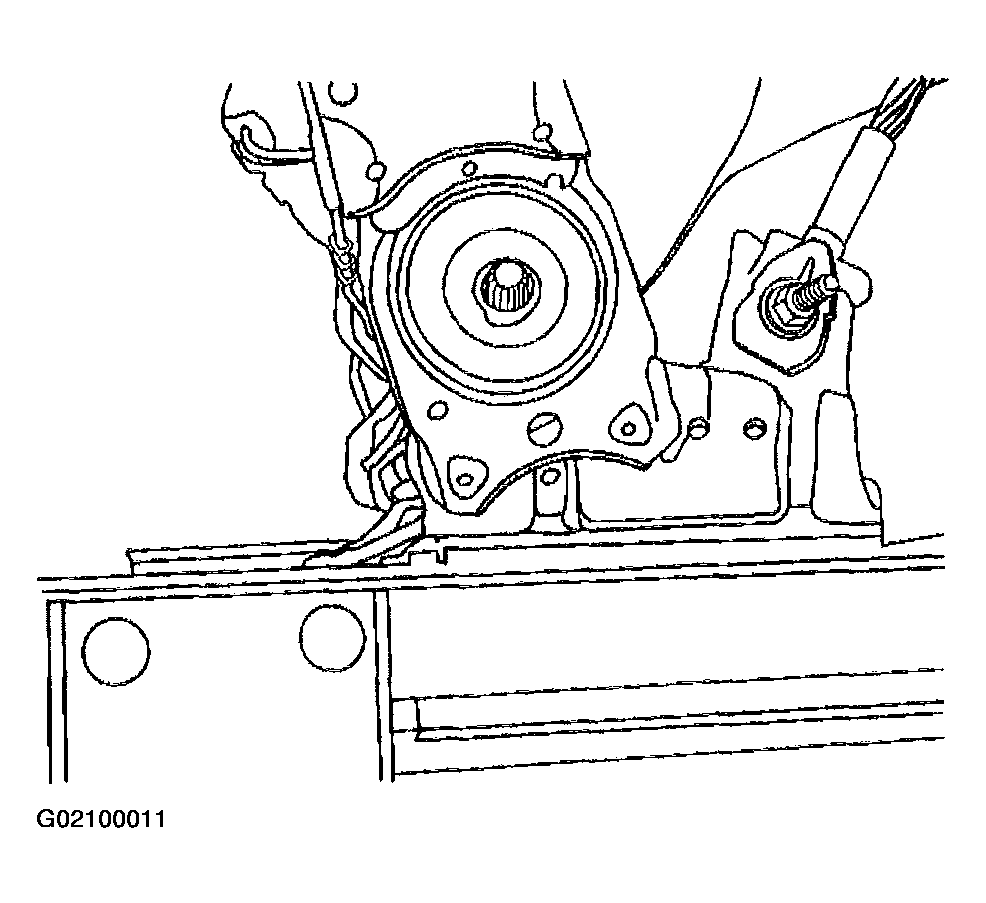

    Fig 2: Removing Retainer Clip
    G02100011Courtesy of GENERAL MOTORS CORP.
  6. Slide the recliner shaft out of the recliner motor sensor (outboard side) far enough to clear the sensor.
  7. Disconnect the recliner sensor electrical connector from beneath the seat.
  8. Release the recliner sensor from the recliner motor.

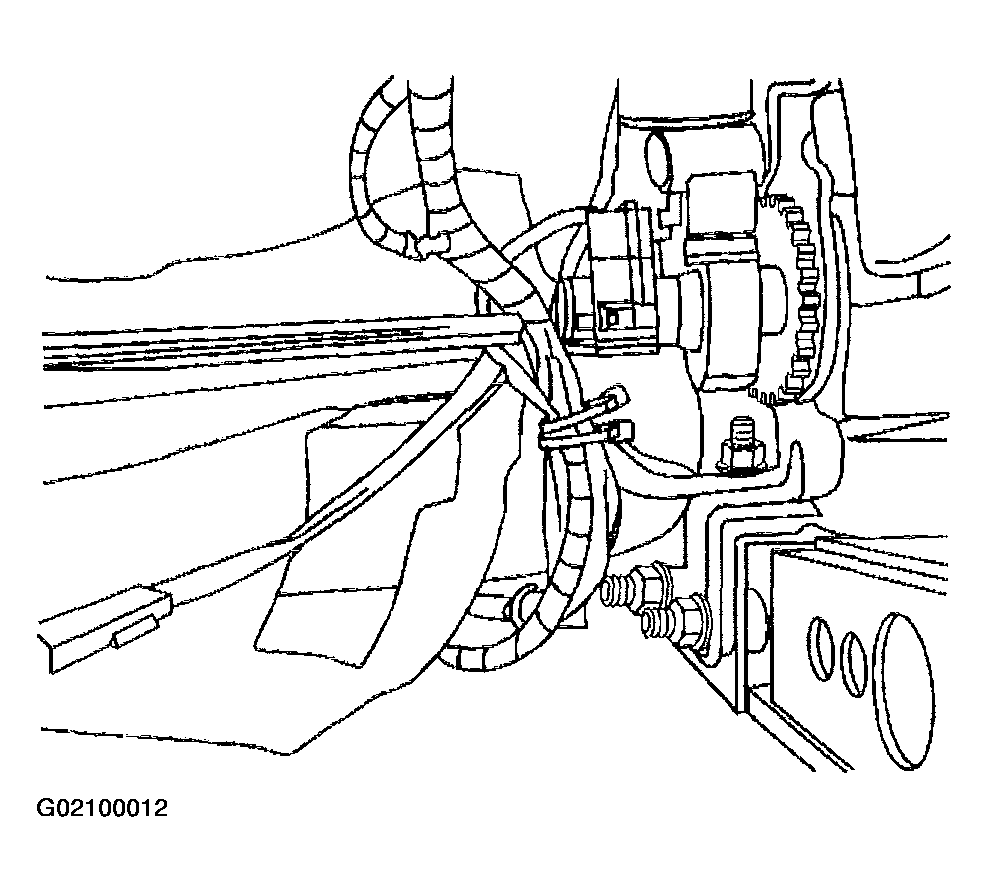

    Fig 3: Disconnecting Recliner Sensor And Recliner Motor
    G02100012Courtesy of GENERAL MOTORS CORP.
