Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper blade onto the wiper arm. Refer to WIPER ARM BLADE REPLACEMENT  .
  2. Position the wiper arm so that the wiper blade aligns with the mark made on the windshield before removal.
  3. Install the wiper arm onto the drive pivot shafts.
    NOTE: Refer to FASTENER NOTICE
  4. Install the nut on the wiper arm pivot shaft.

    Tighten

    Tighten the nut to 32 N.m (24 lb ft).

  5. Install the cover on the nut.
  6. Install the washer hose onto the air inlet grille panel.
  7. Operate the wipers and check for proper operation.

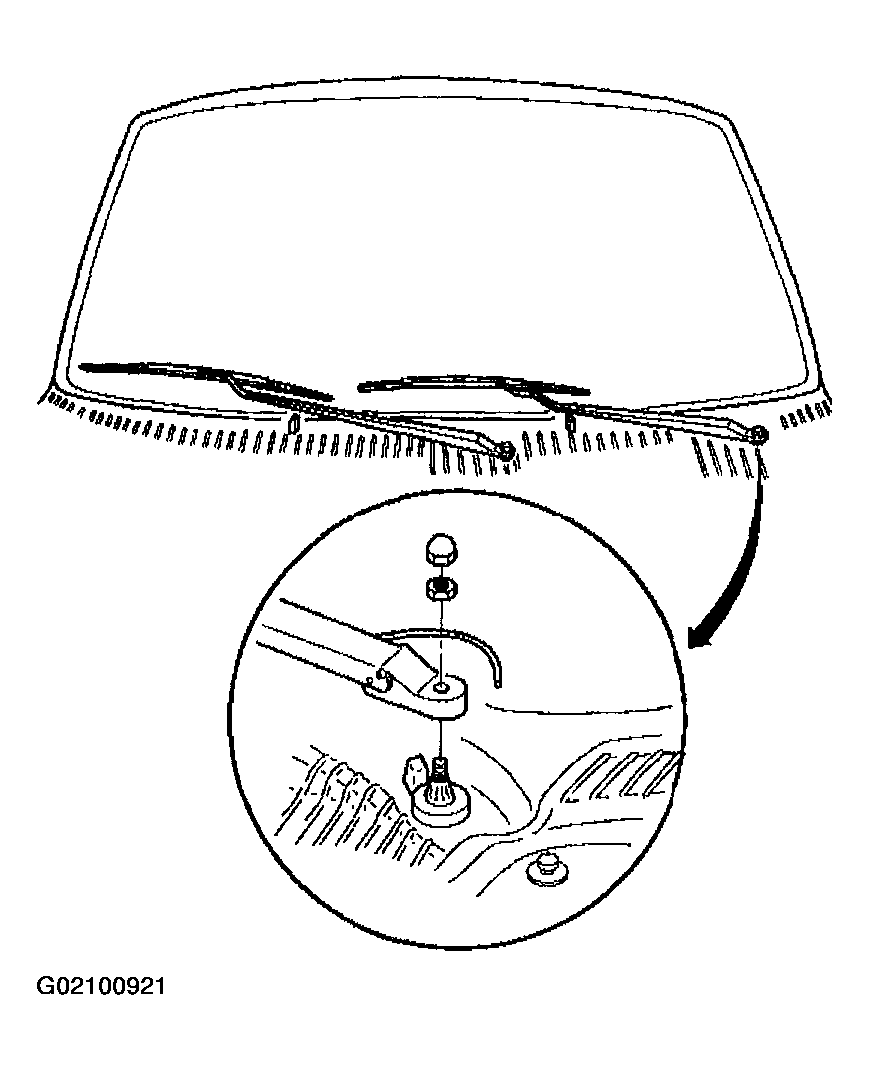

    Fig 1: Installing Wiper Arm To Drive Pivot Shafts
    G02100921Courtesy of GENERAL MOTORS CORP.
