Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.

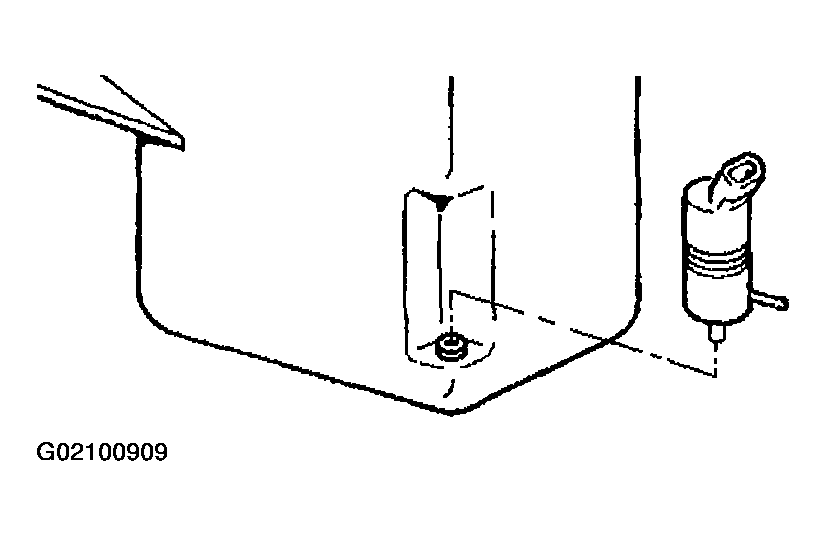

    Fig 1: Installing Washer Pump From Washer Solvent Container
    G02100909Courtesy of GENERAL MOTORS CORP.
  2. Install the washer solvent container on the vehicle.
    NOTE: Refer to FASTENER NOTICE
  3. Install the 3 nuts.

    Tighten

    Tighten the 3 nuts to 6 N.m (53 lb in).

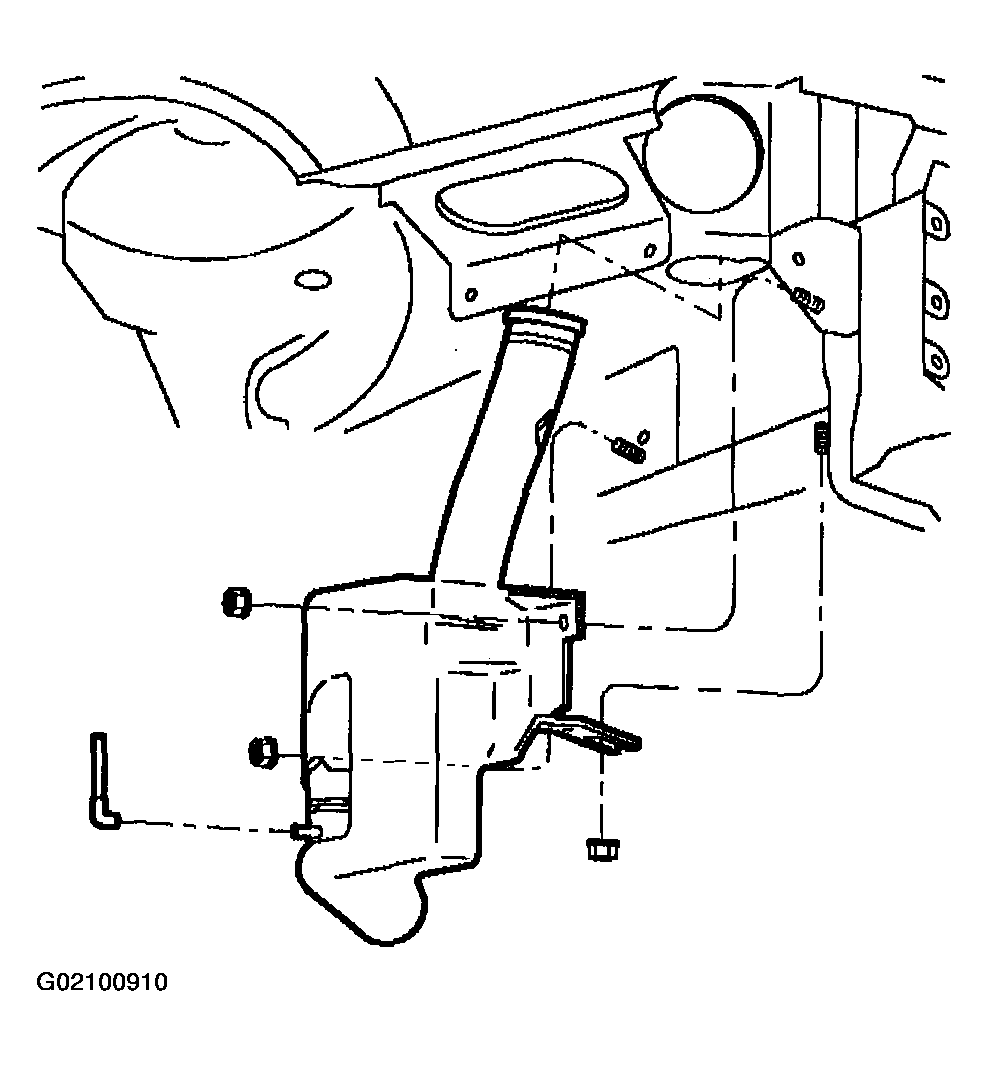

    Fig 2: Installing Washer Solvent Container
    G02100910Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the washer solvent level sensor.
  5. Connect the electrical connector to the washer pump.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT

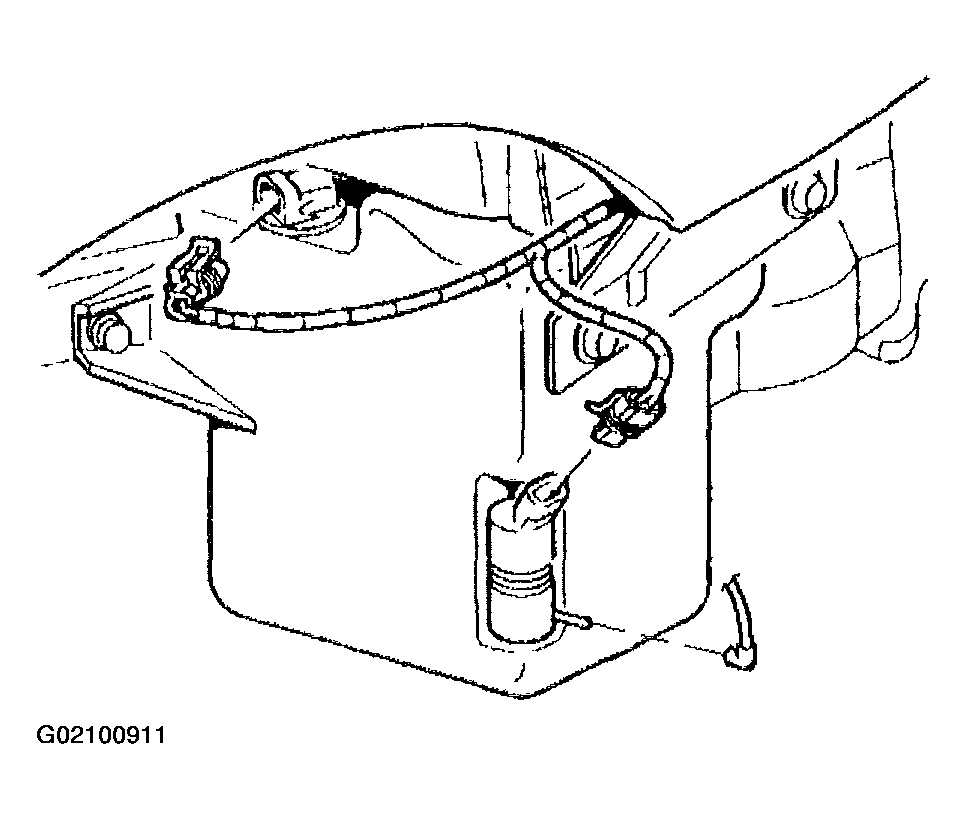

    Fig 3: Connecting Electrical Connector To Washer Pump And Solvent Level Sensor
    G02100911Courtesy of GENERAL MOTORS CORP.
