Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.

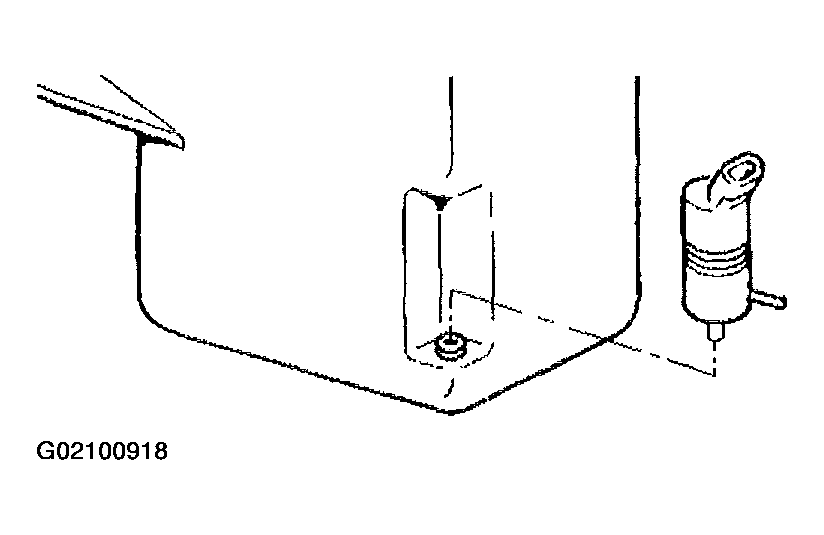

    Fig 1: Installing Washer Pump In Washer Solvent Container
    G02100918Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the washer pump.
  3. Connect the washer hose to the washer pump.
  4. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT
  5. Fill the washer solvent container.

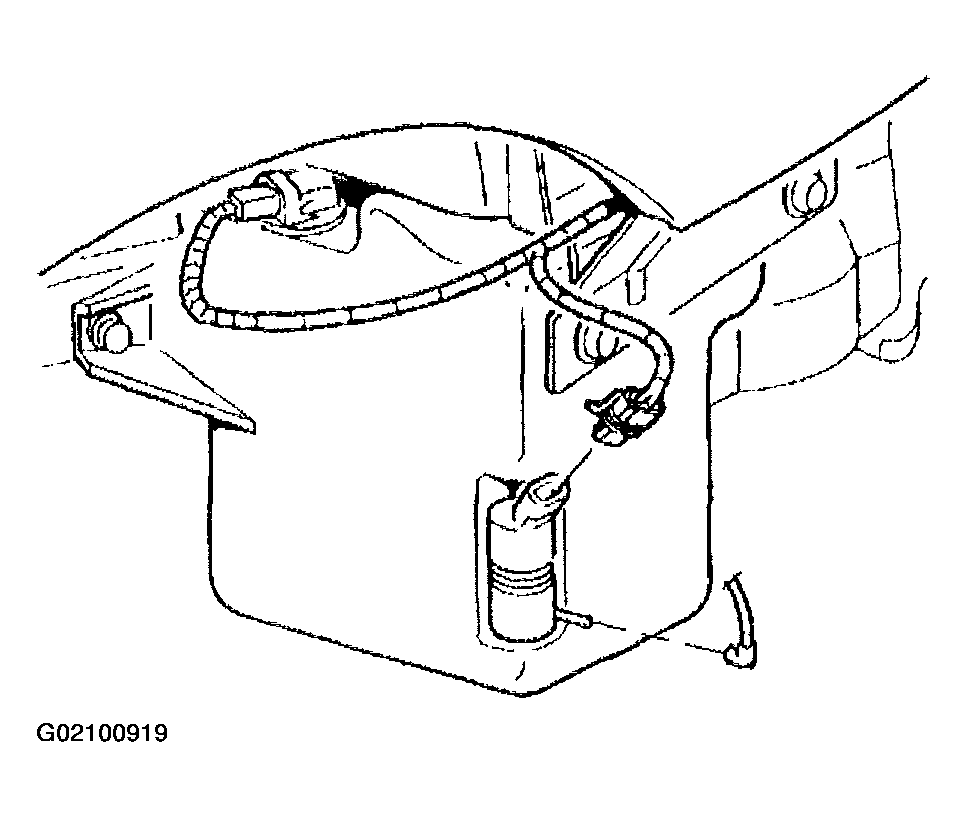

    Fig 2: Connecting Electrical Connector To Washer Pump
    G02100919Courtesy of GENERAL MOTORS CORP.
