Installation Procedure

  1. Install the horns to the body.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fastener in order to secure the horns to the body.Tighten

    Tighten the bolts to 15 N.m (11 lb ft).

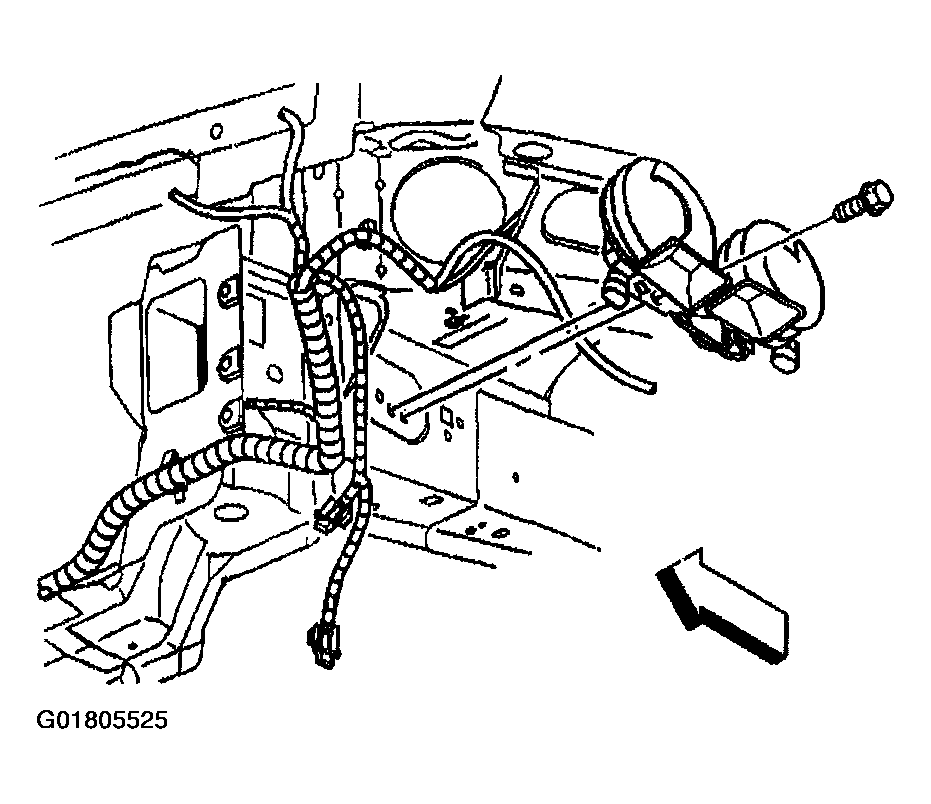

    Fig 1: Installing Horns & Fastener
    G01805525Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn connectors (1) to the horns.
  4. Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
  5. Lower the vehicle.

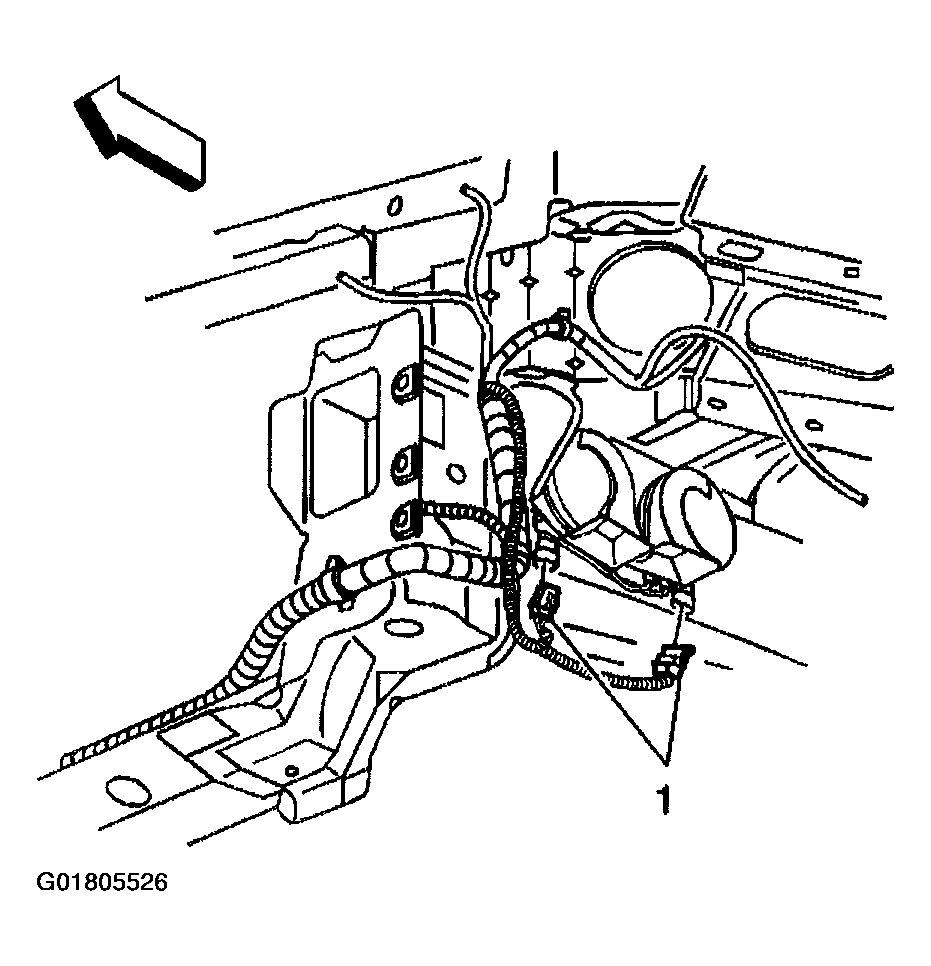

Fig 2: Connecting Horn Connectors To Horns
G01805526Courtesy of GENERAL MOTORS CORP.
