Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT .
  3. Disconnect the BAT cable from the starter.
  4. Disconnect the wire from the "S" terminal on the starter.

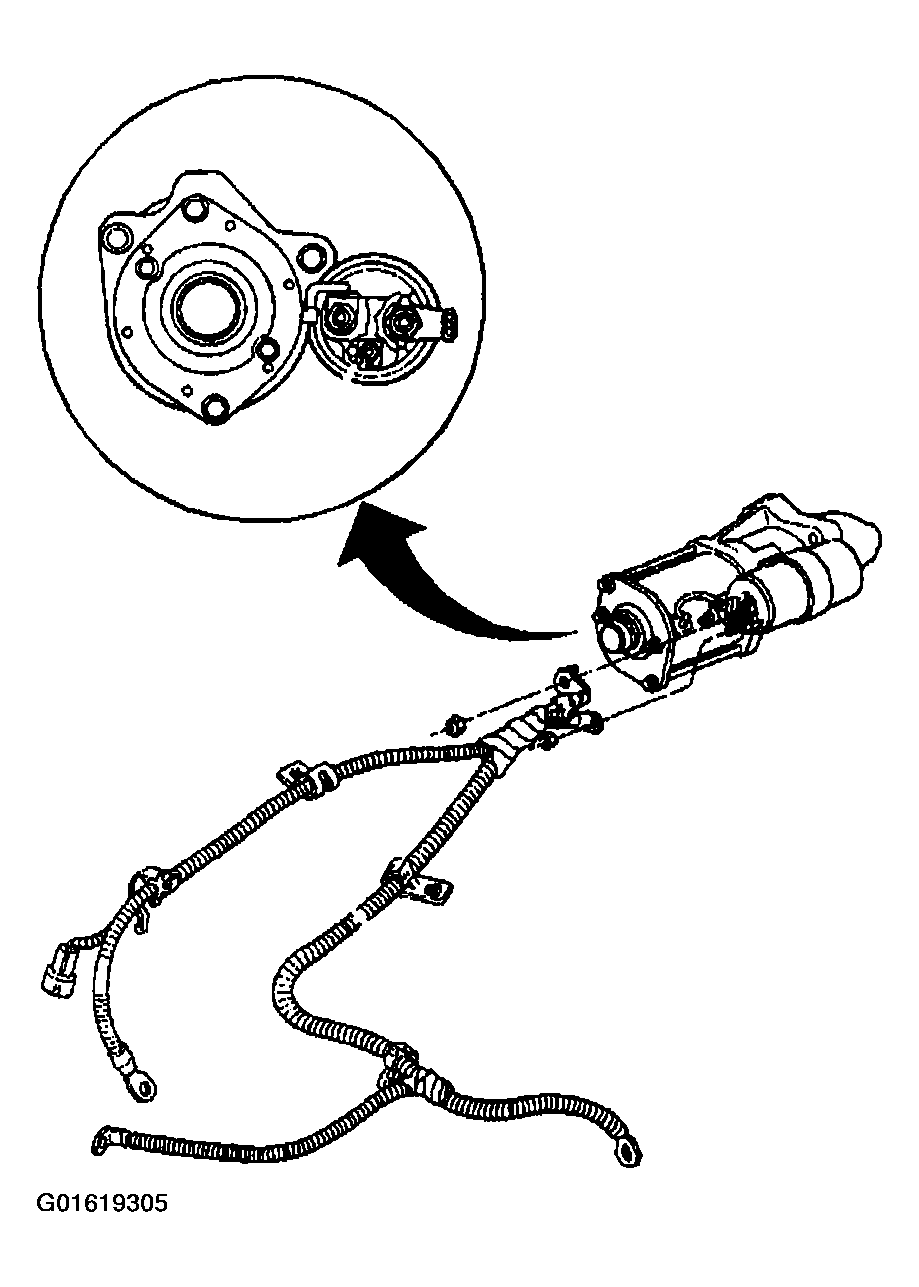

    Fig 1: Negative Battery Cable
    G01619305Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 starter motor mounting bolts.
  6. Remove the starter motor.

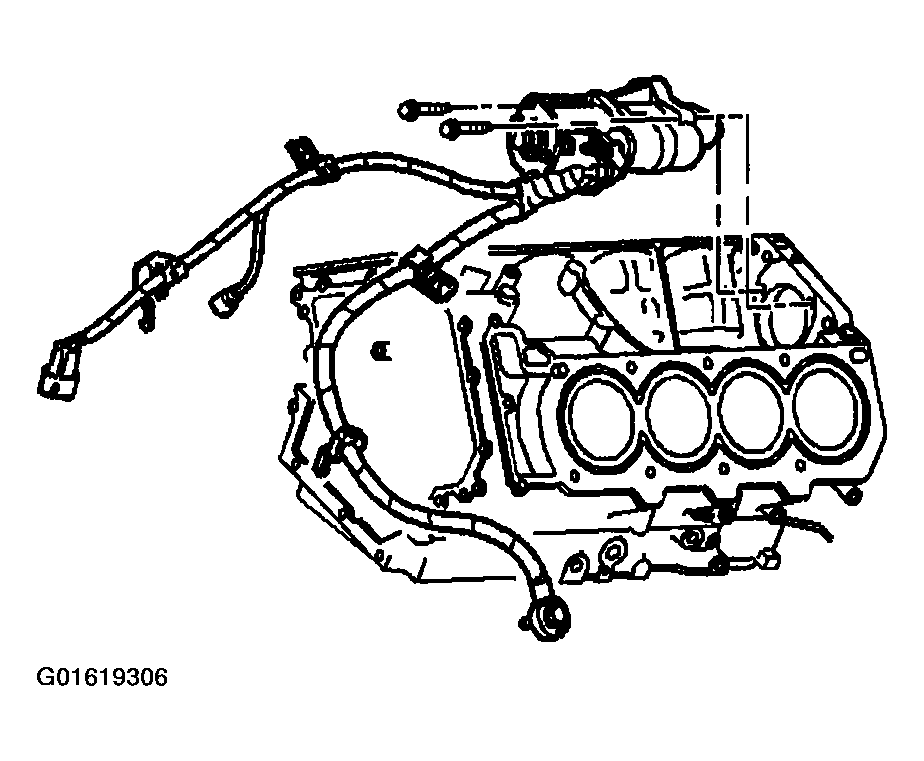

    Fig 2: Starter Motor & Mounting Bolts
    G01619306Courtesy of GENERAL MOTORS CORP.
