Vehicle Communication Interface Module (VCIM) C1 Connector End View

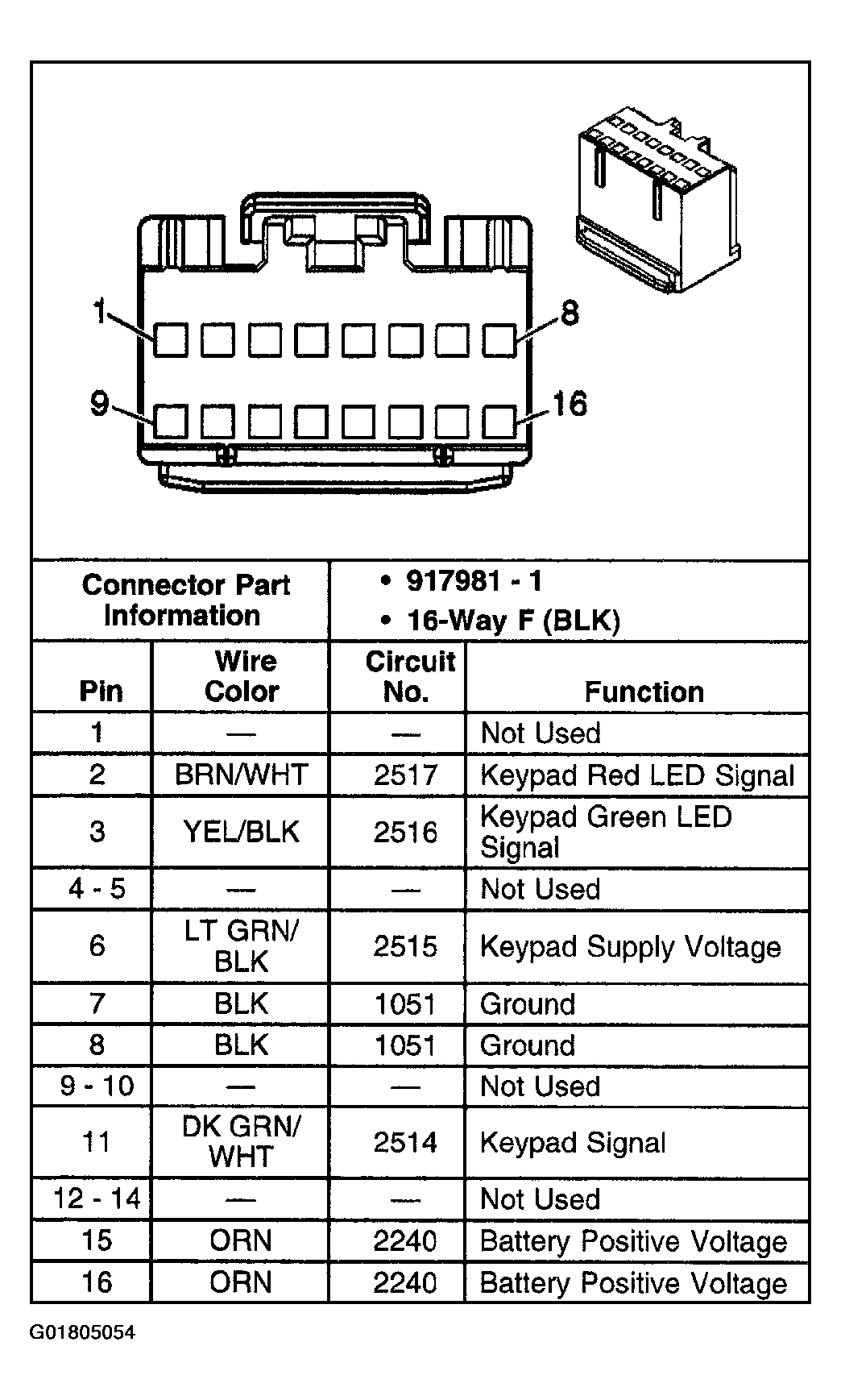

Fig 1: Vehicle Communication Interface Module (VCIM) C1

G01805054

Courtesy of GENERAL MOTORS CORP.
