Seat Massage Module Connector End View - Driver

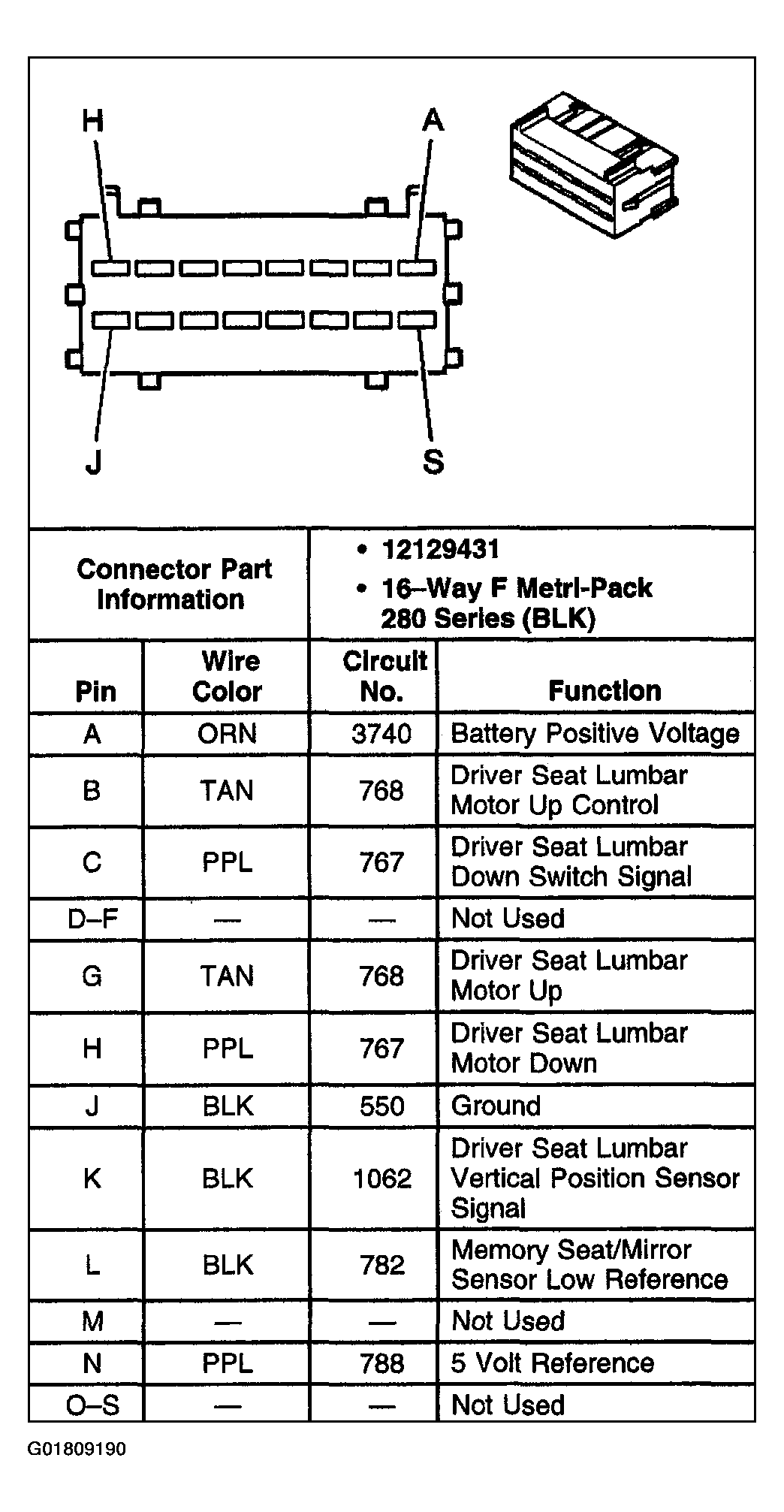

Fig 1: Seat Massage Module - Driver

G01809190

Courtesy of GENERAL MOTORS CORP.
