Object Sensor Connector End View - RR Middle

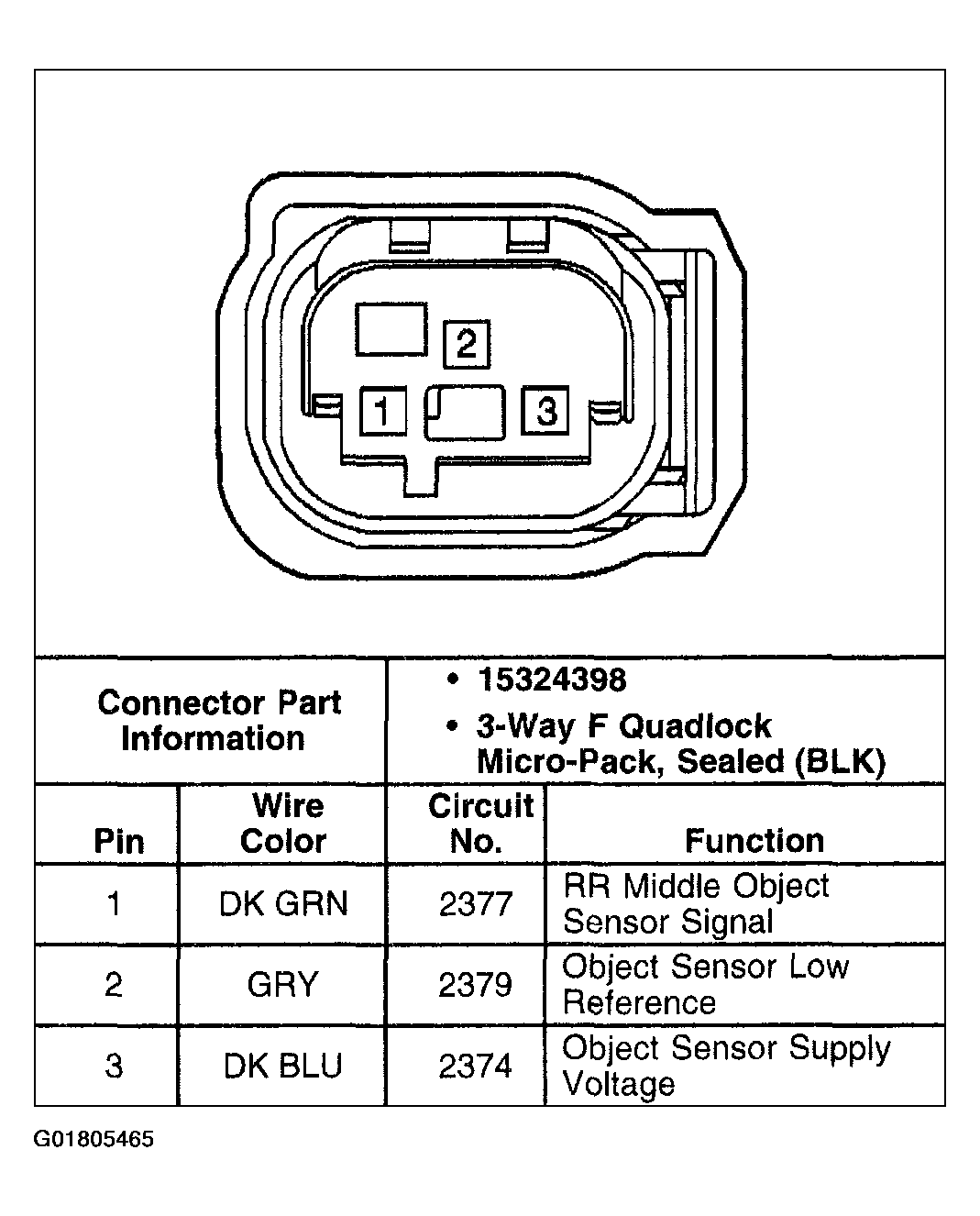

Fig 1: Object Sensor - RR Middle

G01805465

Courtesy of GENERAL MOTORS CORP.
