Heated Seat Module Connector End View - Driver C2

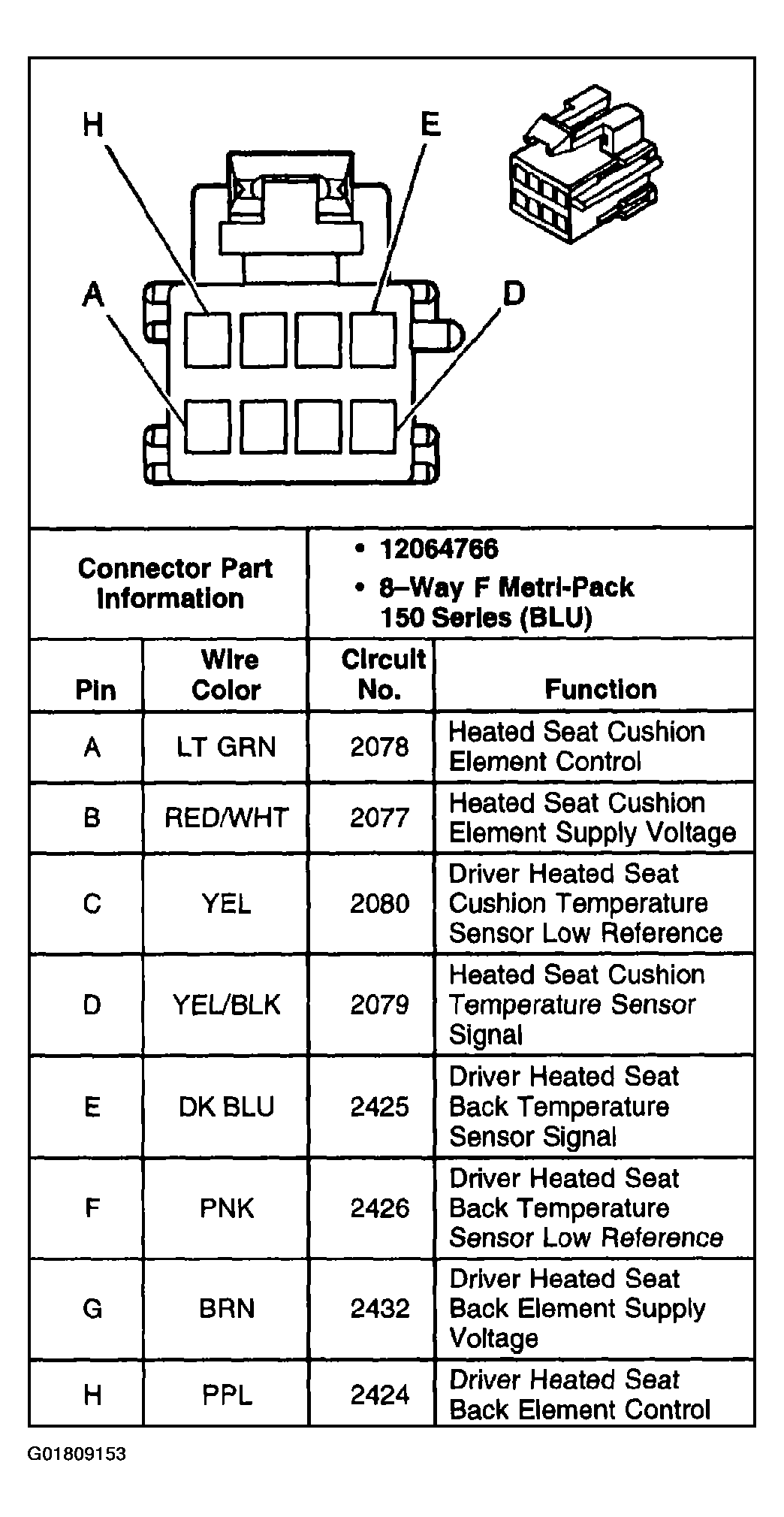

Fig 1: Heated Seat Module - Driver C2

G01809153

Courtesy of GENERAL MOTORS CORP.
