Automatic Level Control (ALC) Compressor Connector End View

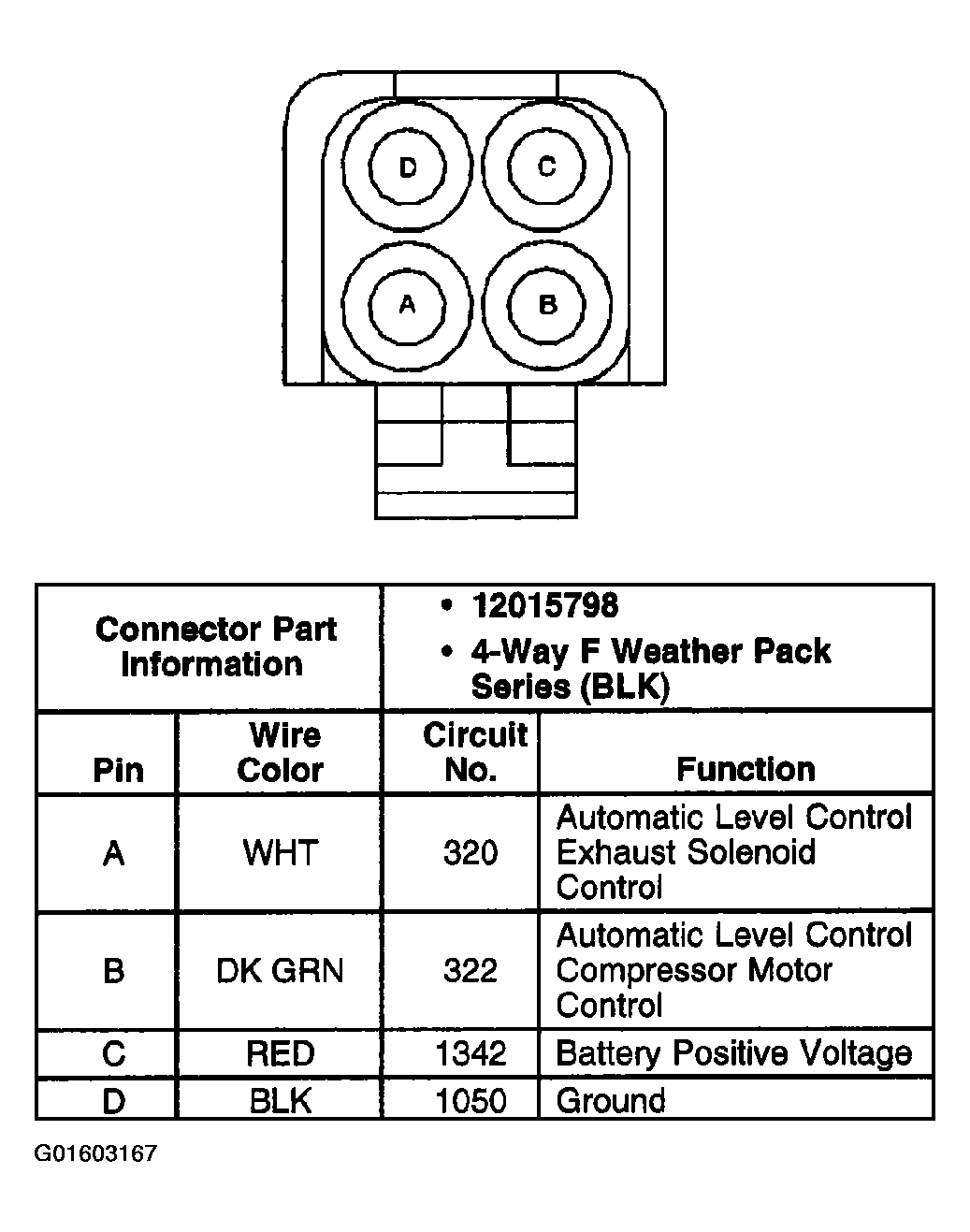

Fig 1: Automatic Level Control (ALC) Compressor

G01603167

Courtesy of GENERAL MOTORS CORP.
