Installation Procedure

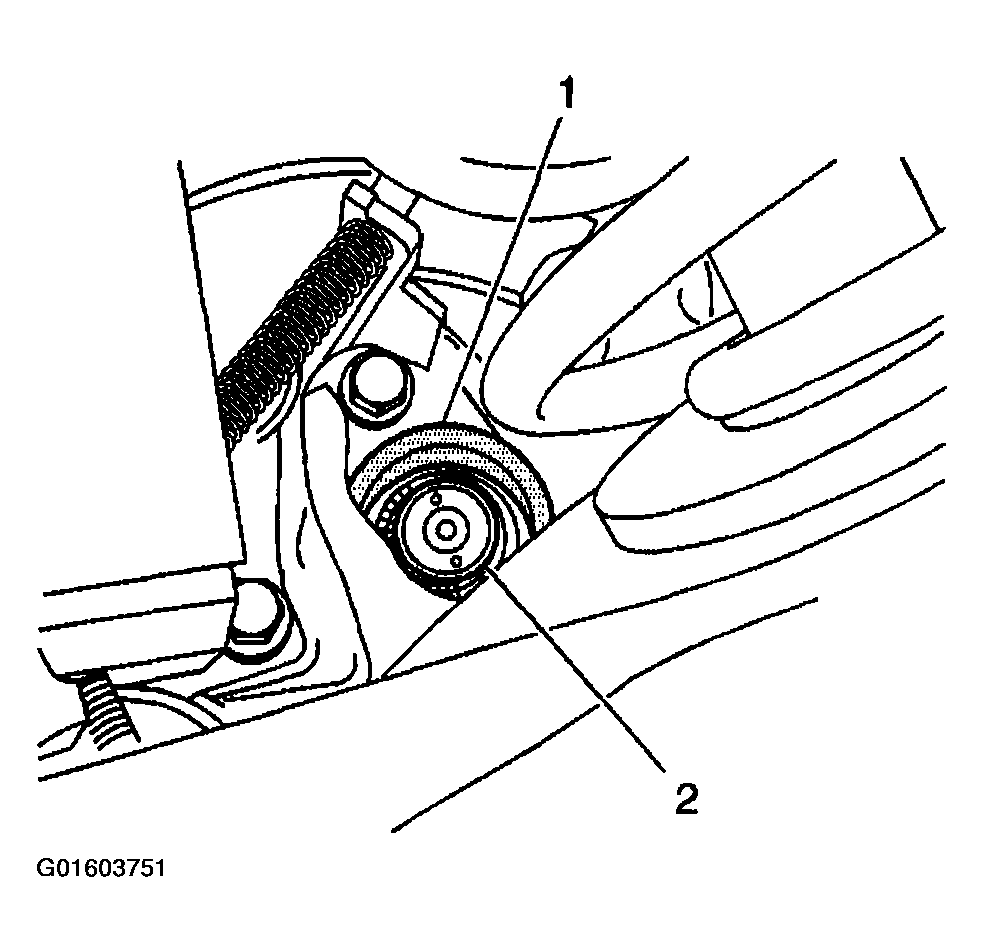

    Fig 1: Identifying Wheel Speed Sensor Reluctor & J 44253 Ring
    G01603751Courtesy of GENERAL MOTORS CORP.
  1. Apply Loctite® to the inner portion of the wheel speed sensor reluctor (2).
  2. Insert the wheel speed sensor reluctor (2) onto the hub assembly.
  3. Install the ring (1) of the J 44253  ABS reluctor installer onto the wheel speed sensor reluctor.
  4. Insert the J 44253  ABS reluctor installer (1).
    IMPORTANT: Turn the J 44253  until it just touches the ring of the J 44253  .

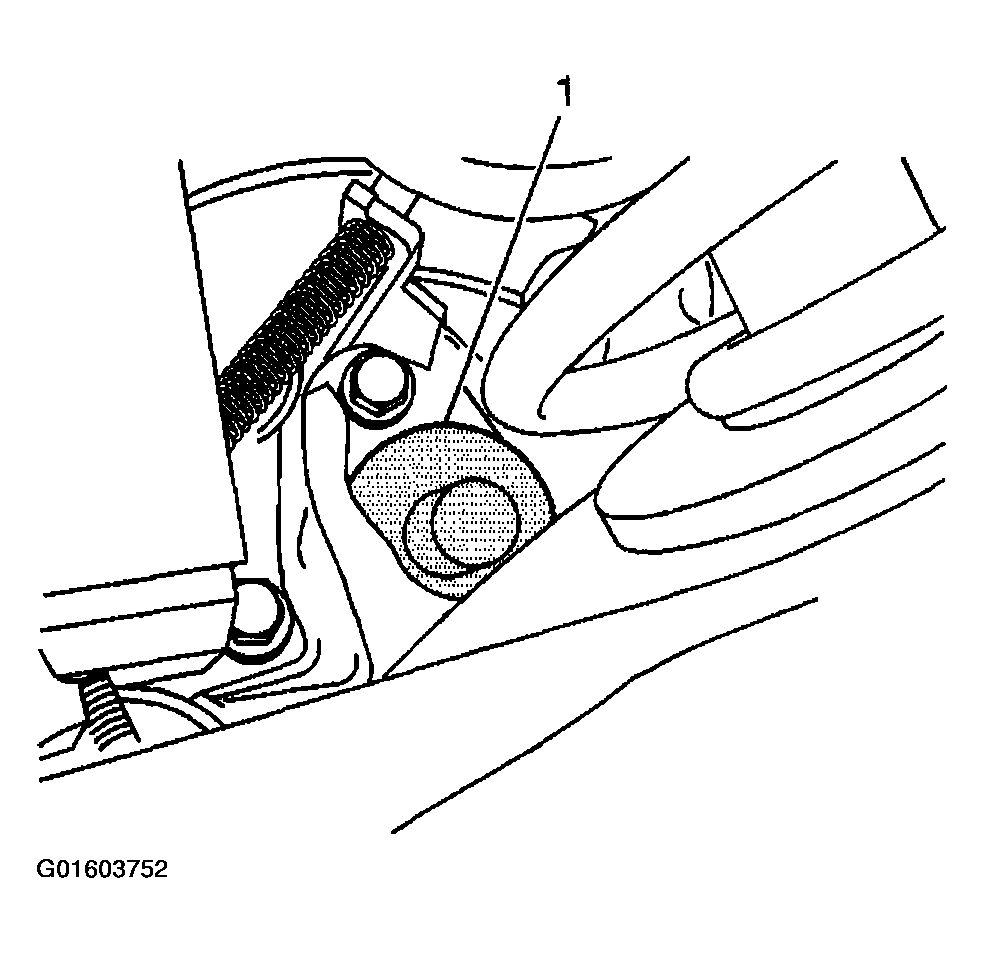

    5. Fig 2: Identifying J 44253 ABS Reluctor Installer
    G01603752Courtesy of GENERAL MOTORS CORP.
  5. Turn the J 44253  ABS reluctor installer (1) to thread the wheel speed sensor reluctor.
  6. Install the wheel speed sensor. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (FE1, FE or WHEEL BEARING/HUB REPLACEMENT - REAR (FE7) .
