Installation Procedure

  1. With the aid of assistant, dry fit the rear window (2) to the opening in order to determine the correct way to position the window in the opening.
  2. Use masking tape (1) in order to mark the location of the rear window (2) in the opening.
  3. Slit the masking tape at the top edge of the rear window.
  4. With the aid of assistant, remove the rear window from the opening.
  5. Place the rear window inside up on a clean, protected surface.

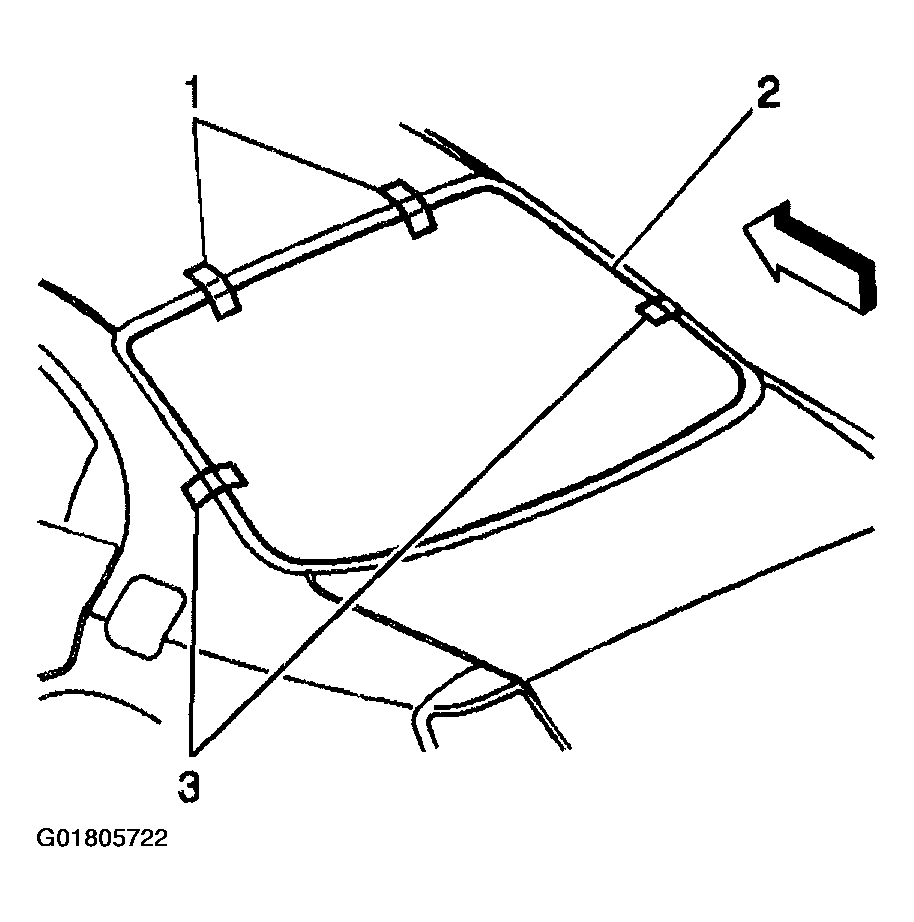

    Fig 1: Using Masking Tape To Mark Location Of Rear Window
    G01805722Courtesy of GENERAL MOTORS CORP.
  6. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  7. Connect the rear window defogger left electrical connector.

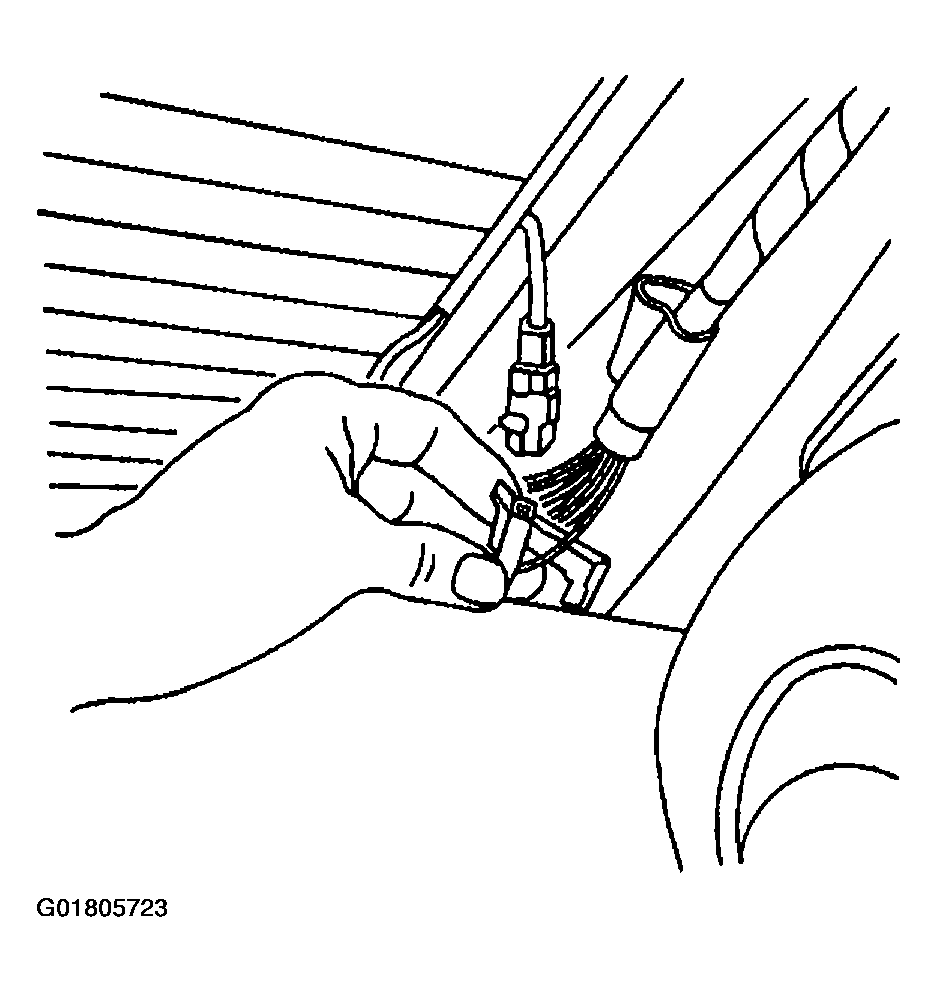

    Fig 2: Connecting Rear Window Defogger Left Electrical Connector
    G01805723Courtesy of GENERAL MOTORS CORP.
  8. Connect the rear window defogger right electrical connector.
  9. Install the OnStar® antenna. Refer to COUPLING REPLACEMENT - ANTENNA OUTER and COUPLING REPLACEMENT - ANTENNA INNER .

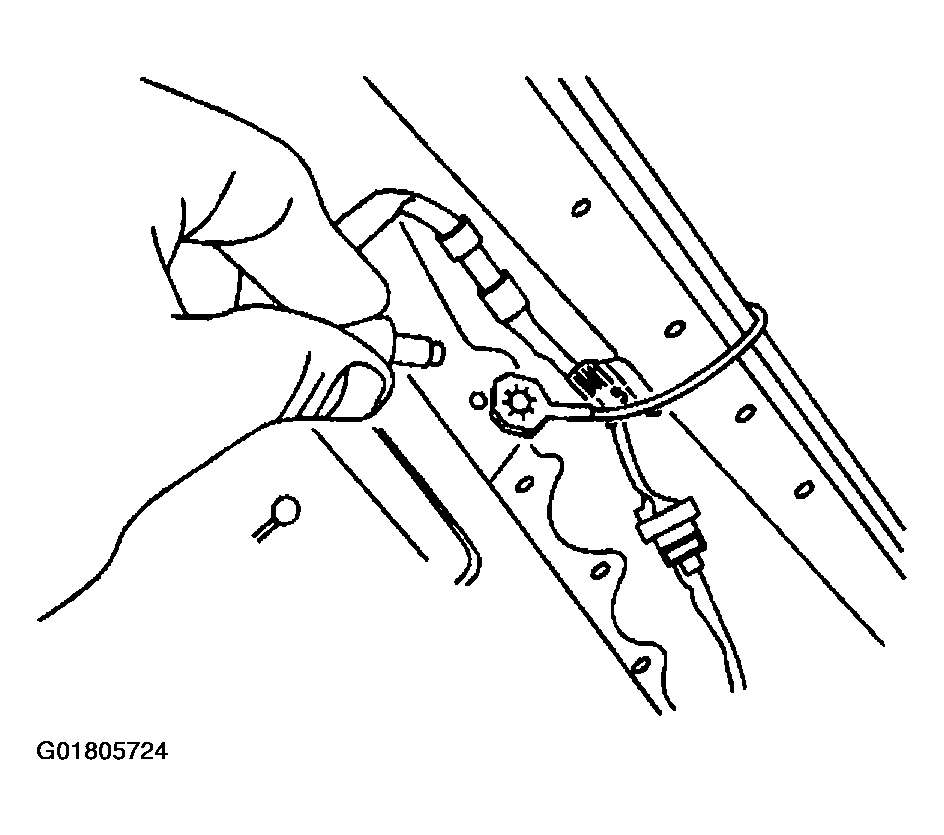

    Fig 3: Connecting Rear Window Defogger Right Electrical Connector
    G01805724Courtesy of GENERAL MOTORS CORP.
  10. Install the rear sail panels. Refer to SAIL PANEL REPLACEMENT .
  11. Install the rear window lower reveal molding (2).
    NOTE: Refer to FASTENER NOTICE .
  12. Install the four rear window lower reveal molding fasteners (1).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  13. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  14. Close the rear compartment lid.

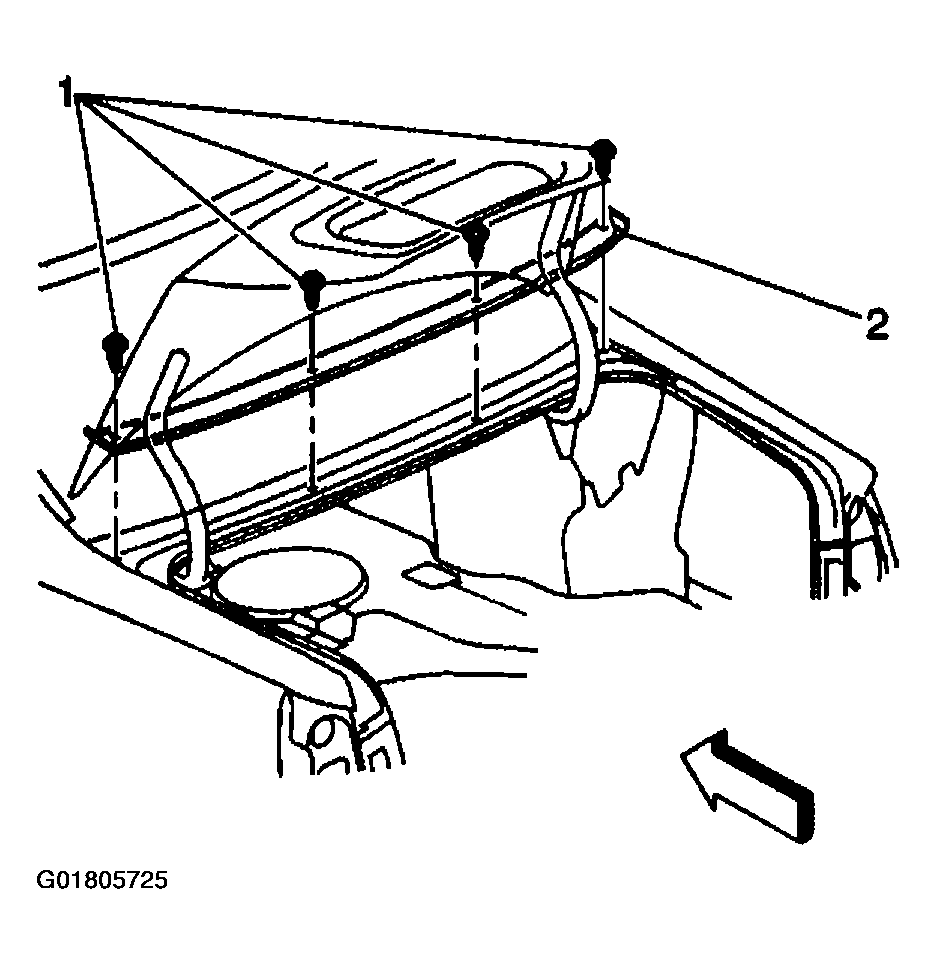

    Fig 4: Installing Rear Window Lower Reveal Molding & Fasteners
    G01805725Courtesy of GENERAL MOTORS CORP.
