Steering Column Module C1 Connector End View

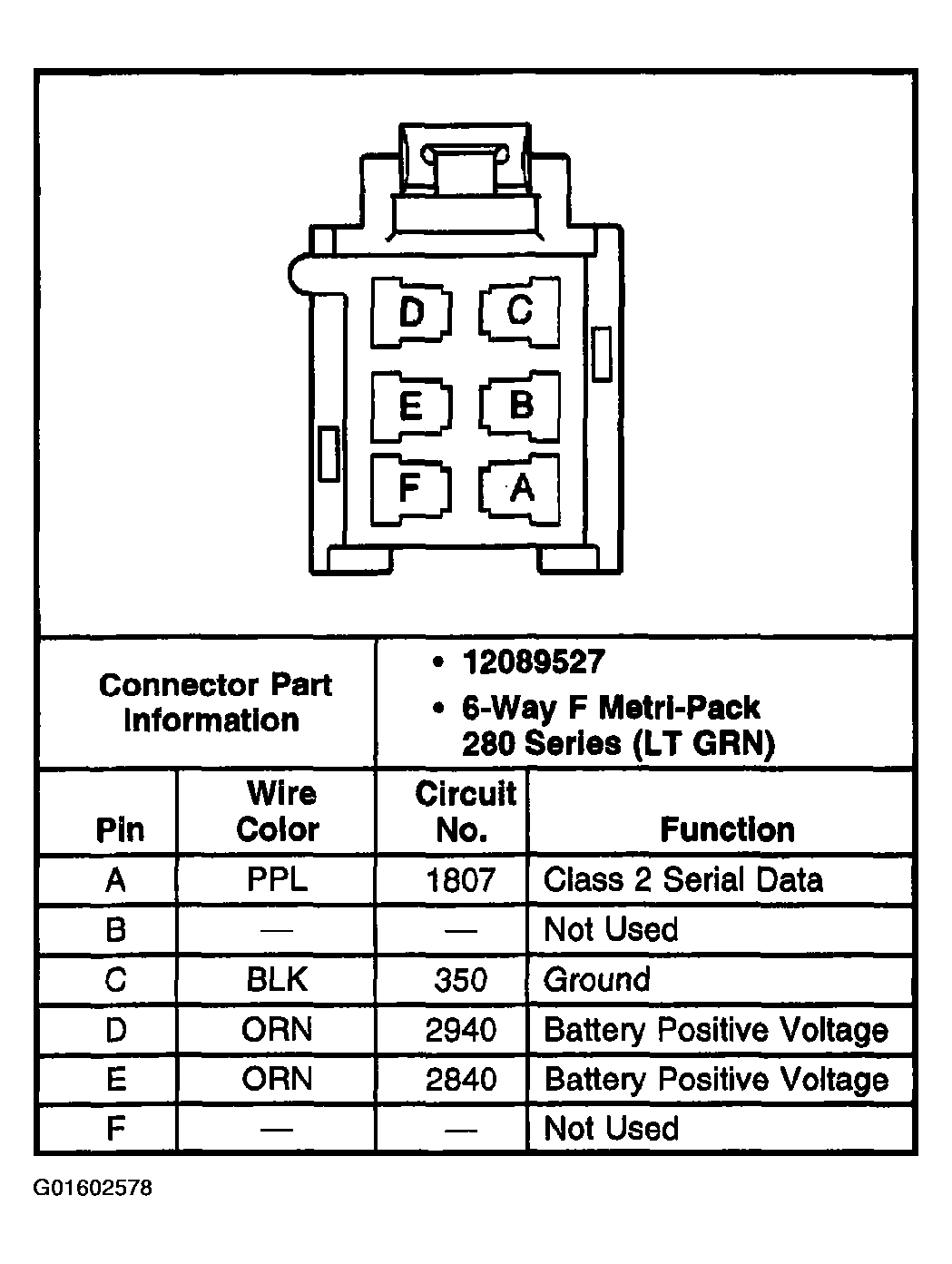

Fig 1: Steering Column Module C1

G01602578

Courtesy of GENERAL MOTORS CORP.
