Removal Procedure

  1. Remove the rear compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR .
  2. Disconnect the electrical connector from the cellular telephone module.
  3. Remove the four fasteners (3) retaining the Cellular telephone module and bracket assembly (2) to the rear shelf carrier (1).
  4. Remove the Cellular telephone module and mounting bracket assembly (2) from the rear shelf carrier.

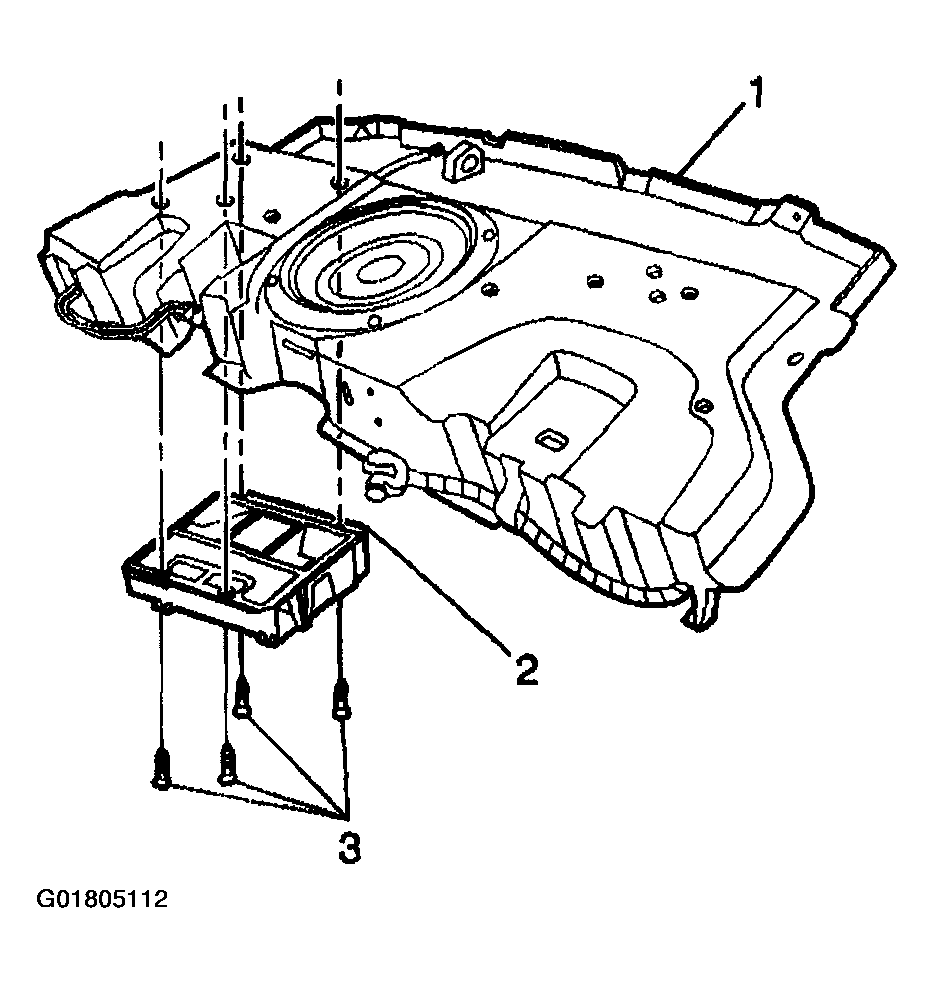

    Fig 1: Removing Telephone Module & Bracket Assembly & Fasteners
    G01805112Courtesy of GENERAL MOTORS CORP.
  5. Release the Cellular telephone module mounting bracket retaining tabs (2) and slide the Cellular telephone module (3) out of the mounting bracket (1).

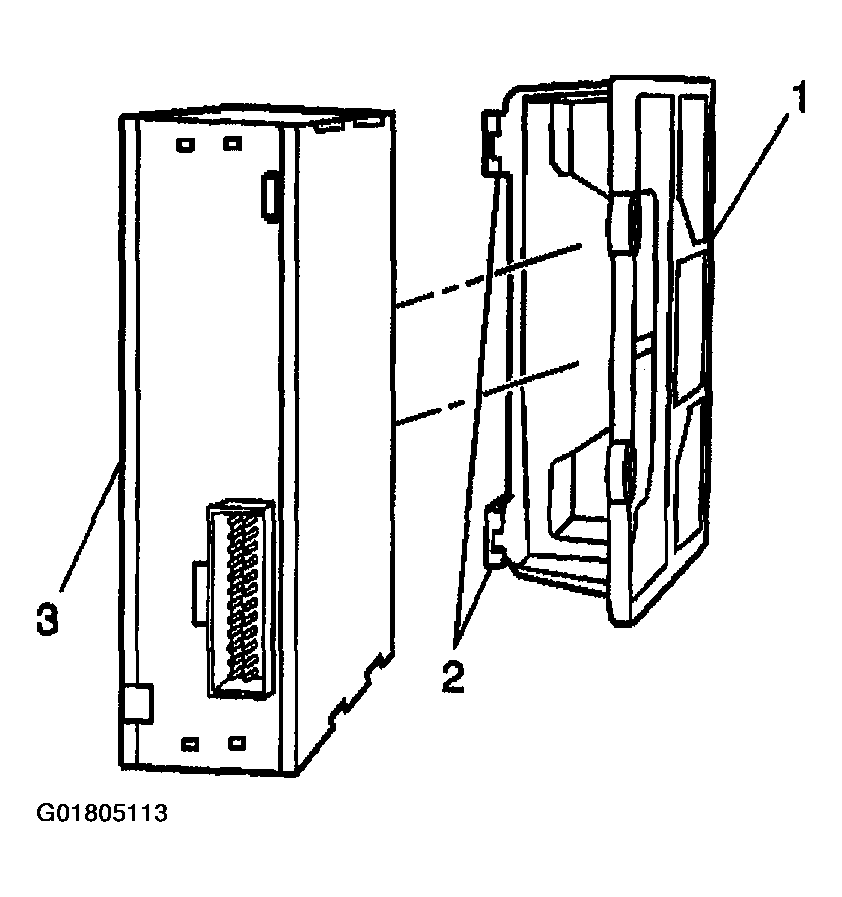

    Fig 2: Releasing Telephone Module Mounting Bracket Retaining Tabs & Slide Telephone Module Out Of Bracket
    G01805113Courtesy of GENERAL MOTORS CORP.
