Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade support (1).
  2. Install the sunshade support fastener.
  3. Connect the electrical connector.
  4. Push the electrical connector and wiring above the headliner.
  5. Align the sunshade outboard bezel with the holes in the retainer.
  6. Install the 3 fasteners.

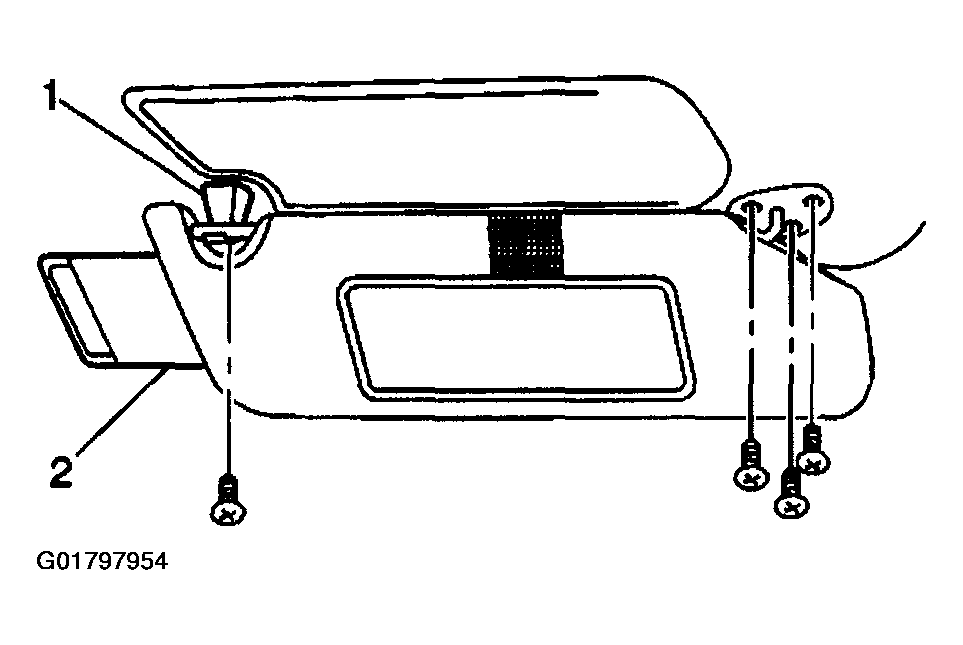

    Fig 1: Installing Fastener & Sunshade Support
    G01797954Courtesy of GENERAL MOTORS CORP.
