Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release both assist strap escutcheons.
  2. Gently pry out on the outer edge of the escutcheon.
  3. Release the escutcheon and slide it to the center of the assist strap.
  4. Remove the 2 fasteners.
  5. Remove the assist strap.

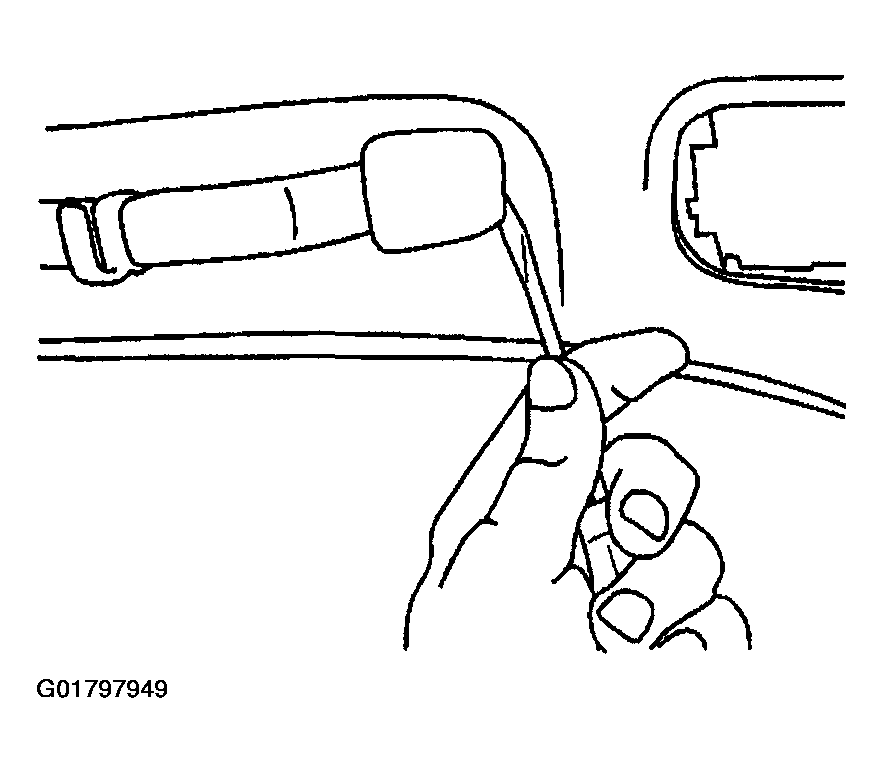

    Fig 1: Removing Assist Strap
    G01797949Courtesy of GENERAL MOTORS CORP.
