Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood (1) to the body with the aid of an assistant.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners (2) in order to secure the upper hood hinge (3) to the lower hood hinge (5).

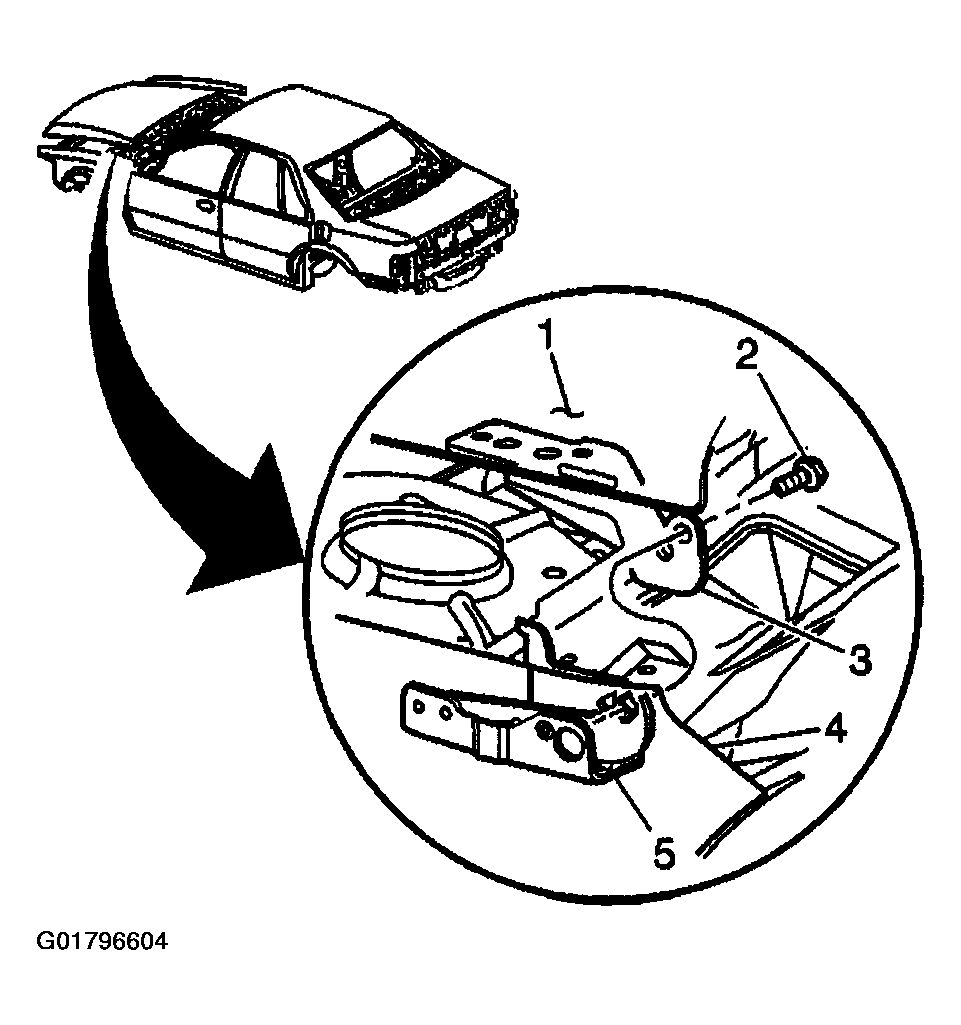

    Fig 1: Installing Hood Hinge Pivot Fasteners
    G01796604Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  3. Install the hood assist rods. Refer to Assist Rod Replacement - Hood .
  4. Connect the underhood lamp connector.
  5. Install the hood insulator. Refer to Hood Insulator Replacement .
  6. Adjust the hood if necessary. Refer to Hood Adjustment .
  7. Remove the tape from the hood and the fenders.
  8. Close the hood.
