Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hood release cable (1) to the hood latch (2).

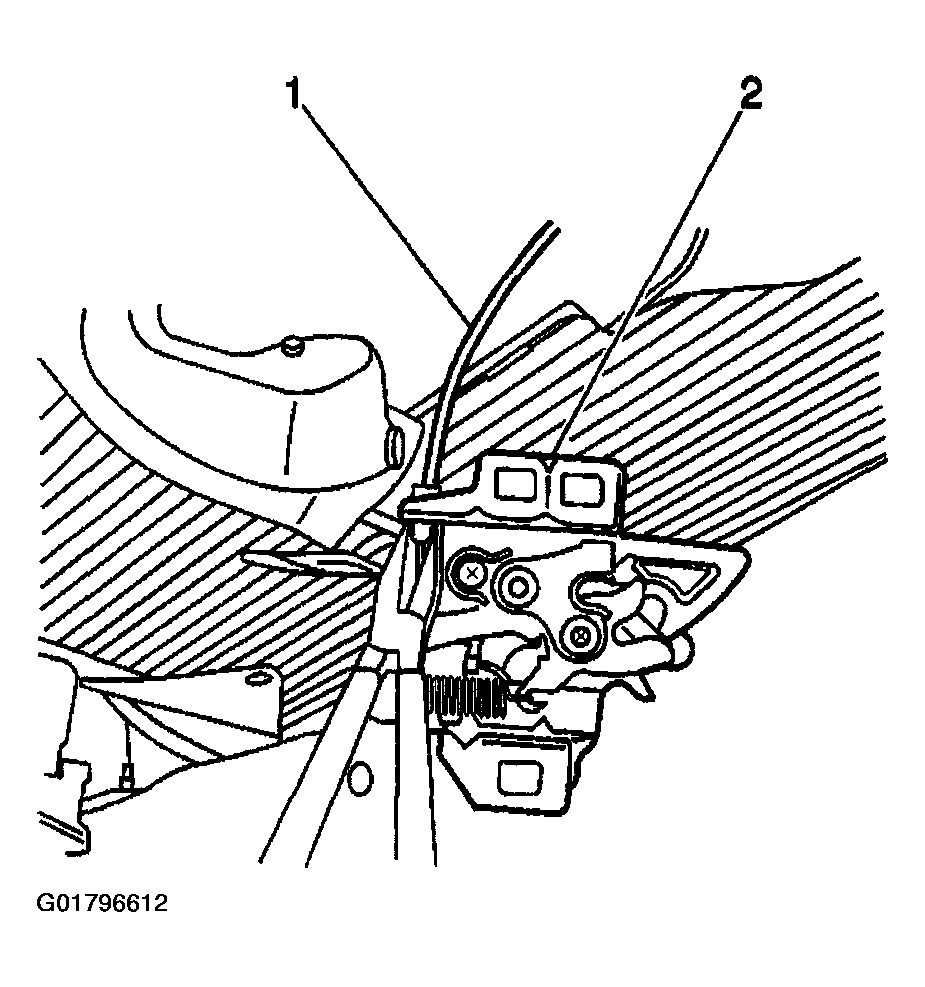

    Fig 1: Connecting Hood Release Cable To Hood Latch
    G01796612Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch (2) to the hood latch support (1).

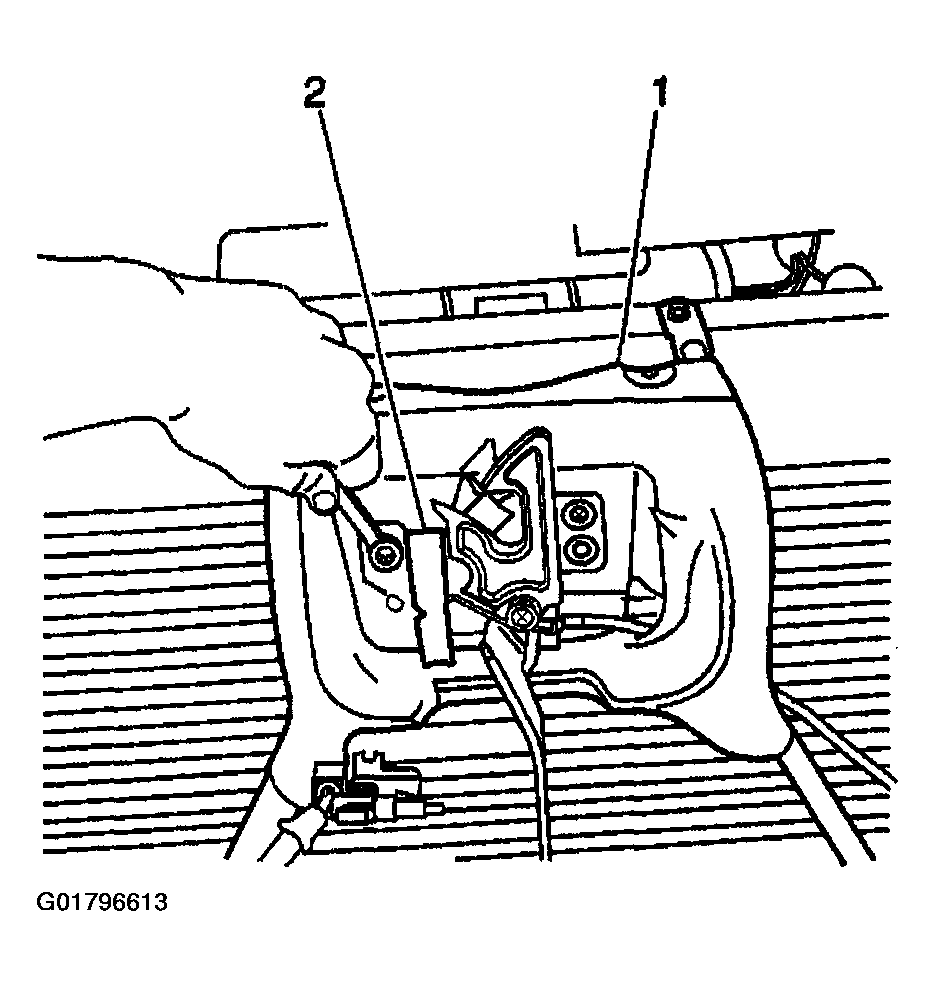

    Fig 2: Installing Hood Latch To Hood Latch Support
    G01796613Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the fasteners in order to secure the hood latch (2) to the hood latch support (1).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  4. Slowly lower the hood and check the hood latch for the proper alignment.
  5. Adjust the hood latch as necessary. Refer to Hood Latch Adjustment .
  6. Install the upper filler panel. Refer to Filler Panel Replacement - Upper .
  7. Close the hood.
