Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air deflector.

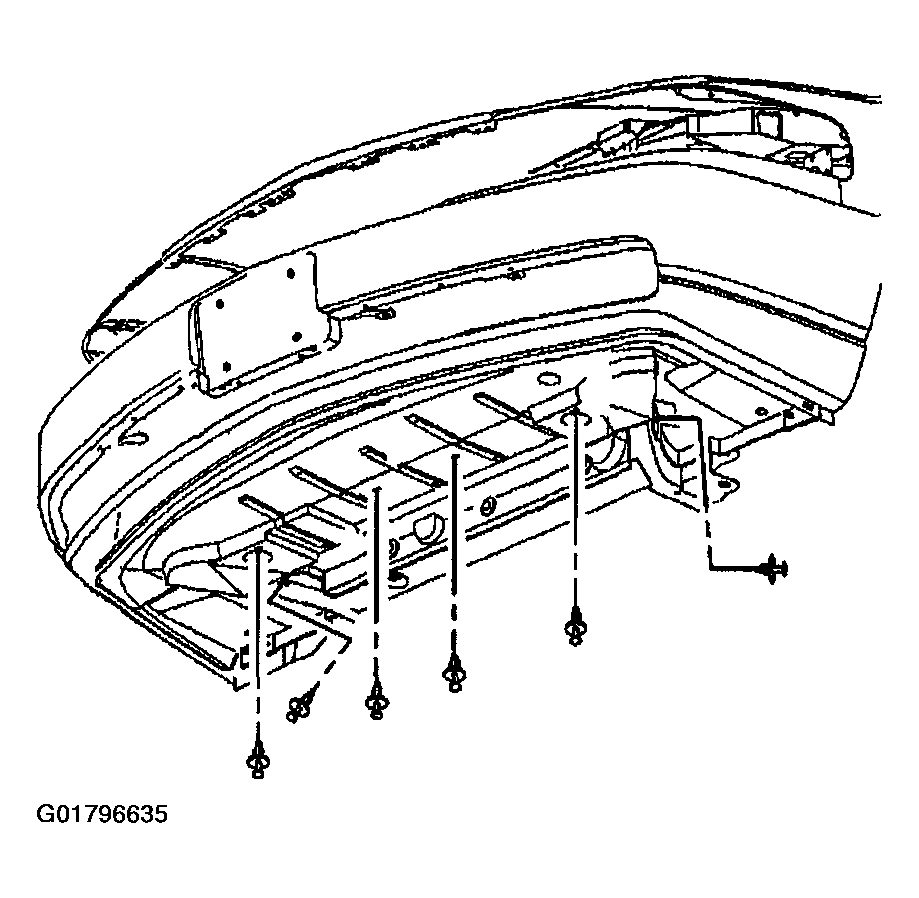

    Fig 1: Installing Front Air Deflector
    G01796635Courtesy of GENERAL MOTORS CORP.
  2. Install the push in retainers that retain the front air deflector to the vehicle.
  3. Lower the vehicle.
