Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .

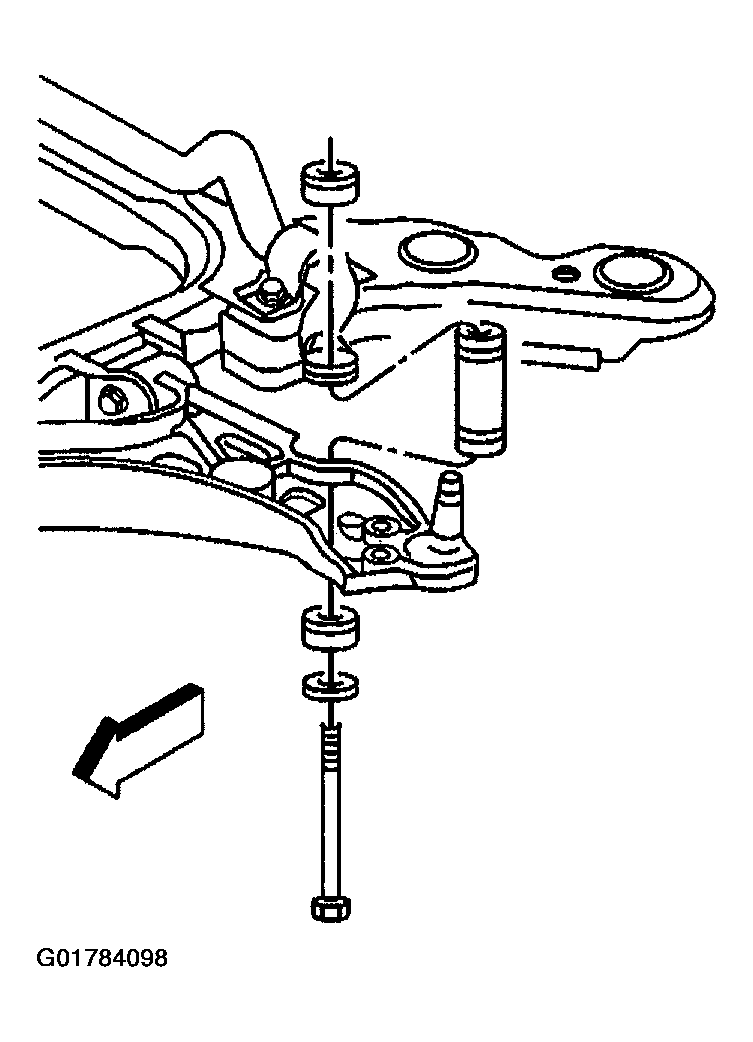

    Fig 1: View Of Stabilizer Shaft Link
    G01784098Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft link insulators, spacer, nut and bolt.

    Tighten

    Tighten the stabilizer shaft link nut to 17 N.m (13 lb ft).

  2. Install the front wheels and tires.
  3. Lower the vehicle.
