Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer link.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the stabilizer link retaining nuts.

    Tighten

    Tighten the stabilizer shaft link retaining nuts to 55 N.m (41 lb ft).

  3. Install the front tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.

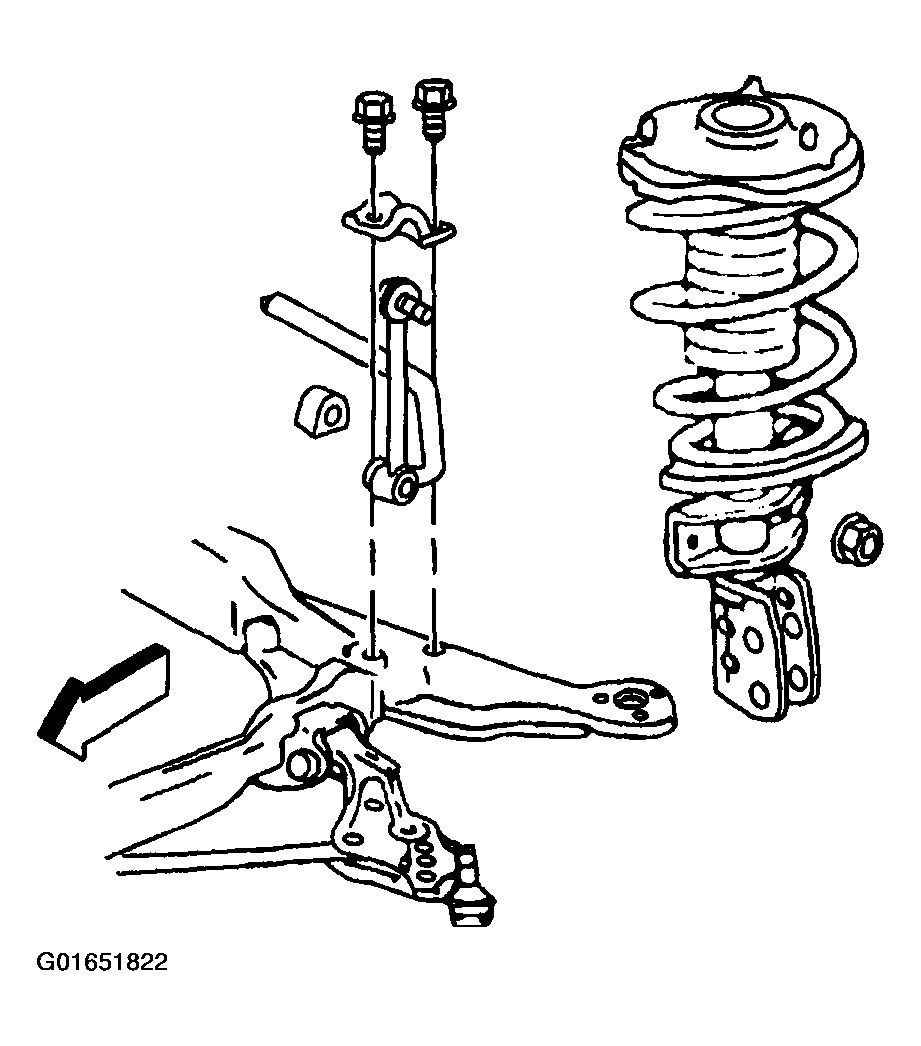

    Fig 1: View of Stabilizer Link
    G01651822Courtesy of GENERAL MOTORS CORP.
