Removal & Installation

WARNING: This page is about a different car, the 2000 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove driver's hush panel. Disconnect theft deterrent module connector. See Fig 1 . Move bottom of module toward brake pedal first and then slide down from bracket to remove. To install, reverse removal procedure.

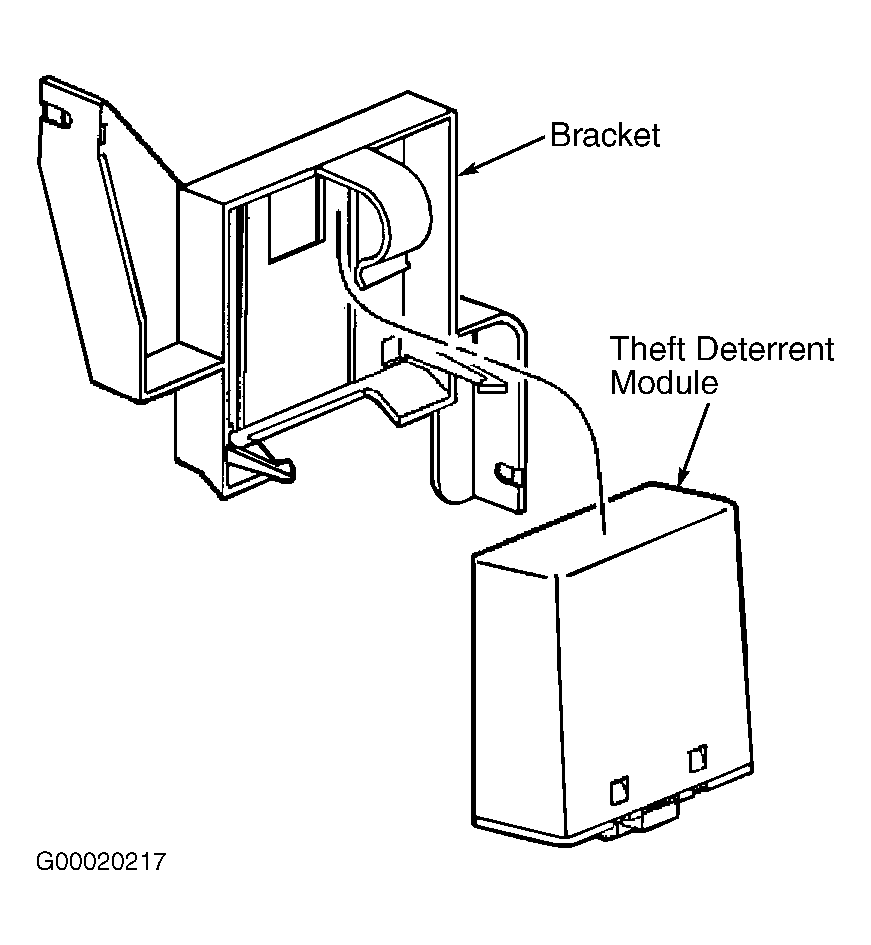

Fig 1: Removing Theft Deterrent Module
G00020217Courtesy of GENERAL MOTORS CORP.
