Installation Procedure

Important:  Do not pinch the vanity mirror wires (1) when you install the sunshades and support fasteners.

1. Complete the following steps with the aid of an assistant:
   1. 1.1. Install the headliner (2) into the vehicle.
   2. 1.2. Ensure the mirror and rain sense electrical connectors are visible.
   3. 1.3. Engage the locator magnet at the rear of the headliner.
   4. 1.4. Firmly engage the hook and loop attachments at the center of the headliner.
   5. 1.5. Attach the sunshade supports (5). Refer to Sunshade Replacement .

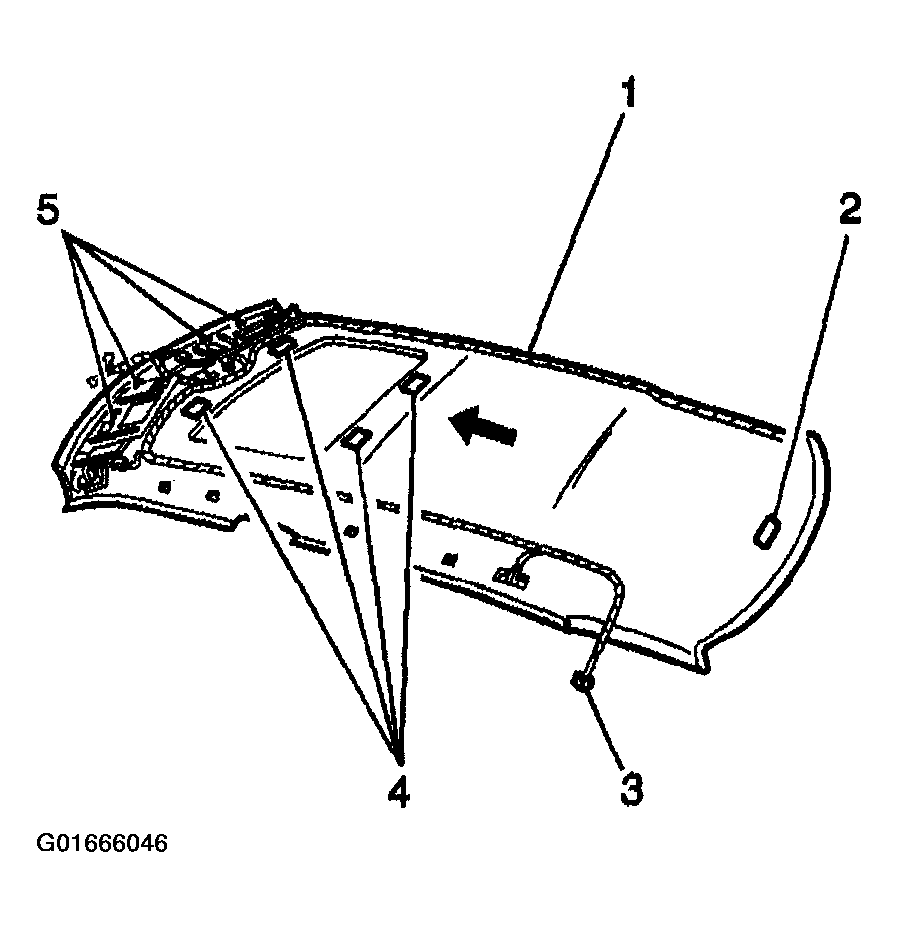

   Fig 1: Headliner & Components

   Courtesy of GENERAL MOTORS CORP.
2. Install the interior roof mounted courtesy lamps. Refer to COURTESY LAMP REPLACEMENT - REAR QUARTER .
3. Install the sunshades. Refer to Sunshade Replacement .
4. Connect the left rear quarter electrical connectors (1, 2).

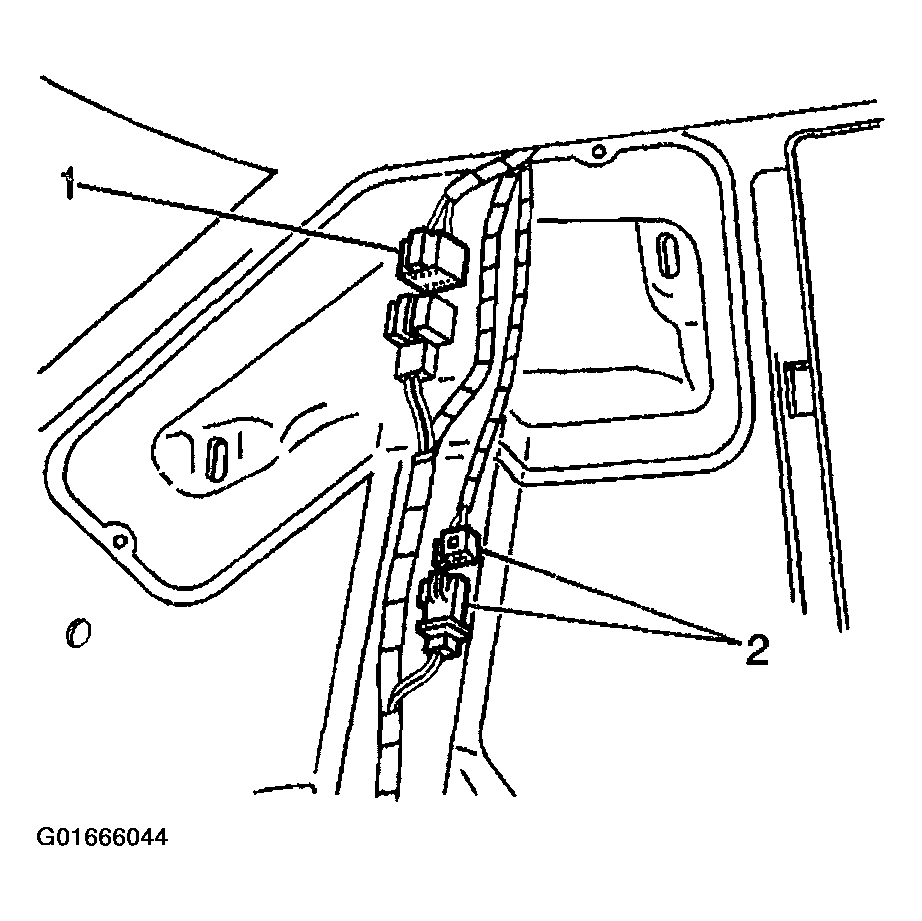

   Fig 2: Locating Left Rear Quarter Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.
5. Connect the right rear quarter electrical connectors.
6. Install both of the shoulder belt to headlining escutcheons. Refer to SEAT BELT REPLACEMENT - DRIVER OR PASSENGER .
7. Install both of the windshield pillar garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar .
8. Install the quarter trim panels. Refer to Trim Panel Replacement - Rear Quarter Upper .
9. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

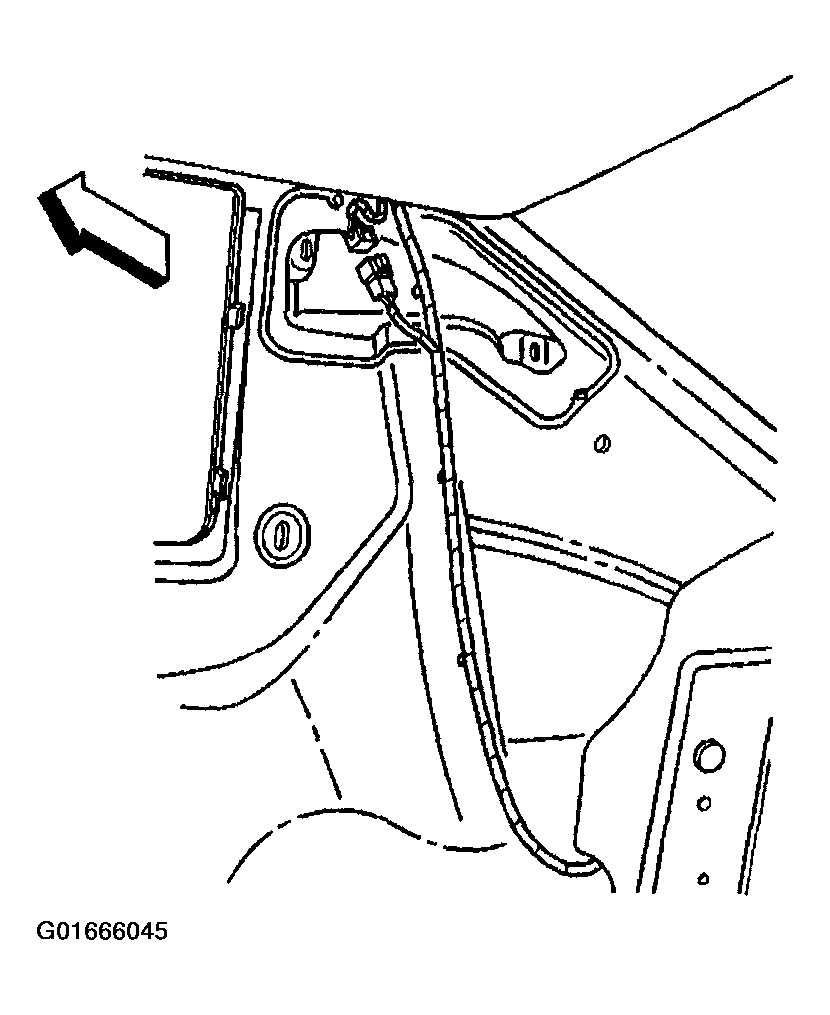

   Fig 3: Right Rear Quarter Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.

   Important:  With the palm of your hand, press the headliner (1) firmly at the hook and loop attachments (4) in order to secure.

10. Ensure not to leave imprints into the headliner while securing the hook and loop attachment.
11. Install the center console. Refer to CONSOLE REPLACEMENT (D55) .
12. Install both front seats. Refer to SEAT REPLACEMENT - BUCKET .
13. Close the doors.

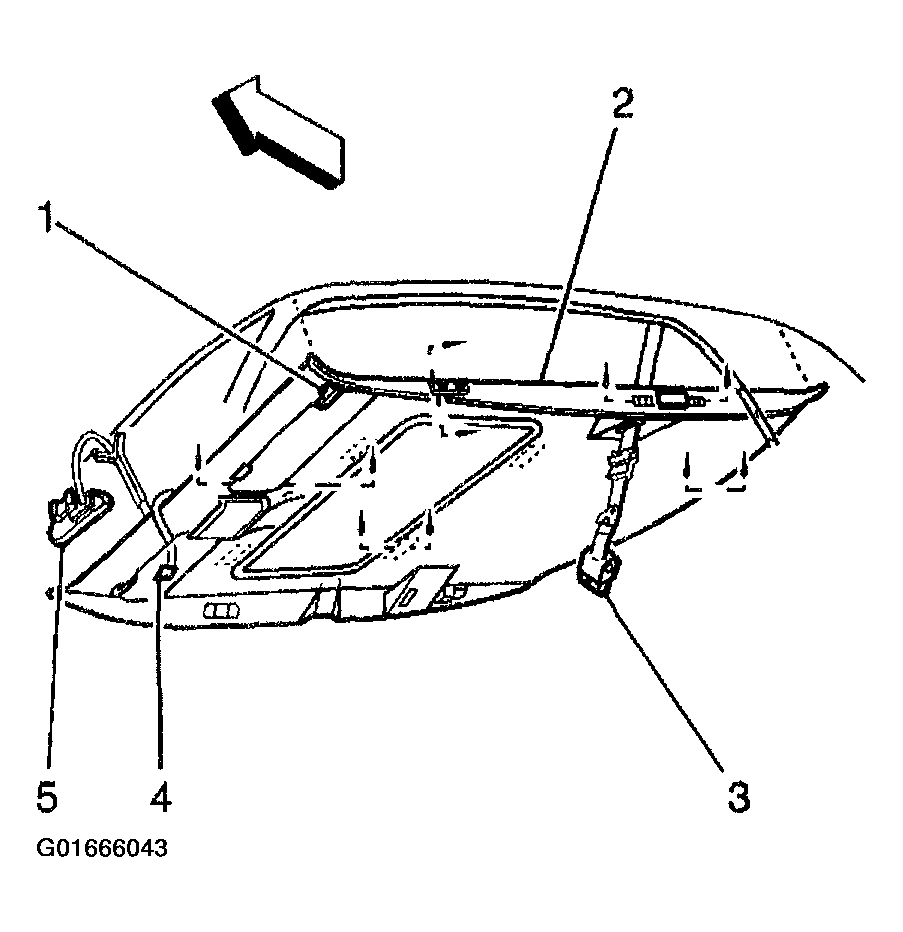

    Fig 4: Headliner & Components (Alternate View)

    Courtesy of GENERAL MOTORS CORP.
