Connector Identification

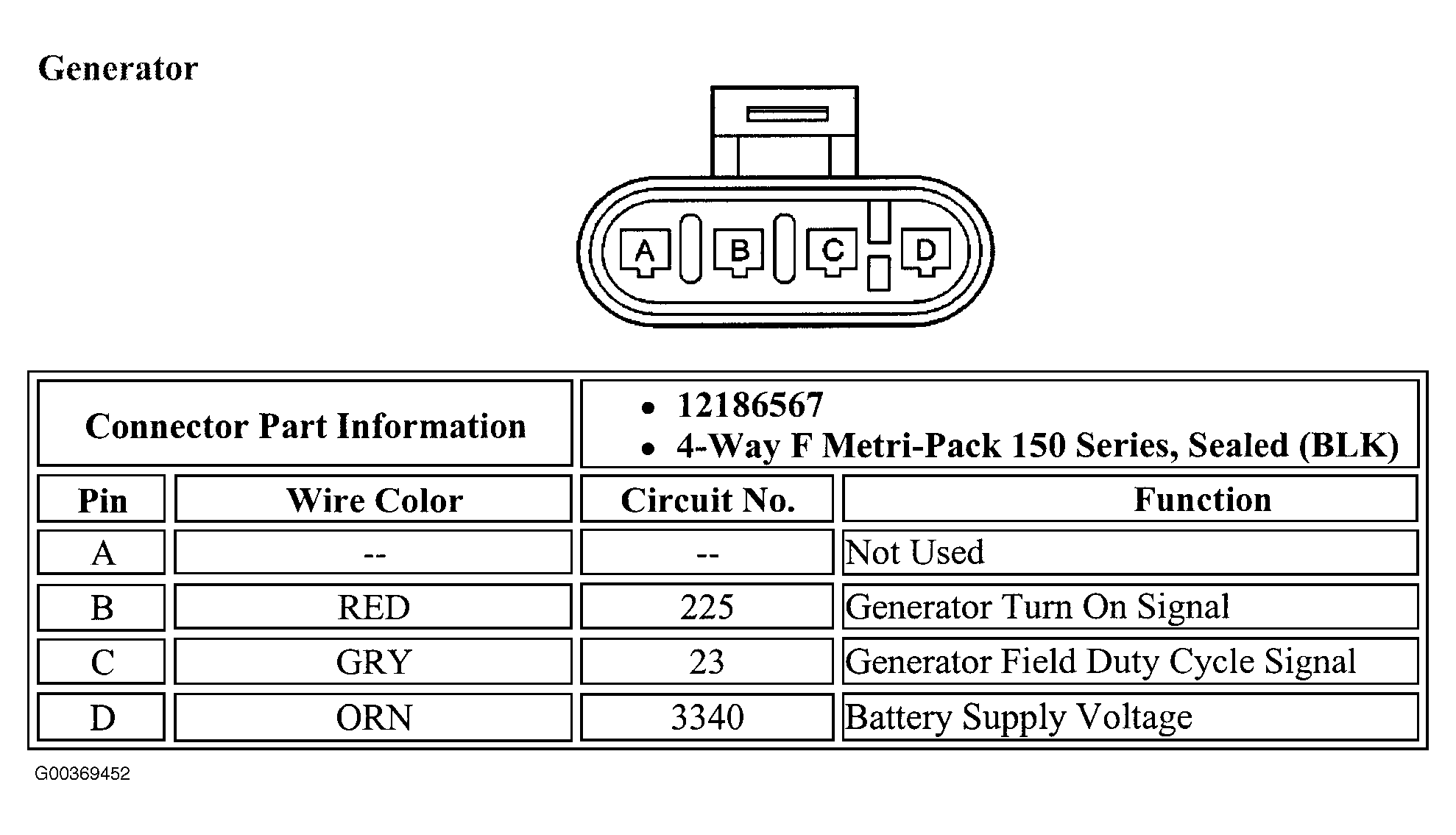

Fig 1: Identifying Generator Connector

G00369452

Courtesy of GENERAL MOTORS CORP.
