Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 4 .
COMPONENT LOCATIONS

Component Location
Battery Below Passenger's Side Rear Seat
Dash Integration Module Behind Right Side Of Dash, Near Blower Motor
Data Link Connector Below Left Side Of Instrument Panel, Near Steering Column
Driver's Door Module In Driver's Door, Near Radio Speaker
Instrument Panel Module Behind Center Of Dash, Part Of Climate Control Panel
Rear Integration Module Behind Rear Seat Back
Rear Fuse Block Below Rear Seat
Remote Control Door Lock Receiver Center Of Rear Compartment, Under Package Shelf
Underhood Fuse Block On Right Side Of Engine Compartment, Near Power Steering Pump
Fig 1: Locating Rear Fuse Block
G00063093Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Data Link Connector
G00016935Courtesy of GENERAL MOTORS CORP.

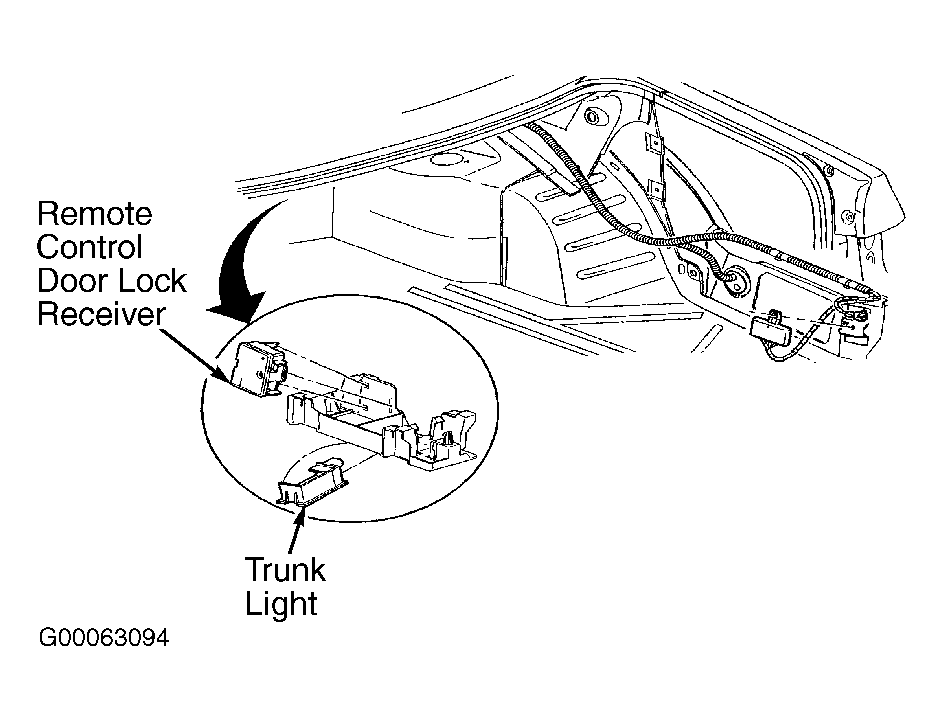

Fig 3: Locating Remote Control Door Lock Receiver
G00063094Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Rear Integration Module
G00016940Courtesy of GENERAL MOTORS CORP.
