Removal & Installation

Remove door trim panel. See DOOR TRIM PANEL  . Disconnect electrical connectors. Remove door module by releasing retaining tabs. To install, reverse removal procedure. See Fig 1 .

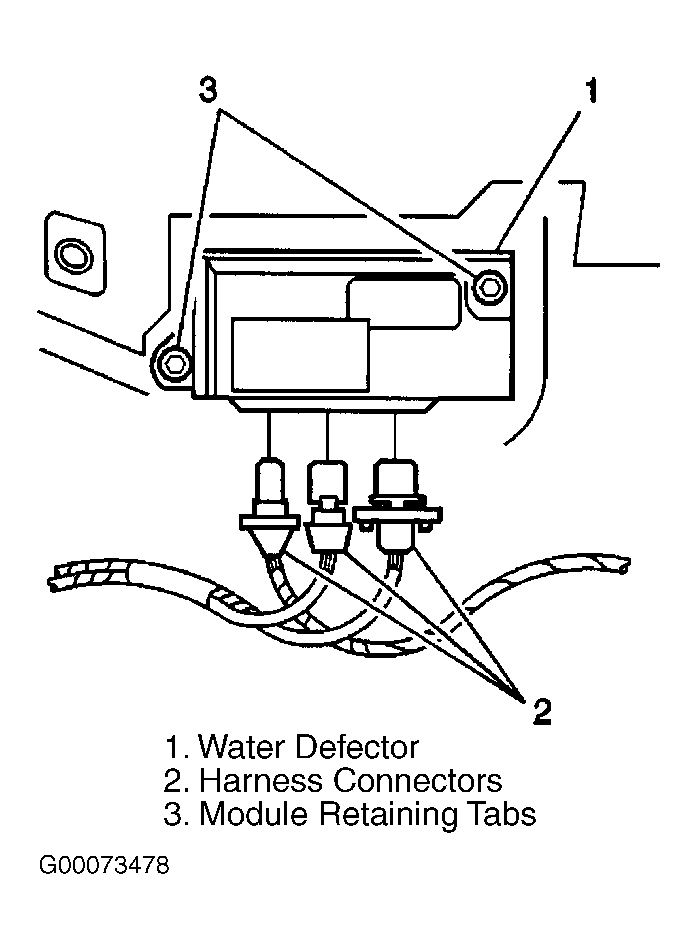

Fig 1: Removing & Installing Door Module

Courtesy of GENERAL MOTORS CORP.
