Memory Seat Module: Removal

  1. Remove front seat cushion assembly. See SEATBACK & SEAT CUSHION COVERS  .

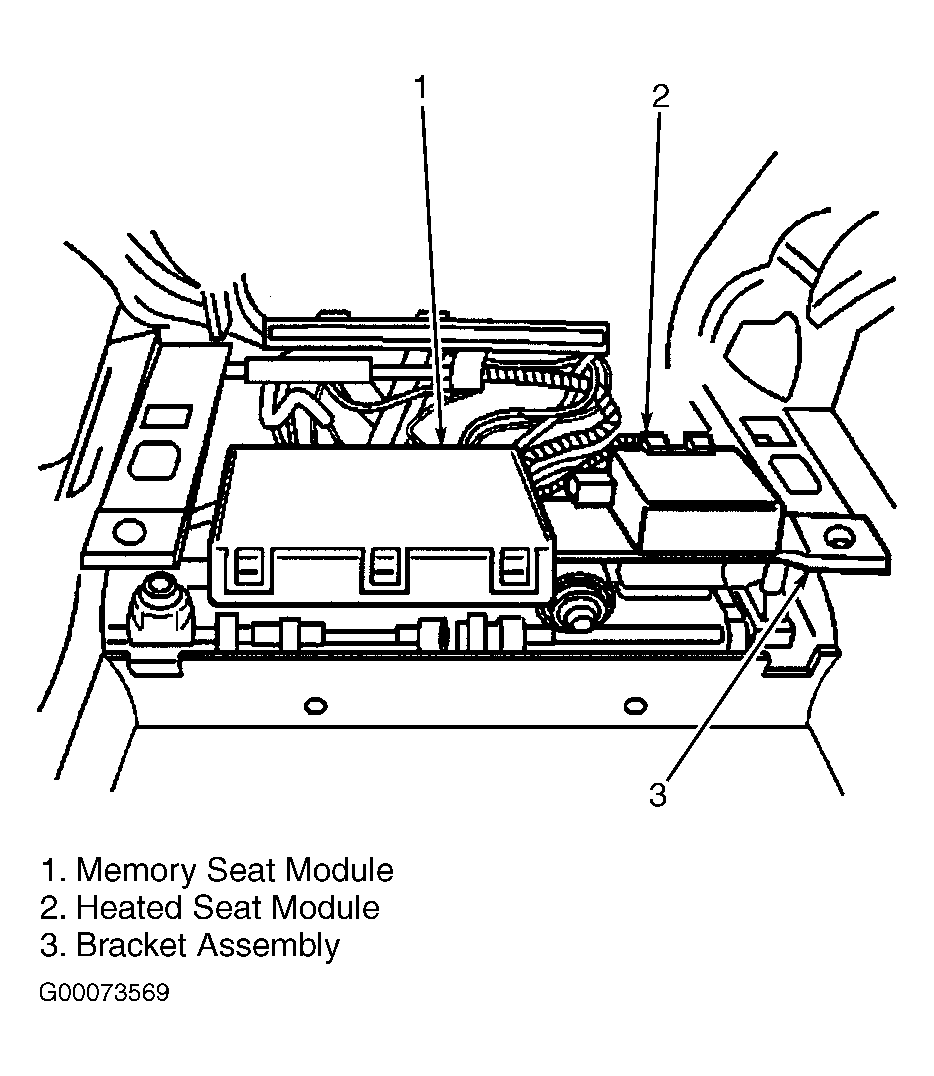

  2. Disconnect electrical connectors from heated seat module (2) and memory seat module (1). See Figure .
  3. Bend tabs on module and bracket assembly to remove module or modules (1, 2) and bracket assembly from seat adjuster.
  4. Remove fasteners retaining memory seat module (1) to module bracket.
  5. Remove memory seat module (1) from bracket.
