Installation Procedure

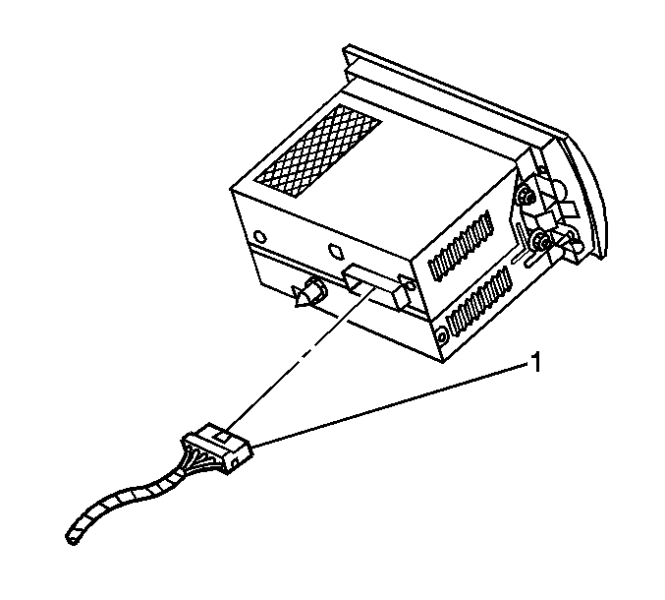

Fig 1: Navigation Display Electrical Connector
GM747356Courtesy of GENERAL MOTORS COMPANY
  1. Partially install the navigation display in order to connect the electrical connector (1).

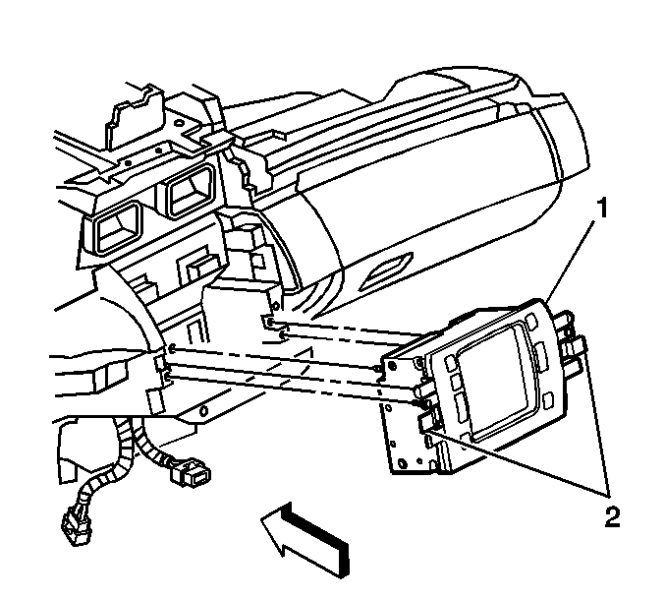

    2. Fig 2: Navigation Display
    GM747358Courtesy of GENERAL MOTORS COMPANY
  2. Align the navigation display alignment pins to the IP opening, push the navigation display (1) toward the front of the vehicle, until an audible click is heard
  3. Pull on the navigation display (1) in order to verify the navigation display is secured to the IP
  4. Install the HVAC control
