Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 6 .
COMPONENT LOCATIONS

Component Location
Anti-Lock Brake/Torque Convert Clutch Switch On Brake Pedal Bracket, Upper Switch
Brakelight/Automatic Transmission Shift Lock Control Switch Near Top Of Brake Pedal Bracket, Lower Switch
Cruise Control Switches (DeVille) On Steering Wheel Pad
Cruise Control Switches (Eldorado) On Multifunction Switch Lever
Cruise Control Module (DeVille) On Left Side Of Firewall, Near Brake Booster
Cruise Control Module (Eldorado) On Left Front Strut Tower
Cruise Control Release Switch On Brake Pedal Bracket
Powertrain Control Module Front Left Corner Of Engine Compartment, Below Air Cleaner Housing
Rear Fuse Block (DeVille) Below Rear Seat
Rear Fuse Block (Eldorado) Behind Rear Passenger Seat Back, On Electronics Bay
Underhood Fuse Block (DeVille) Right Side Of Engine Compartment
Underhood Fuse Block (Eldorado) Left Side Of Engine Compartment, Near Shock Tower
Vehicle Speed Sensor On Transaxle Case Extension Housing

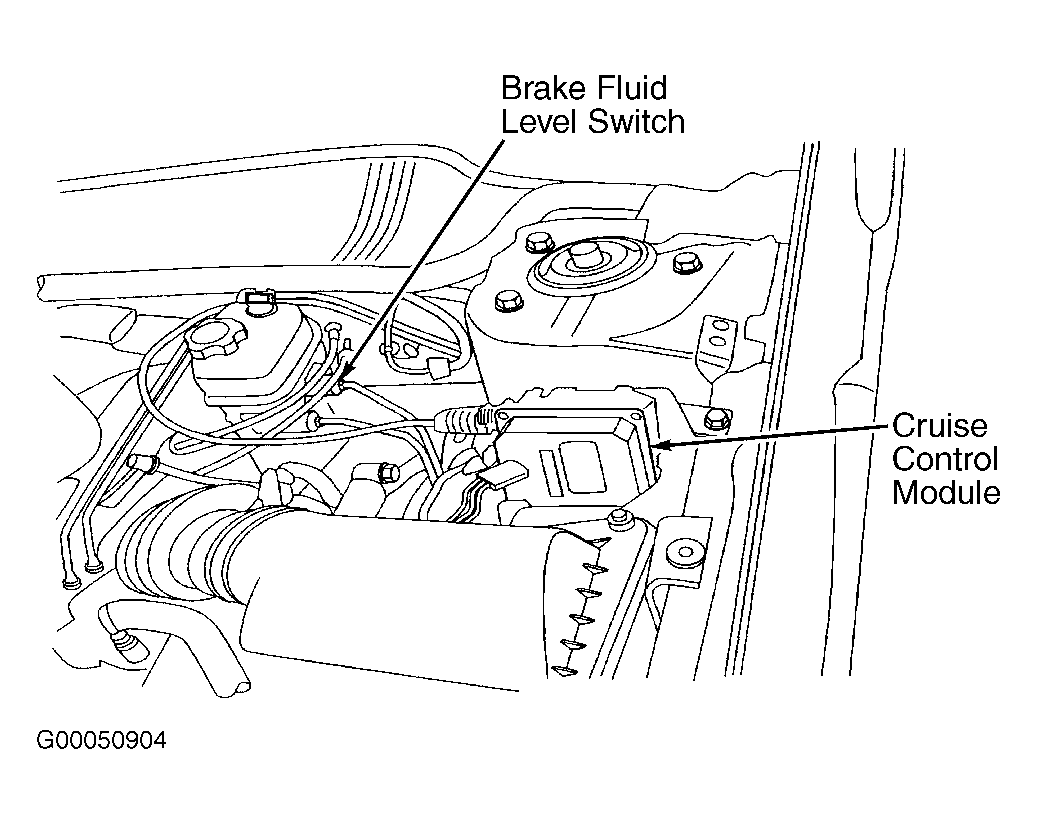

Fig 1: Locating Cruise Control Module (DeVille)
G00050904Courtesy of GENERAL MOTORS CORP.

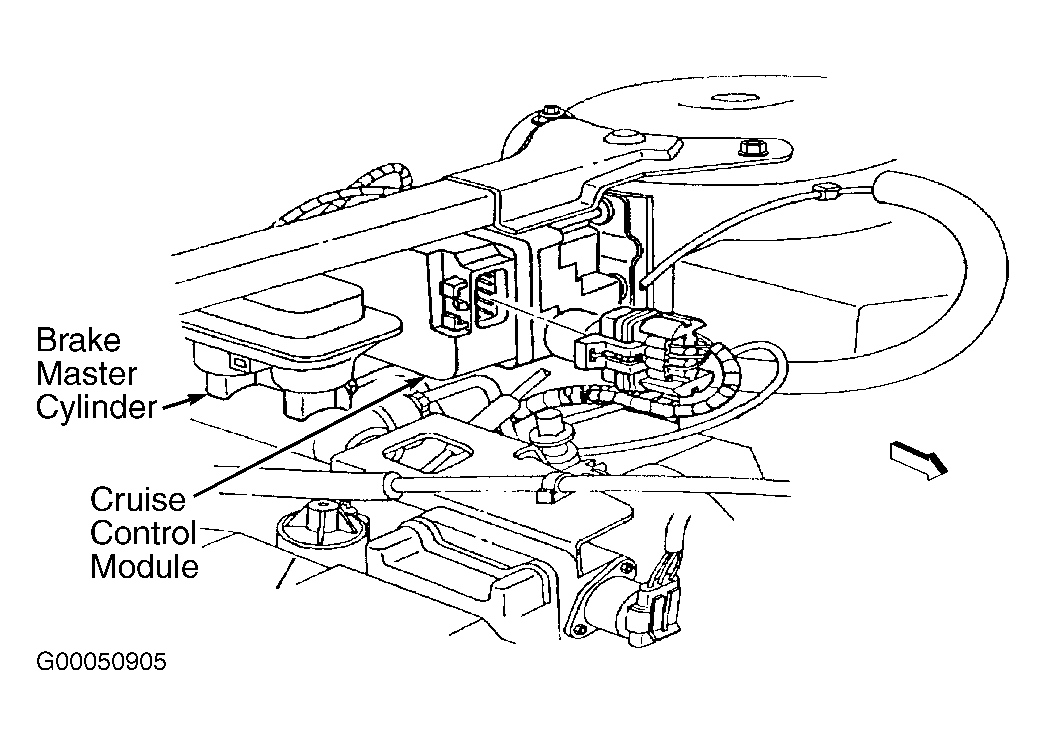

Fig 2: Locating Cruise Control Module (Eldorado)
G00050905Courtesy of GENERAL MOTORS CORP.

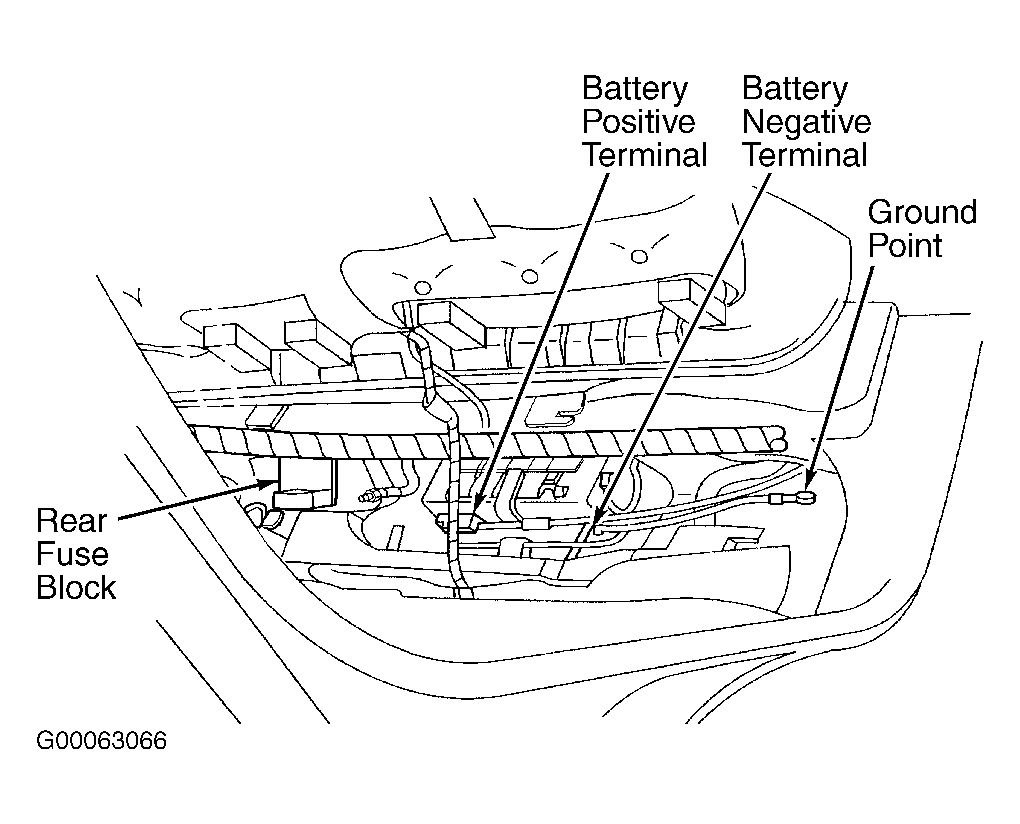

Fig 3: Locating Rear Fuse Block (DeVille)
G00063066Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Rear Fuse Block (Eldorado)
G00050899Courtesy of GENERAL MOTORS CORP.

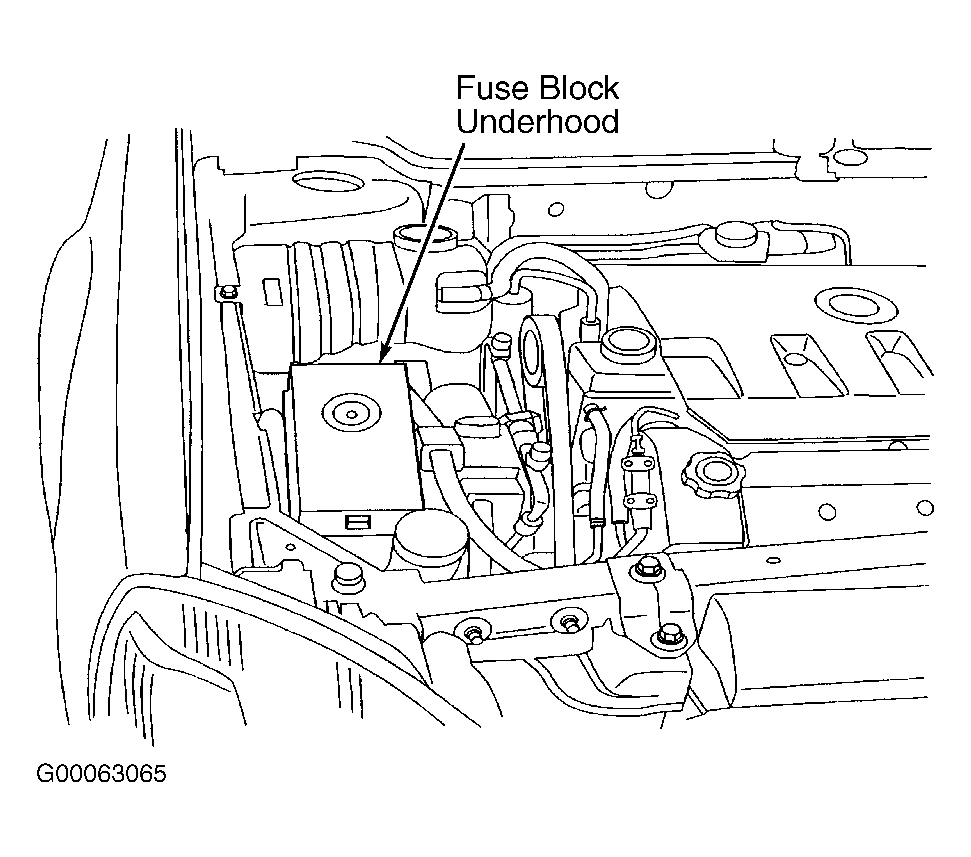

Fig 5: Locating Underhood Fuse Block (DeVille)
G00063065Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Underhood Fuse Block (Eldorado)
G00050900Courtesy of GENERAL MOTORS CORP.
