HVAC Control Panel: Notes

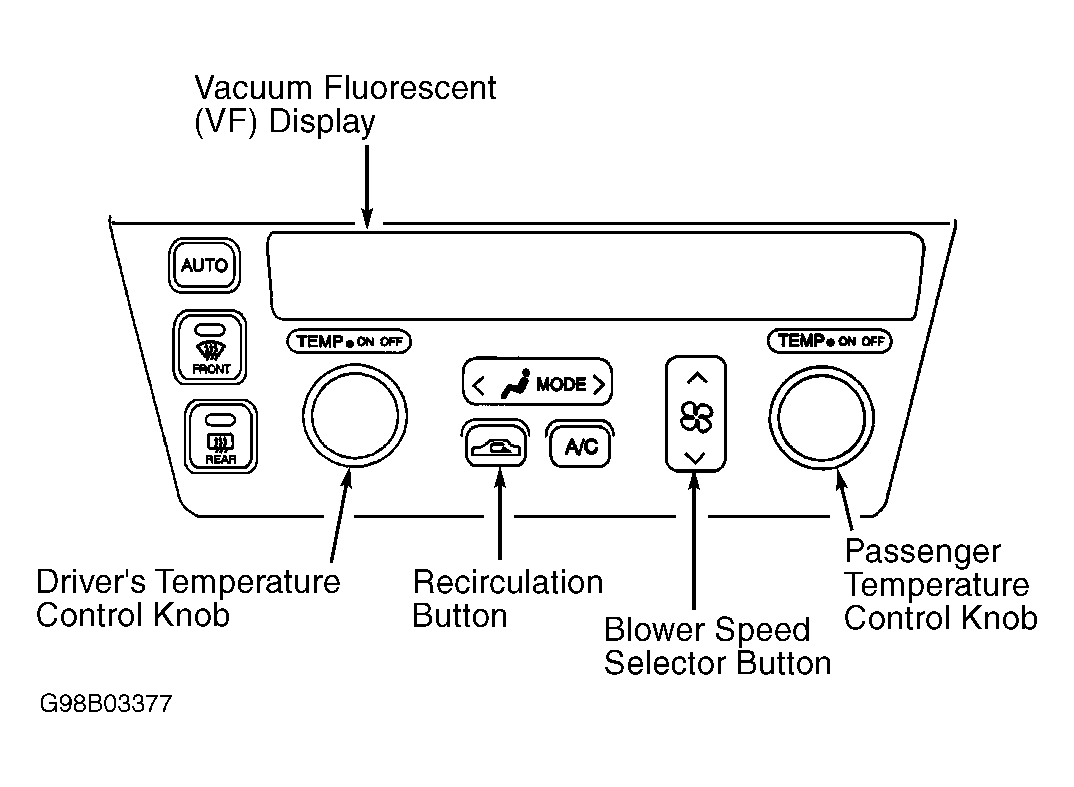

HVAC control panel contains Instrument Panel Integration Module (IPM). HVAC control panel allows operator to communicate with IPM to obtain desired settings. Functions of HVAC control panel include blower motor speed, mode operation, driver and passenger temperature settings, and air intake control. See Figure .
