Keyless Entry System Inoperative

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

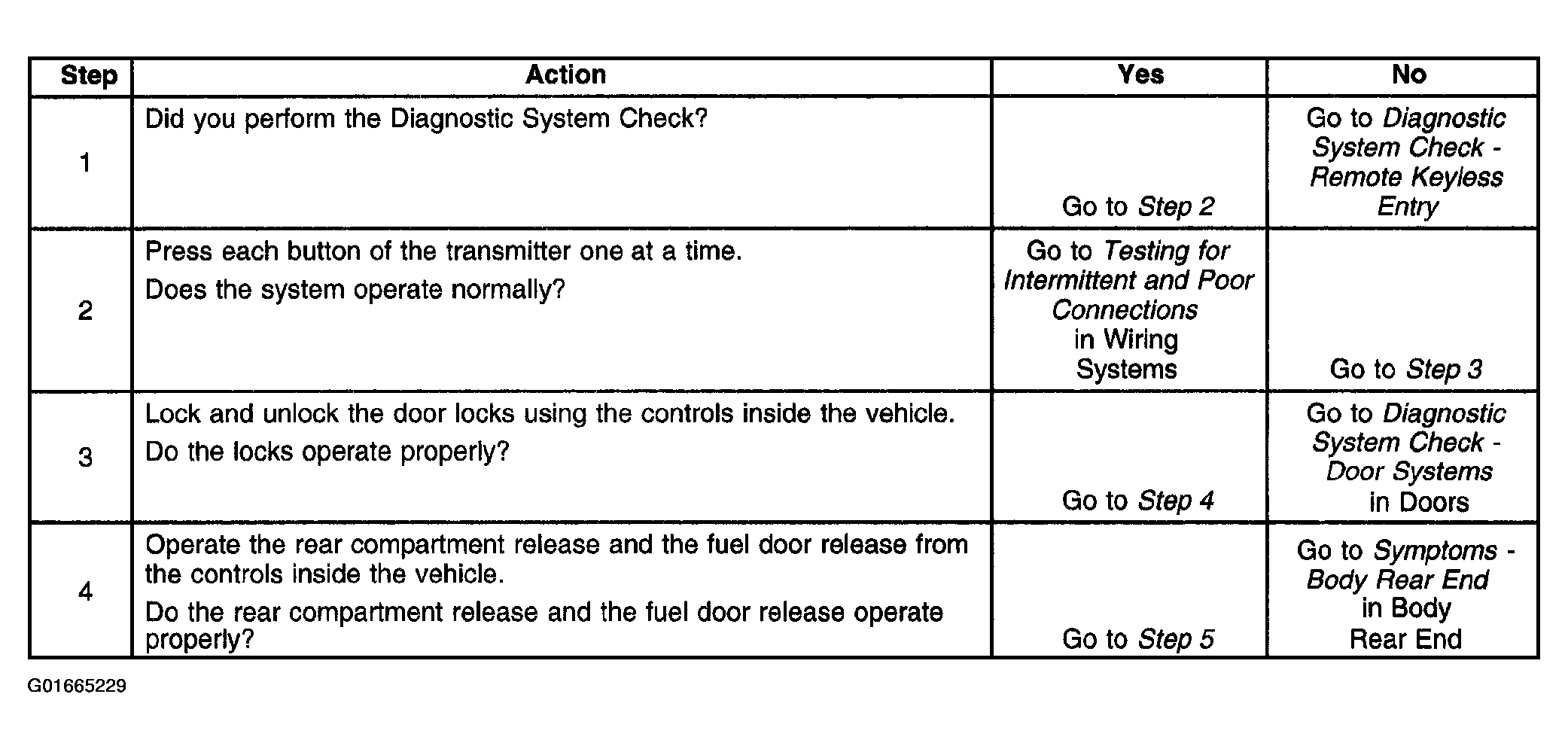

Fig 1: Keyless Entry System Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

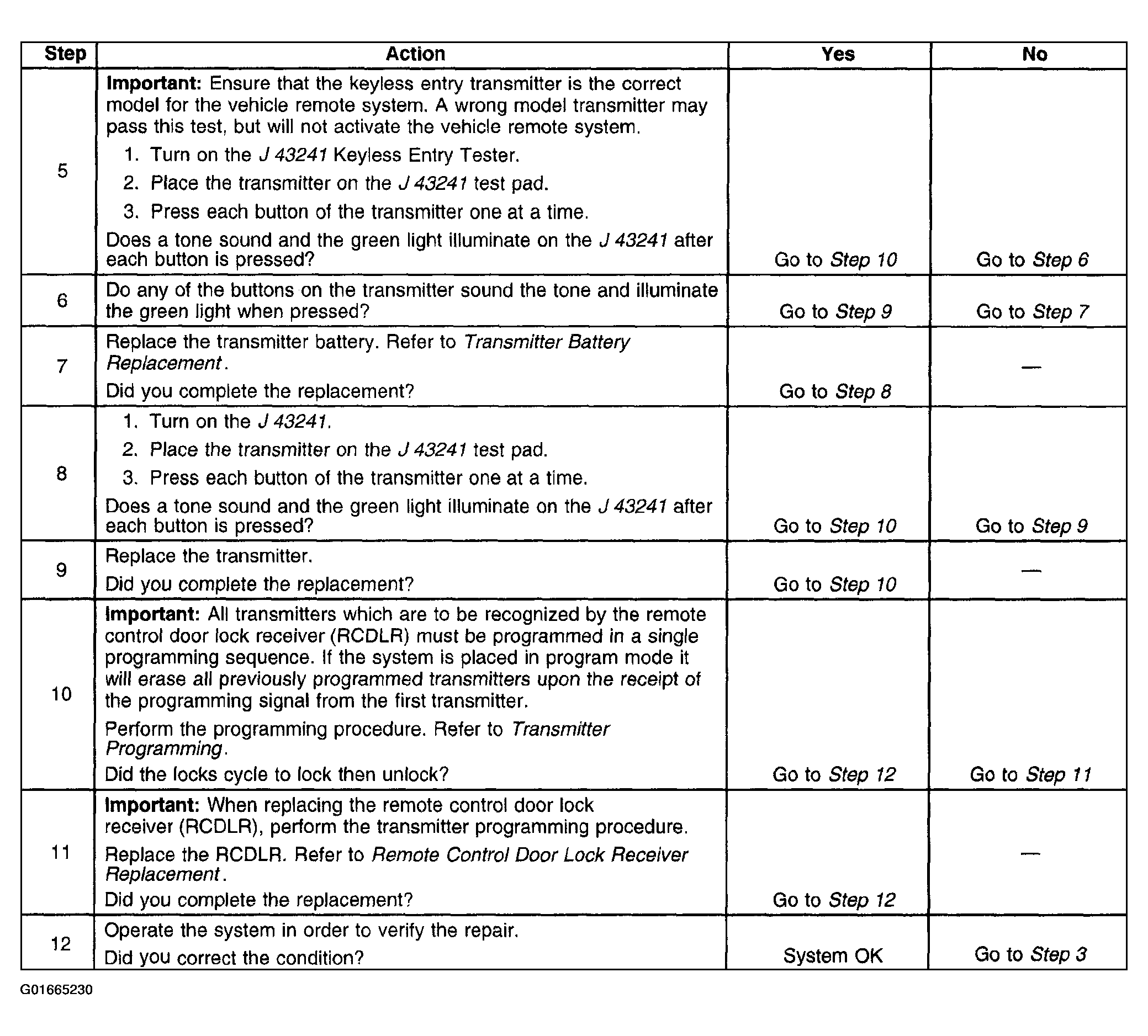

Fig 2: Keyless Entry System Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
