Ignition Module Installation - Left

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

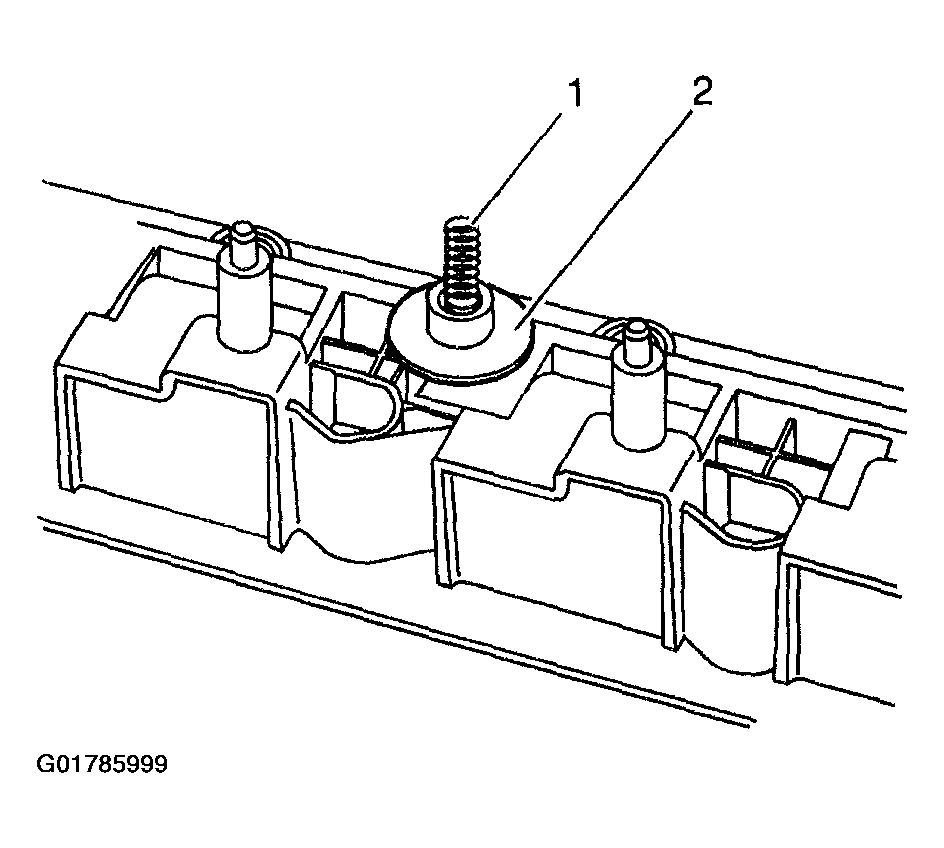

Ensure the RFI/ground spring (1) and the seal (2) are in place and inspect each for serviceability.

Fig 1: Locating RFI/Ground Spring & Seal
Courtesy of GENERAL MOTORS CORP.

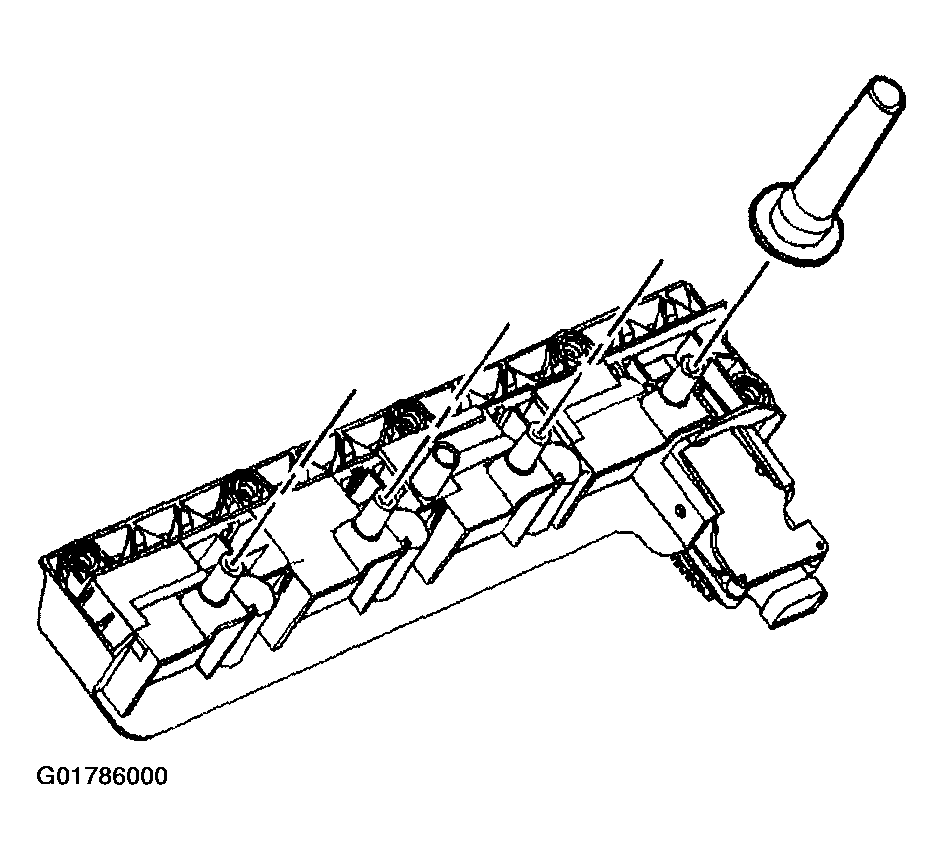

Install the left spark plug boots onto the ignition coil assembly.

Fig 2: Installing Left Spark Plug Boots Onto Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

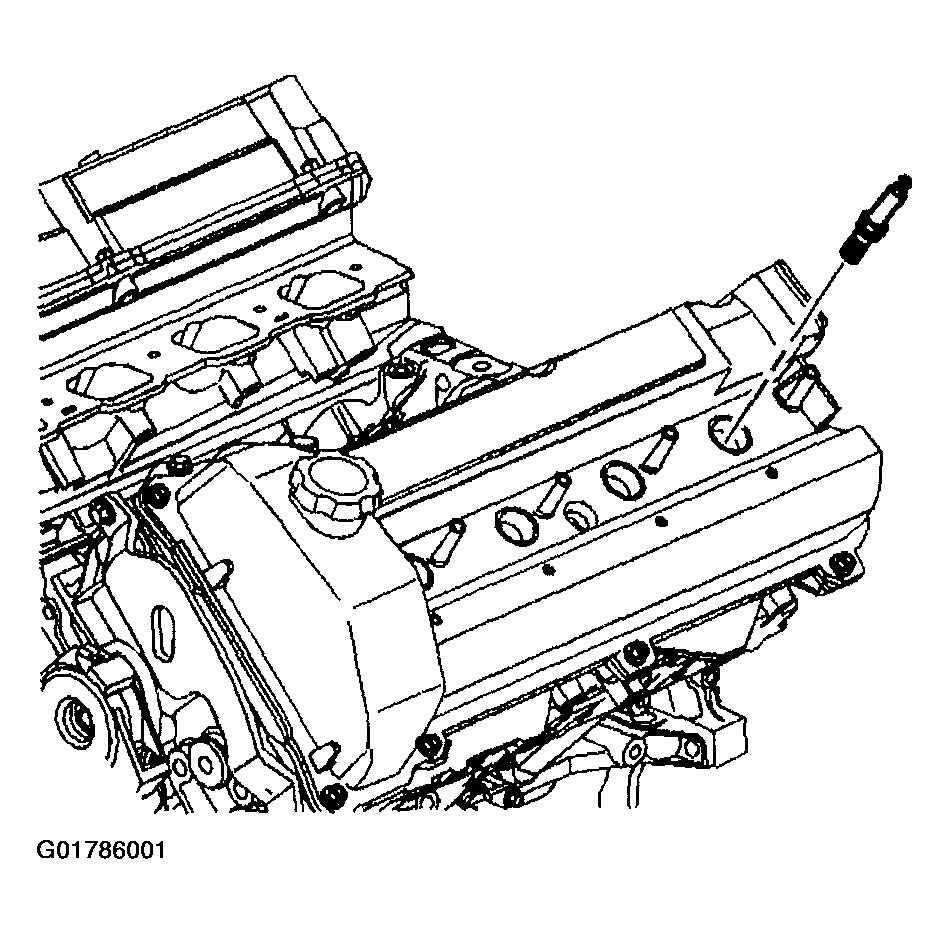

Install the left spark plugs.

Fig 3: Installing Left Spark Plugs
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the spark plugs to 15 N.m (11 lb ft)

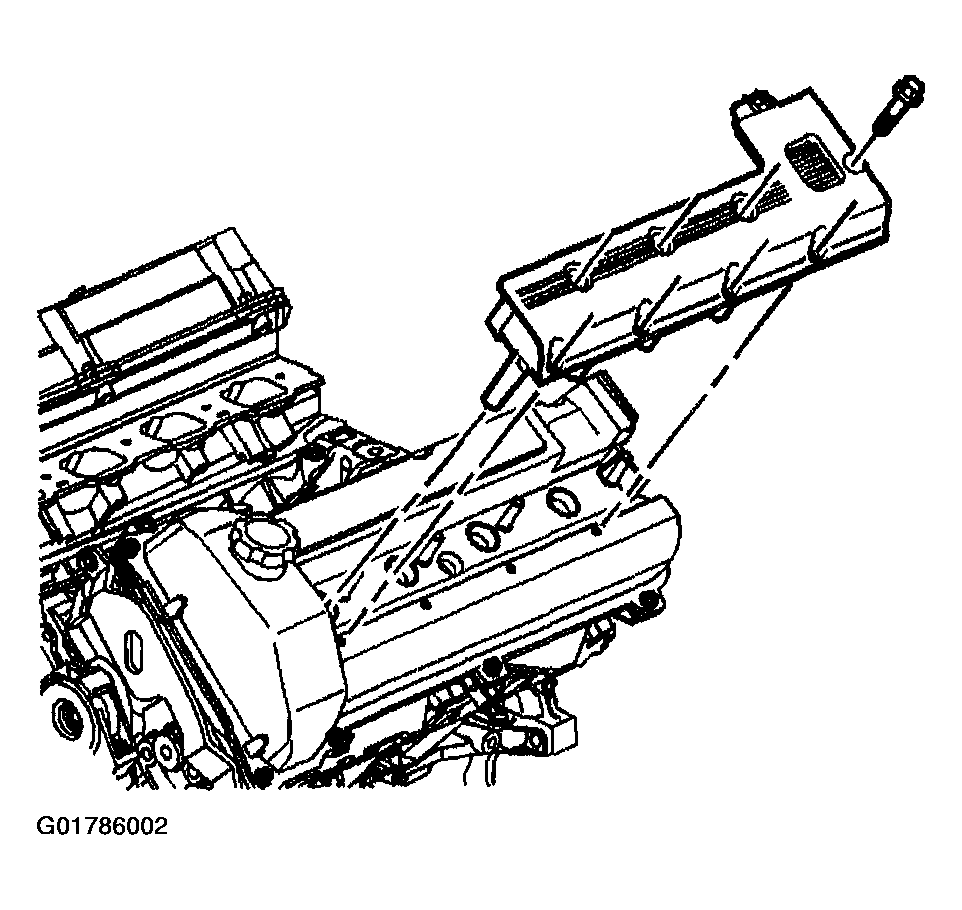

Position the ignition coil assembly on the left camshaft cover.

Fig 4: Positioning Ignition Coil Assembly On Left Camshaft Cover
Courtesy of GENERAL MOTORS CORP.

Important: DO NOT damage the ignition coil perimeter seal.

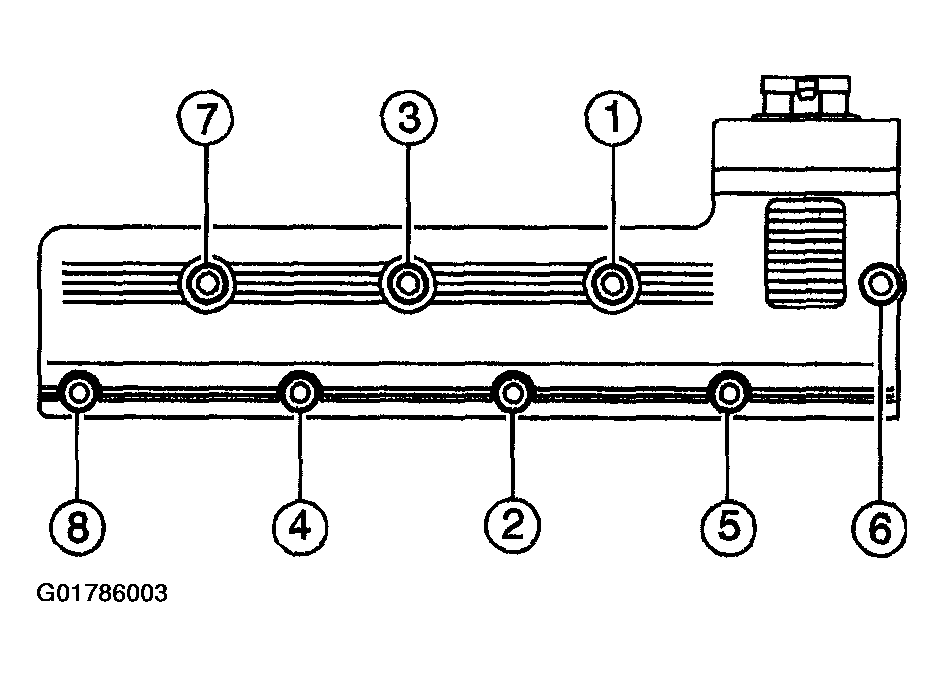

Install the ignition coil assembly bolts in sequence.

Fig 5: Identifying Ignition Coil Assembly Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the ignition coil assembly bolts to 9 N.m (80 lb in)
