Connector Identification

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1 - Fig 5 .

Fig 1: Identifying Sensing & Diagnostic Module (SDM) Connector Terminals

G99H23975

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Passenger-side Air Bag Module Connector Terminals

G98H09278

Courtesy of GENERAL MOTORS CORP.

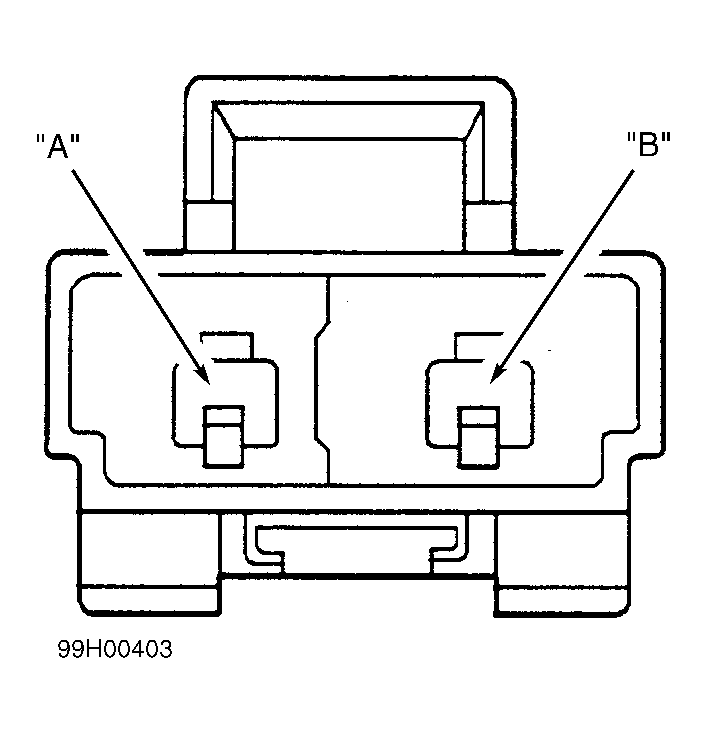

Fig 3: Identifying SIR Coil Connector Terminals

G99H00403

Courtesy of GENERAL MOTORS CORP.

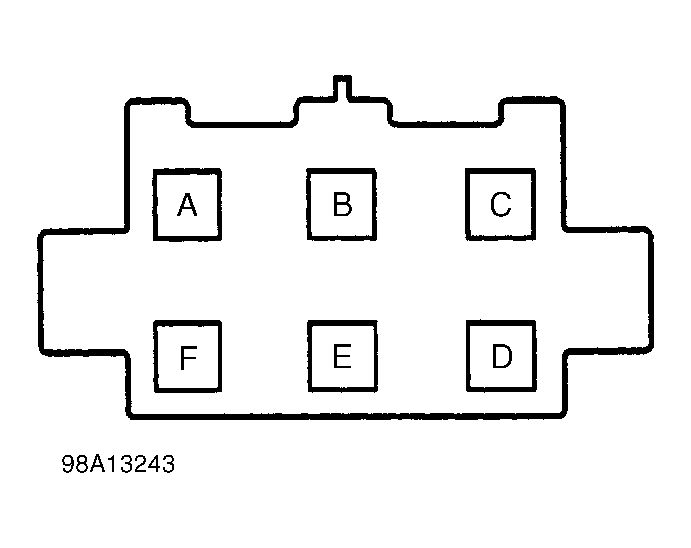

Fig 4: Identifying Side Impact Air Bag Module/seat Belt Pretensioner Connector Terminals

G98A13243

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Side Impact Sensor (SIS) Connector Terminals

G99J00405

Courtesy of GENERAL MOTORS CORP.
