SUNLOAD Sensor: Installation

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Secure the sensor to the defroster grille. Connect the electrical connector. Install the windshield defroster grille by snapping into place.

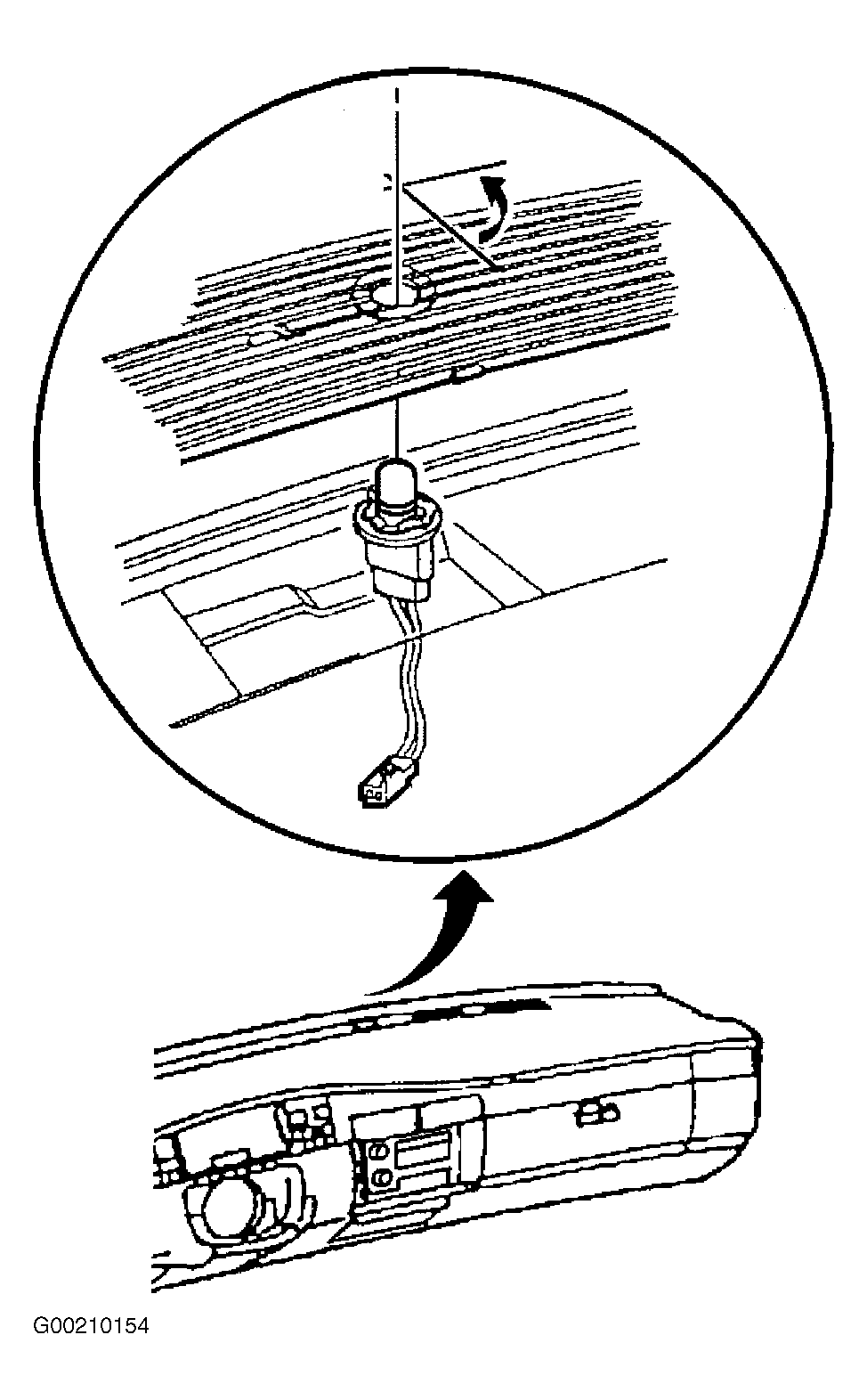

Fig 1: Removing & Installing Sun Load Sensor
G00210154Courtesy of GENERAL MOTORS CORP.
