HVAC Control Processor: Installation
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

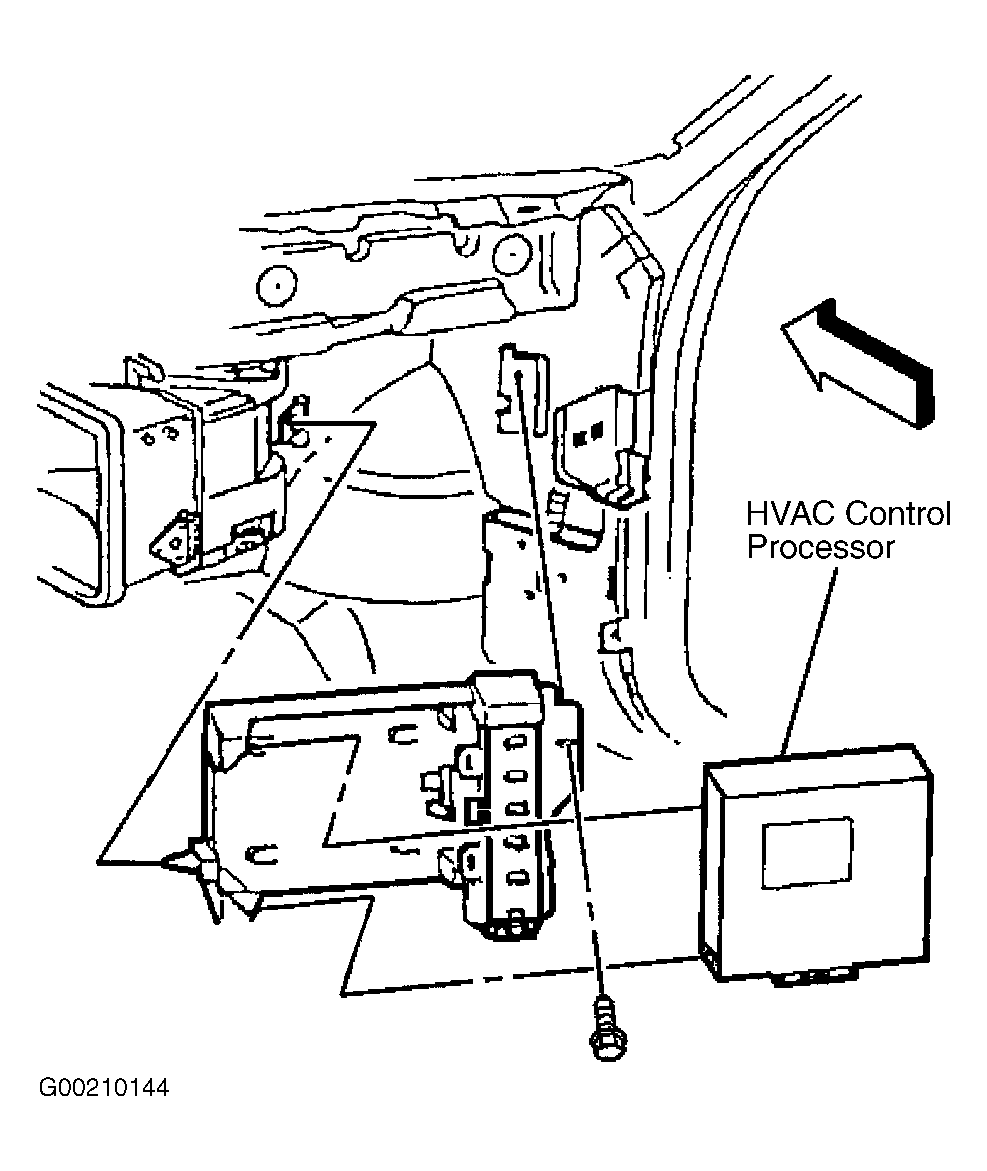

Install the processor. Connect the vacuum and electrical connectors to the processor. Install the storage compartment and the right insulator panel. Connect the negative battery cable. Recalibrate the actuators. See RE-CALIBRATING ACTUATORS under ADJUSTMENTS.
