Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Disconnect the upper door speaker electrical connector from the door harness.
  3. Remove the upper door speaker / grille assembly by gently prying the assembly from the molding.

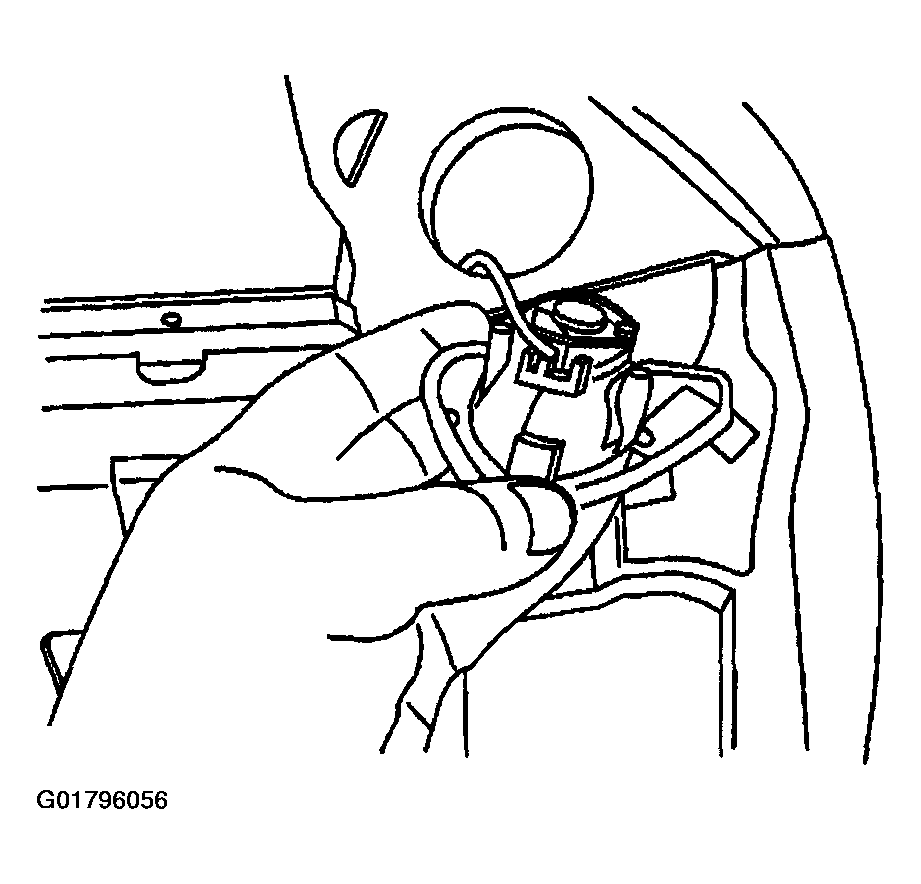

    Fig 1: View Of Front Upper Speaker
    G01796056Courtesy of GENERAL MOTORS CORP.
