Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

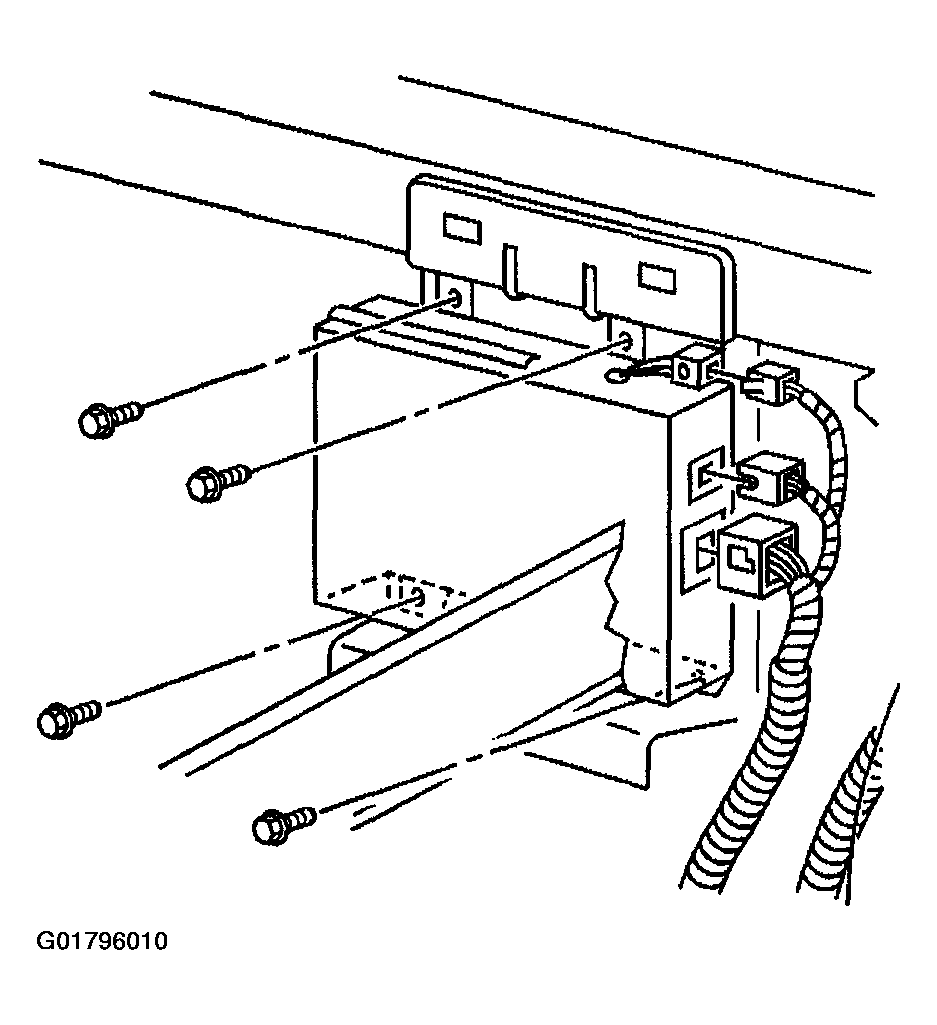

Fig 1: Removing Radio Amplifier

Courtesy of GENERAL MOTORS CORP.

Remove the radio amplifier connectors from the radio amplifier.
Remove the fasteners retaining the radio amplifier.
Remove the radio amplifier from the vehicle.
