Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat shoulder belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .
  2. Pull out on the sail panel to disengage the retainers.
  3. Remove the sail panel.

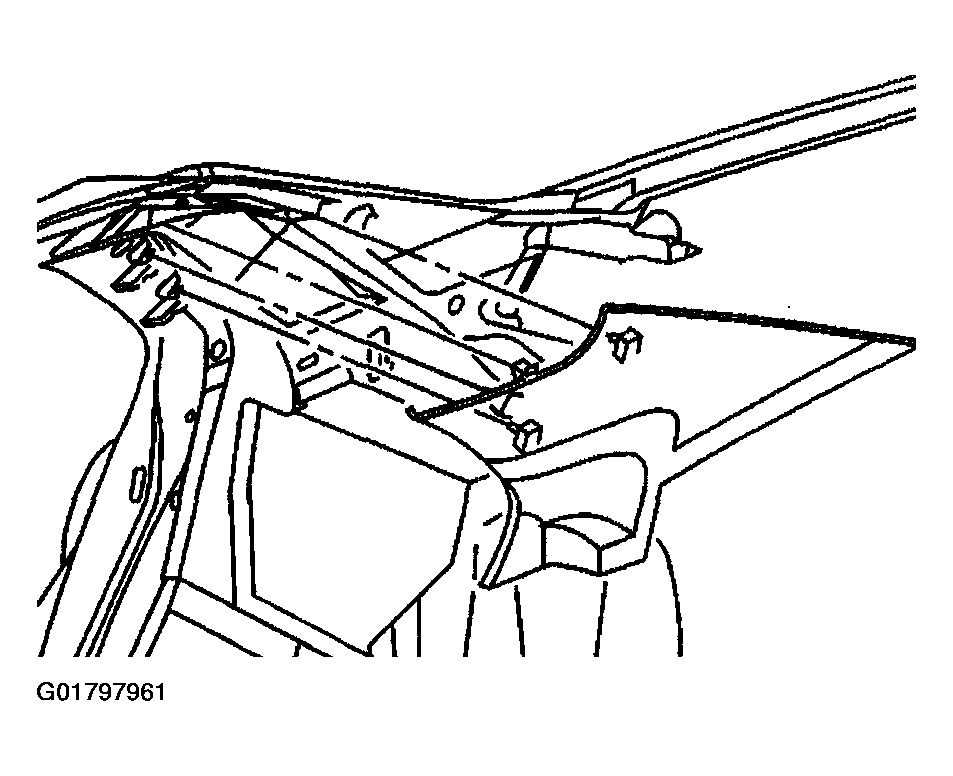

    Fig 1: Removing Sail Panel & Retainers
    G01797961Courtesy of GENERAL MOTORS CORP.
